wall mounted ethylene gas detector c2h4 analyzer monitor alarm for cold store fruit ripening
This product has been added to 37 people'scarts.
- Pre-Order Available (Estimated ±15 Day Delivery)
- 7 day unit replacement guarantee(Video Unboxing Required)
- Including shipping costs, sent by Supplyinx.com
- Pick up at a supplyinx.com collection point is possible
- 24/7Customer service
Description
Ethylene Gas Detector C₂H₄ adalah perangkat monitoring dan alarm deteksi gas etilen yang dirancang untuk penggunaan di cold storage, ruang pematangan buah, serta fasilitas penyimpanan hasil pertanian. Alat ini mendeteksi konsentrasi gas etilen secara real-time untuk mendukung proses fruit ripening (pematangan buah) dengan aman dan efisien. Dengan desain wall-mounted, alat ini mudah dipasang dan digunakan untuk pemantauan berkelanjutan.
Spesifikasi Utama
-
Jenis Gas: Ethylene (C₂H₄)
-
Metode Deteksi: Sensor elektro-kimia presisi tinggi
-
Instalasi: Wall-mounted, mudah dipasang
-
Fitur:
-
Monitoring real-time konsentrasi gas C₂H₄
-
Alarm otomatis saat konsentrasi melebihi ambang batas
-
Tampilan digital dengan indikator jelas
-
Output sinyal standar (RS485 / 4-20mA) untuk integrasi sistem kontrol
-
-
Power Supply: AC / DC tergantung model
-
Ketahanan: Housing kokoh, tahan lingkungan industri
Pengaplikasian
-
Cold storage – pemantauan gas etilen dalam gudang penyimpanan buah
-
Fruit ripening rooms – kontrol pematangan pisang, mangga, tomat, dsb.
-
Pertanian & distribusi hasil panen – menjaga kualitas & umur simpan
-
Industri makanan & logistik – manajemen supply chain produk segar
√ High precision sensor from UK
√ LCD display in English
√ Calendar and clock real time display
√ Sound and light alarms
√ High & low alarm points
√ Monitor c2h4 concentration
√ AC110-220V power supply
√ Relay output control
√ 4-20mA or RS485 output signal
√ Easy install and operation
√ Explosion proof,water and dust proof
√ One year warranty
1. LCD display with real-time;
2. Detect with natural diffusion mode;
3. AC110-220V supply, continuous monitor;
4. Imported sensitive sensor from UK;
5. Intelligent sound and light alarm design;
6. Display,detection and alarm are self-contained;
7. Can be output relay control signals AC220V;
8. Simple menu operation,high reliability;
9. Easy calibration, zero and alarm settings;
10.Metal shell, solid and durable, easy to install;
11.Optional Function: with 4-20mA/RS485 output signal to connected with controller DCS.
|

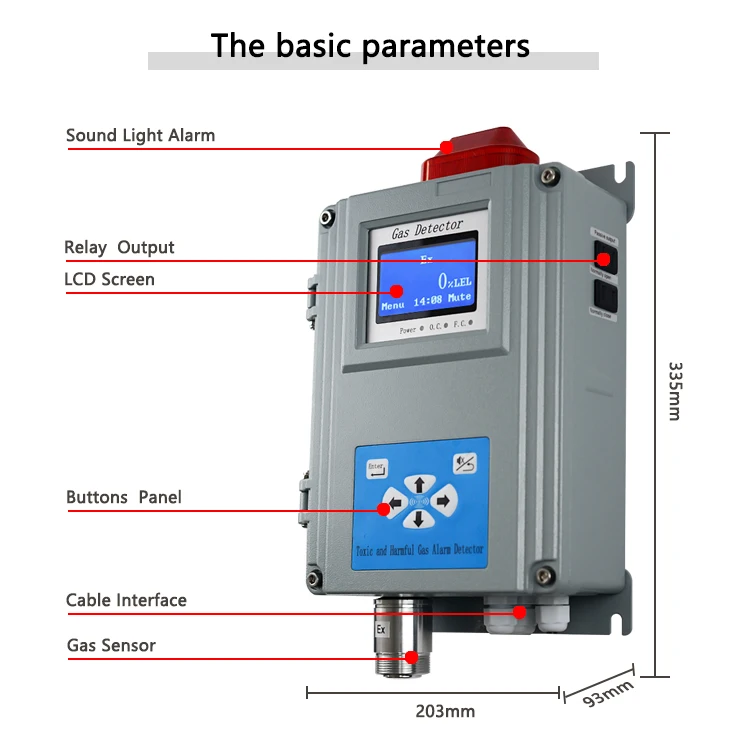

roduct Name:
|
Wall mounted c2h4 analyzer
|
|
Size and Weight:
|
203*335*94mm, about 3.8KG
|
|
Working voltage:
|
AC110-220V
|
|
Display:
|
LCD display, english description, english panel
|
|
Alarm:
|
Intelligent sound and Red light
|
|
Detect gas:
|
C2H4
|
|
Sensor type:
|
Electrochemistry
|
|
Measure range
|
0-100ppm, Support customization
|
|
Resolution:
|
1ppm
|
|
Reponse time:
|
≤30S
|
|
Output control:
|
relay output (AC220V5A), signal control (switch)
|
|
Working pattern:
|
Continuous operation, high and low alarm points (can be set)
|
|
Storage:
|
3000 alarm records
|
|
Optional function:
|
4-20mA/RS485 output signal
|
|
Working Environment:
|
Temperature:-20℃ – 50℃ Humidity: 15% ~ 90% RH (No condensation)
|
|
Function:
|
Detection and display O3 gas concentration in the working environment and alarm when the concentration exceed the alarm points
|
|
Package:
|
Carton package. English user manual,warranty card are inside
|
|
Installation method:
|
wall-mounted installation
|
