UNI-T UT372 Non-Contact Tachometers Target RPM Range 10~99999 MAX/MIN/AVG Test Distance 5~20cm USB Interface
UNI-T UT372 Non-Contact Tachometers Target RPM Range 10~99999 MAX/MIN/AVG Test Distance 5~20cm USB Interface - Image 2
UNI-T UT372 Non-Contact Tachometers Target RPM Range 10~99999 MAX/MIN/AVG Test Distance 5~20cm USB Interface - Image 3
UNI-T UT372 Non-Contact Tachometers Target RPM Range 10~99999 MAX/MIN/AVG Test Distance 5~20cm USB Interface - Image 4
UNI-T UT372 Non-Contact Tachometers Target RPM Range 10~99999 MAX/MIN/AVG Test Distance 5~20cm USB Interface - Image 5

UNI-T UT372 Non-Contact Tachometers Target RPM Range 10~99999 MAX/MIN/AVG Test Distance 5~20cm USB Interface

Rp5.138.311 Original price was: Rp5.138.311.Rp2.138.311Current price is: Rp2.138.311.
In Stock

This product has been added to 28 people'scarts.

Order on WhatsApp
In Stock
Add to wishlist
  • Pre-Order Available (Estimated ±15 Day Delivery)
  • 7 day unit replacement guarantee(Video Unboxing Required)
  • Including shipping costs, sent by Supplyinx.com
  • Pick up at a supplyinx.com collection point is possible
  • 24/7Customer service
SKU: 1005009456570144
Category:

Description

Deskripsi Produk

UNI-T UT372 Non-Contact Tachometer adalah alat ukur kecepatan putar (RPM) digital dengan teknologi non-kontak yang dirancang untuk pengujian cepat, akurat, dan efisien. Dengan rentang pengukuran luas 10 hingga 99.999 RPM, alat ini sangat andal untuk inspeksi mesin, motor, kipas, serta peralatan industri lainnya. Dilengkapi fungsi MAX/MIN/AVG serta USB interface, UT372 memudahkan pencatatan data dan analisis langsung ke komputer.

Fitur Utama

  • Rentang RPM Luas: 10 ~ 99.999 RPM.

  • Teknologi Non-Kontak: Mengukur kecepatan dengan sinar laser tanpa menyentuh objek.

  • Fungsi MAX/MIN/AVG: Menyediakan data pengukuran lengkap untuk analisis performa mesin.

  • Jarak Pengukuran 5 ~ 20 cm: Praktis digunakan pada berbagai kondisi lapangan.

  • USB Interface: Mendukung transfer data ke PC untuk dokumentasi dan analisis.

  • Layar LCD Digital: Tampilan hasil yang jelas, cepat, dan mudah dibaca.

  • Akurasi Tinggi: Stabil dan presisi untuk kebutuhan industri maupun penelitian.

Pengaplikasian

UNI-T UT372 Tachometer digunakan dalam berbagai bidang, antara lain:

  • Industri manufaktur untuk memantau kecepatan mesin produksi.

  • Perawatan dan inspeksi mesin motor, kipas, pompa, dan kompresor.

  • Quality Control (QC) untuk memastikan mesin berjalan sesuai standar.

  • Laboratorium teknik & riset dalam pengujian performa mesin atau motor listrik.

  • Pendidikan & pelatihan teknik sebagai alat ukur praktis di bidang mesin dan elektro.

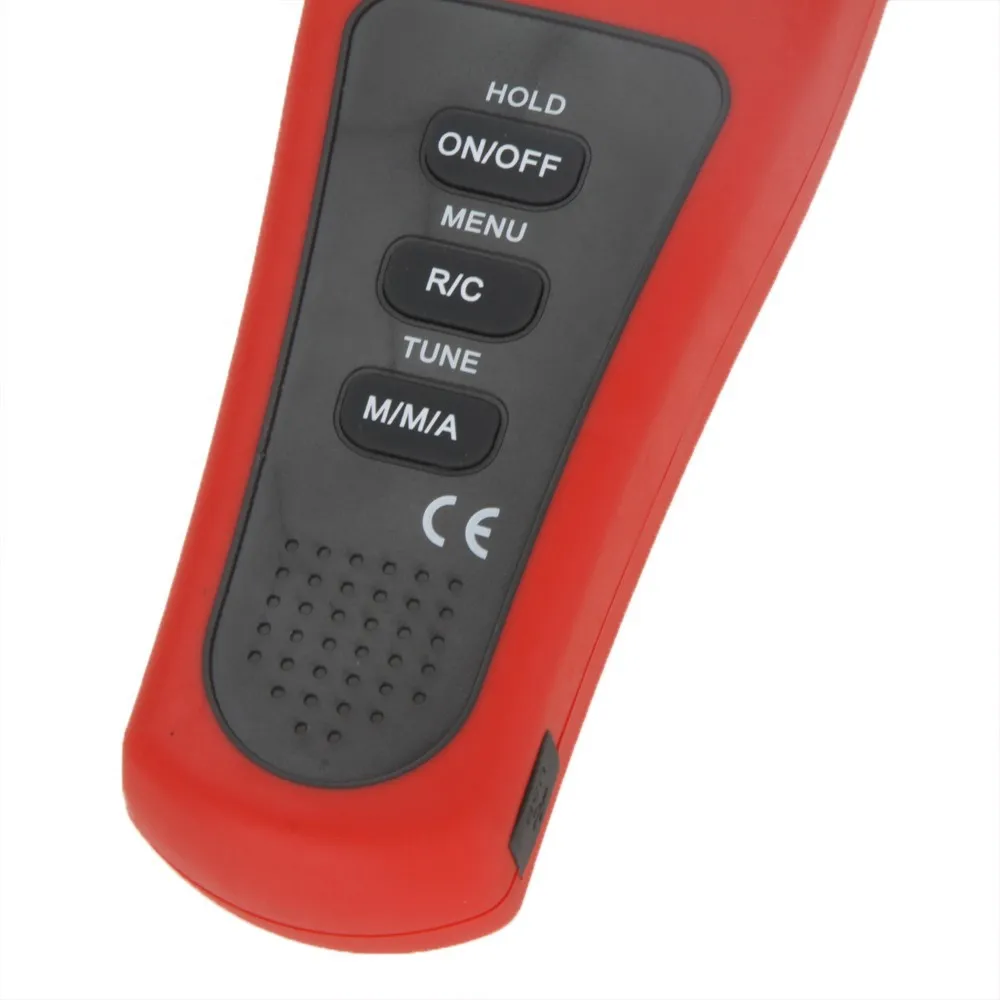

UT372 Tachometer

UT370 series non-contact tachometers measure rotating speed of shaft or disk with a point laser and reflective tape on the object being measured. These meters can output RPM or count readouts without interfering with the equipment being measured.

1. 5 digits LCD screen, RPM/count and time dual display

2. MAX/MIN/AVG/normal modes
3. Adjustable sampling rate (0.5-255s)
4. Auto power off (cancelable)
5. Optional (on/off) laser pointer
6. Clock and time setting
7. Data hold, low power consumption, continuous work for 40hrs


Specifications

Range

UT372

RPM range

10RPM~99RPM

±(0.03%)

100RPM~999RPM

±(0.04%＋2)

1000RPM~9999RPM

±(0.04%＋2)

10000RPM~99999RPM

±(0.04%＋2)

Counts

Range: 0~99999

√

Max. input frequency: 10kHz; bandwidth: 5%

Target distance

50mm~200mm

√

Features

Display count



100000

Data hold



√

Auto power off

Around 15 minutes

√

Low battery indication

≤4.8V

√

MAX/MIN/AVG mode



√

USB interface



√

General Characterisitics

Power

1.5V battery (LR6) X 4

Display

53mm x 41mm

Product color

Red and grey

Product net weight

100g

Product size

184mm x 56mm x 34mm

Standard accessories

Reflective tape, USB interface cable, PC software CD

Standard individual packing

Blister, English manual

Standard quantity per carton

20pcs

Standard carton measurement

420mm x 305mm x 370mm (0.047CBM per standard carton)

Standard carton gross weight

5kg
