Topographic Surveying 2” R1000 Total Station Price Surveying Instrument Hi Target Total Station Hi Target ZTS-421L10
This product has been added to 310 people'scarts.
- Pre-Order Available (Estimated ±15 Day Delivery)
- 7 day unit replacement guarantee(Video Unboxing Required)
- Including shipping costs, sent by Supplyinx.com
- Pick up at a supplyinx.com collection point is possible
- 24/7Customer service
Description
Hi-Target ZTS-421L10 adalah total station profesional dengan akurasi sudut 2 detik dan kemampuan pengukuran reflectorless hingga 1000 m (R1000). Instrumen ini dirancang khusus untuk pekerjaan topografi, konstruksi, dan pemetaan infrastruktur, dengan tampilan layar yang jelas, antarmuka ramah pengguna, serta fitur modern untuk efisiensi kerja di lapangan.
Spesifikasi Utama
-
Akurasi Sudut: ±2″
-
Jarak Tanpa Prisma (Reflectorless): hingga 1000 m (R1000)
-
Jarak dengan Prisma: hingga 5000 m
-
Optik: Pembesaran 30×, fokus minimum 1,5 m
-
Layar: LCD ganda, user-friendly interface
-
Memori: Internal + slot USB eksternal
-
Komunikasi: USB, RS-232, Bluetooth (opsional)
-
Fitur Tambahan: E-bubble, kompensator dual-axis, multilingual interface
-
Daya: Baterai Li-ion isi ulang, durasi ±8–10 jam
-
Ketahanan: IP66 tahan air & debu, tahan jatuh ±2 m
Pengaplikasian
-
Topographic survey dengan presisi tinggi
-
Setting-out konstruksi (jalan, gedung, jembatan)
-
Pengukuran batas lahan & properti
-
Pemetaan infrastruktur di area urban maupun medan sulit
Colorful display
|
Hi Target New Optical Structure Design Reflectorless 1000m Color Screen ZTS421L10 Total Station
|
|
|
|
Angle Measurement
|
|
|
|
Measurement Method:
|
Absolute Encoding
|
|
|
Minimum Readout:
|
1″
|
|
|
Accuracy
|
2″
|
|
|
Distance Measurement (with Reflector)
|
|
|
|
Single prism (General/Good Atmosphere)
|
5000m/6000m
|
|
|
Accuracy (Fine/Quick/Tracking)
|
2mm + 2ppm
|
|
|
Measuring Time (Repeat/Tracking)
|
0.5s/0.3s
|
|
|
Distance Measurement (Reflectorless)
|
|
|
|
Range (The target is Kodak white board with reflect rate of 90%)
|
1000M
|
|
|
Accuracy (It may change according to the different reflector conditions)
|
3mm+2ppm
|
|
|
Measuring Time
|
1s
|
|
|
Telescope
|
|
|
|
Magnification
|
30X
|
|
|
Field of View
|
1°30′ (2.7m at 100m)
|
|
|
Minimum Focusing Distance
|
1.5m
|
|
|
Reticle
|
Light up
|
|
|
Compensator
|
|
|
|
System
|
Dual-axis liquid tilt sensor
|
|
|
Working Range
|
±3′
|
|
|
Setting Accuracy
|
1″
|
|
|
Communication
|
|
|
|
Interface
|
Standard RS232
|
|
|
Internal Data Memory
|
Approx. 20,000 Points/Standard USB flash drive
|
|
|
Wireless communication
|
Bluetooth
|
|
|
Operation
|
|
|
|
Operation system
|
English Real-time Operating System
|
|
|

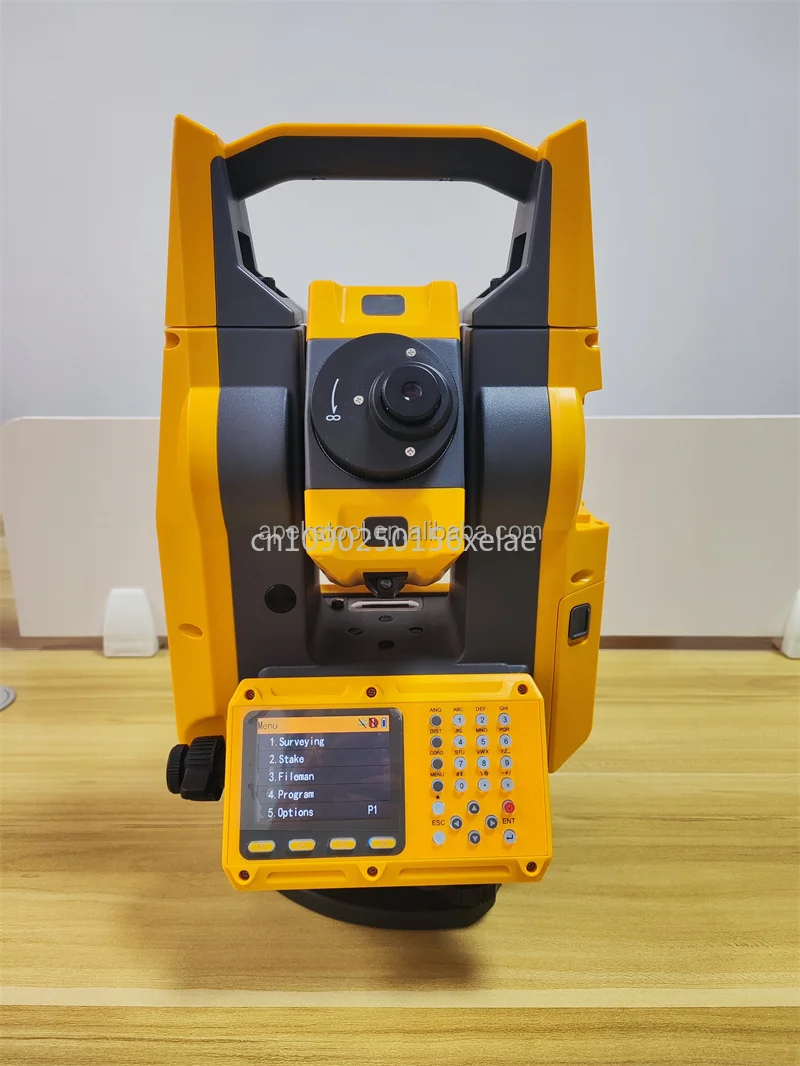

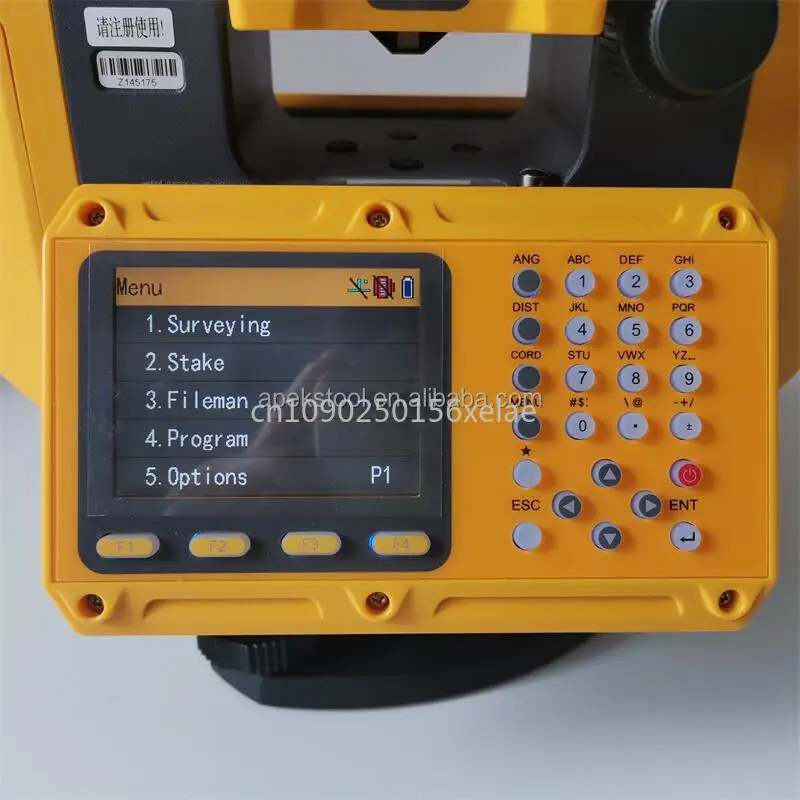

Display
|
2.8-inch and 240*320 pixels high-brightness color display
|
|
|
Keyboard
|
2 sides Alphanumeric backlit crystal keyboard
|
|
|
Laser Plummet
|
|
|
|
Type
|
Laser point, 4 brightness levels adjustment / Optical plummet (optional)
|
|
|
Power Supply
|
|
|
|

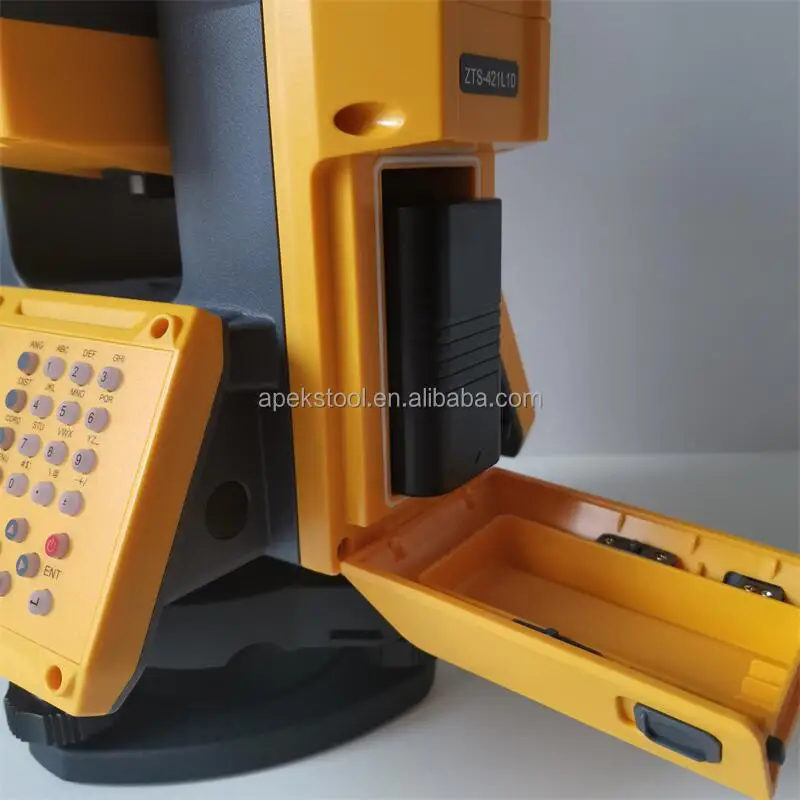

Battery Type
|
Rechargeable high-energy lithium battery (Type-C for direct charging)
|
|
|
Voltage/Capacity
|
7.4v, 3000mAh
|
|
|
Operating Time
|
18-hour (30-second measurement of new battery with 25°C), 36-hour continuous angle measuring
|
|
|
Measuring Times
|
Approx. 30000 times
|
|
|
Environmental
|
|
|
|
Operating Temperature
|
-20ºC ~+50ºC( -4ºF to +122ºF)
|
|
|
Storage Temperature
|
-40ºC ~+70ºC(-40ºF to +158ºF)
|
|
|
Temperature and Air Pressure Input
|
Automatic sensor
|
|
|
Dust&Water Proof (IEC60529 Standard)/Humidity
|
IP55
|
|
