TOOLTOP ET15C 256×192 Thermal Imaging Camera 3.5inch Industrial IR Camera Replaceable 18650 Battery PCB Underfloor Heat Inspect

Rp5.077.747 – Rp5.575.694Price range: Rp5.077.747 through Rp5.575.694
In Stock
Order on WhatsApp
Add to wishlist
  • Pre-Order Available (Estimated ±15 Day Delivery)
  • 7 day unit replacement guarantee(Video Unboxing Required)
  • Including shipping costs, sent by Supplyinx.com
  • Pick up at a supplyinx.com collection point is possible
  • 24/7Customer service
SKU: 1005008676634196
Category:

Description

Deskripsi Produk

TOOLTOP ET15C Thermal Imaging Camera adalah kamera inframerah industri dengan resolusi 256×192 piksel yang dirancang untuk inspeksi teknis secara presisi. Dilengkapi layar 3.5 inci beresolusi tinggi dan baterai 18650 yang dapat diganti, perangkat ini memberikan fleksibilitas serta kemudahan penggunaan di berbagai kondisi kerja. Kamera ini sangat cocok untuk mendeteksi panas berlebih, kebocoran energi, maupun inspeksi komponen elektronik dan bangunan.

Spesifikasi Teknis

  • Model: ET15C

  • Resolusi IR: 256 x 192 piksel

  • Layar: 3.5 inci full color display

  • Rentang suhu: -20 °C hingga +550 °C

  • Akurasi pengukuran: ±2 °C atau ±2%

  • Palet warna: beberapa mode pilihan (iron, rainbow, grayscale, dll.)

  • Penyimpanan: kartu microSD (opsional)

  • Baterai: 18650 lithium, dapat diganti (replaceable)

  • Waktu operasi: 4–6 jam per pengisian penuh

  • Antarmuka: USB untuk pengisian daya dan transfer data

  • Material housing: ABS + karet pelindung, tahan benturan

  • Aksesori standar: baterai, kabel USB, tas pelindung, manual

Aplikasi

Kamera thermal ini dapat digunakan dalam berbagai kebutuhan industri maupun teknis, antara lain:

  • Inspeksi listrik dan PCB untuk mendeteksi komponen panas berlebih.

  • Pemeriksaan instalasi HVAC, pipa, dan kebocoran energi.

  • Deteksi panas pada sistem lantai pemanas (underfloor heating).

  • Monitoring peralatan mekanikal dan motor industri.

  • Pekerjaan konstruksi, bangunan, dan inspeksi isolasi.

Note:

1.In order to correct non-uniformity, a mechanical control calibration plate is installed in front of the thermal imaging detector, which will be calibrated about every 10 seconds to ensure more accurate measurements. This is a thermal imaging detector undergoing calibration work, which usually experiences a lag of about 1-3 seconds. This is a normal phenomenon, so please don’t worry.



2.PC Software Download: http://doctuchuang.eirbio.cn/FR02E_EN/IR-DMM.zip



3.For PCB circuit board inspection, it is recommended to buy the version containing a macro lens. Macro lenses are only suitable for close-up observation.In other situations, please remove the lens; otherwise, the images will become blurry.





Features:

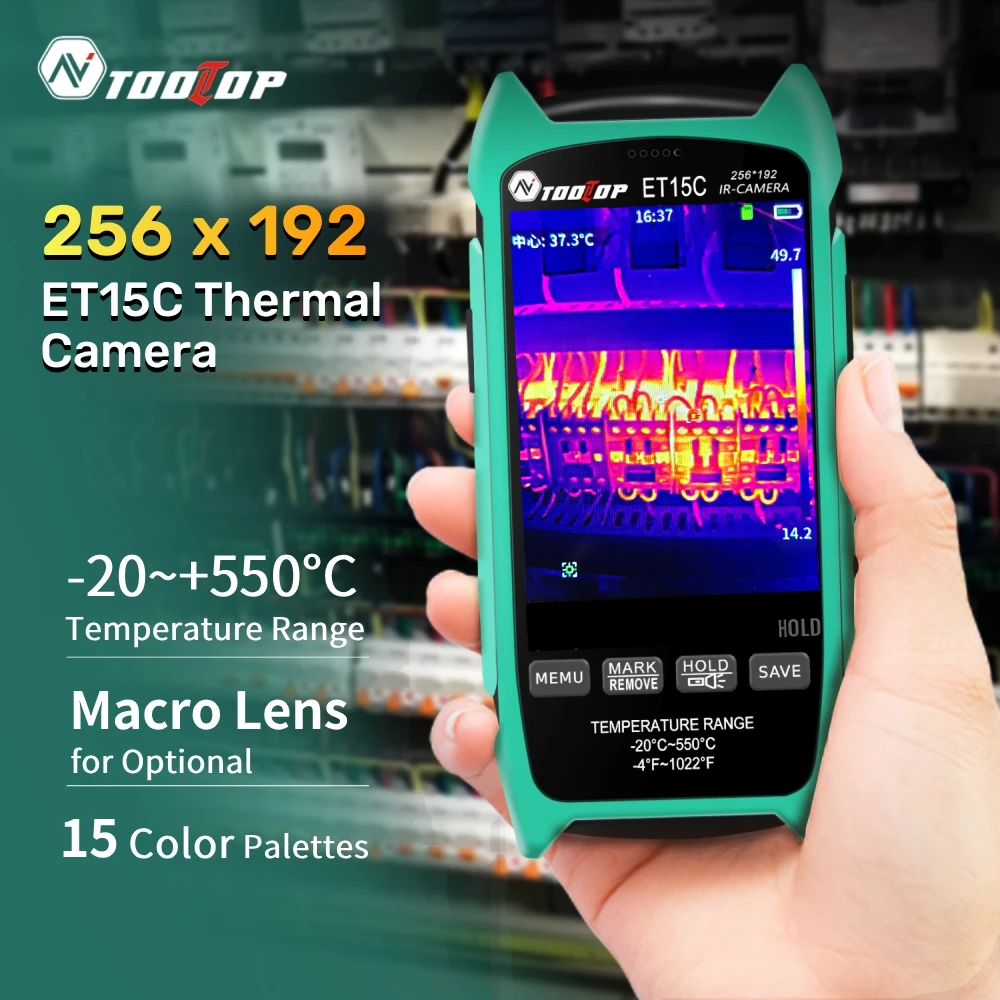

Industrial-grade Thermal Camera

– 256×192 resolution 25Hz thermal imaging sensor

– suitable for: underfloor heating leaks, HVAC maintenance, power system inspections, electronic repairs, and industrial inspect.

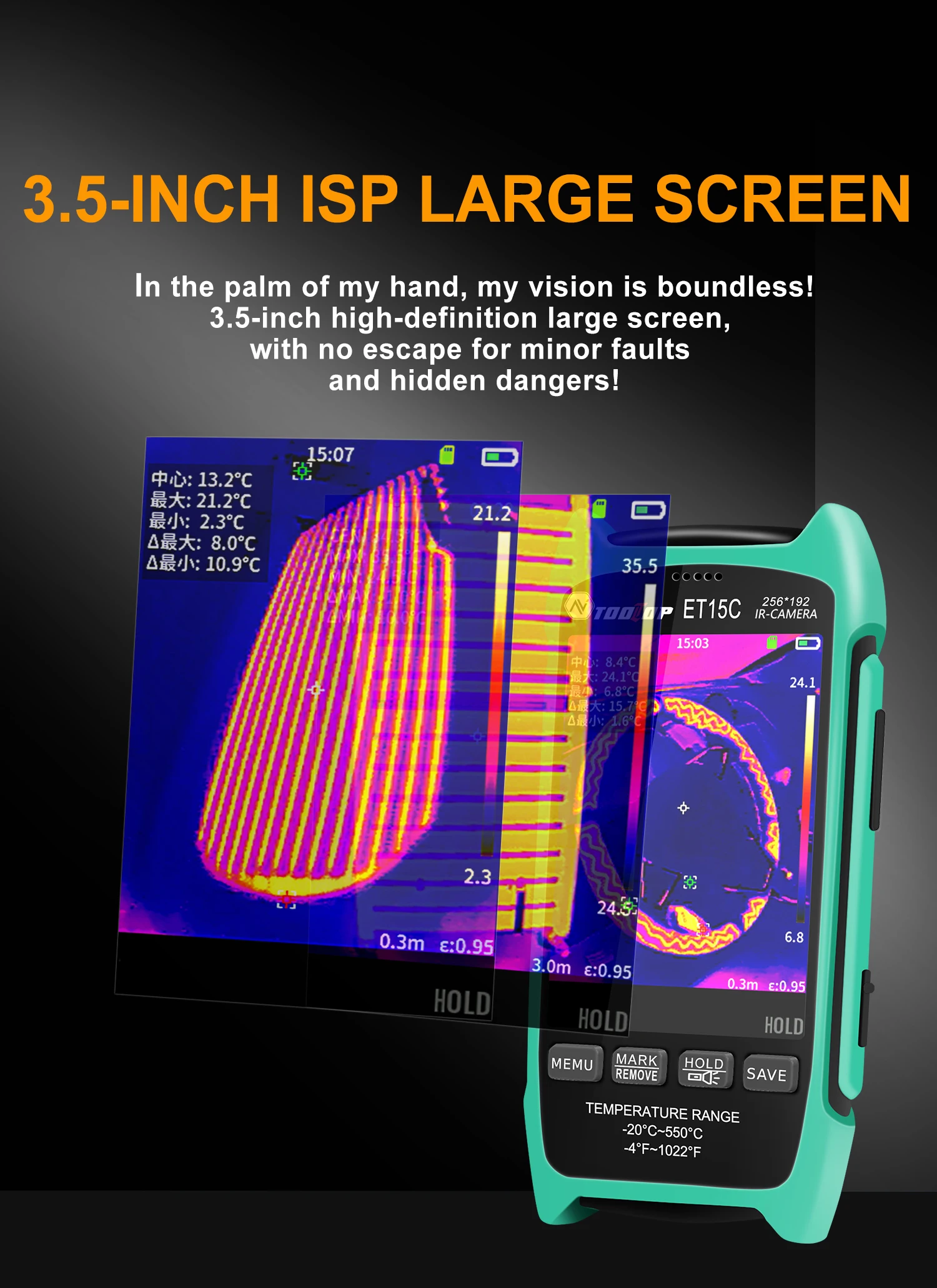

Clear Display with Rich Color Options

– 3.5 inches large IPS screen with a resolution of 320×480

– 15 selectable color palettes, easily switching by long pressing the side button



Optional Macro Lens

captures small details as clear as 1mm x 1mm, ideal for smartphone repairs and PCB mainboard inspections.



Available in 11 languages

Including Chinese, English, German, Russian, French, Spanish, Portuguese, Korean, Japanese, Italian, and Polish, catering to global users.



Strong Battery Life and Convenient Charging

Powered by a detachable 18650 lithium battery with a runtime of up to 8 hours, reliable USB charging.

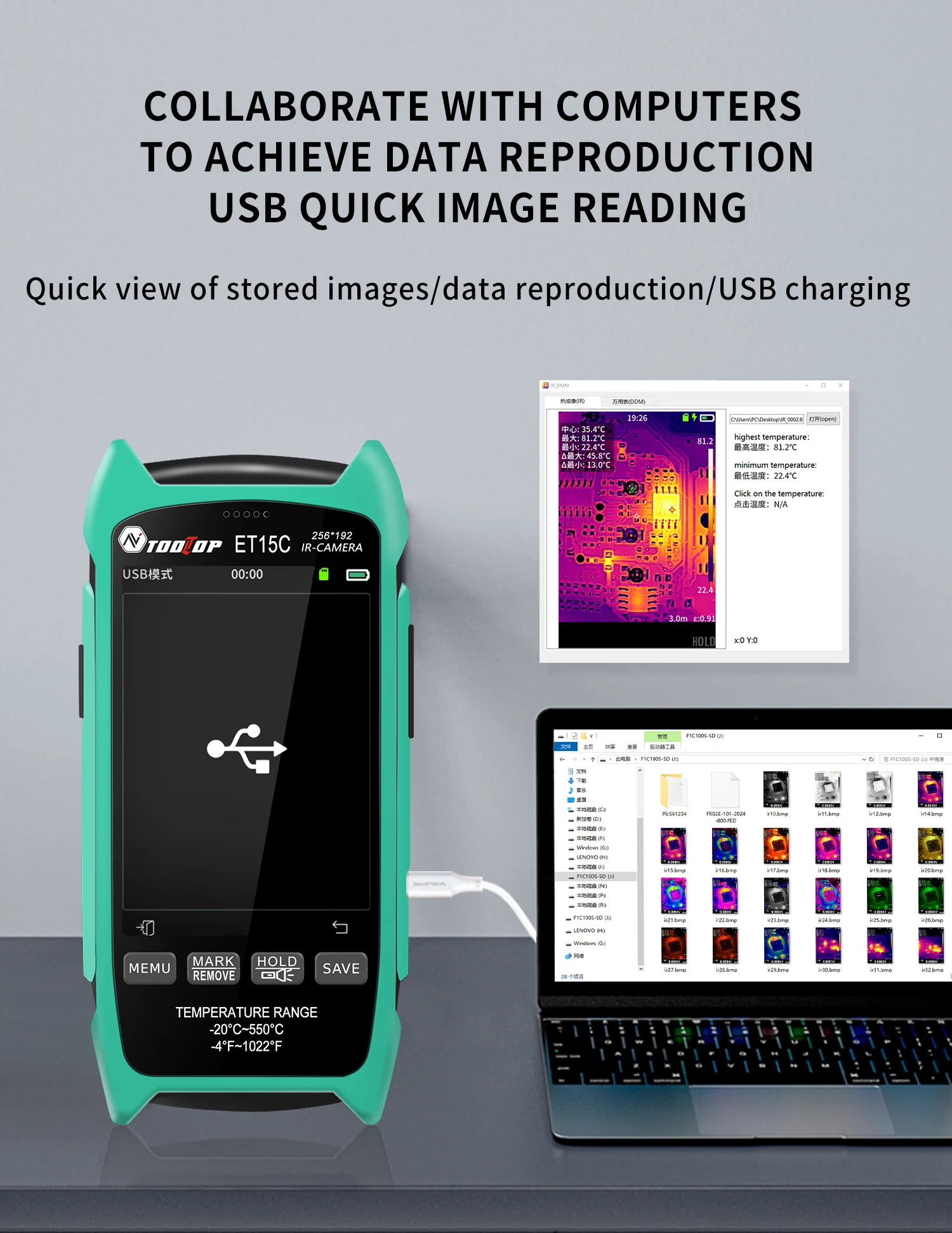

PC Software Support

Can transfer and analysis the screen shot of the thermal image



Specifications:



Thermal imaging parameters

Sensor: Vanadium oxide (VOx)

Image capture frequency:25Hz

Thermal imaging pixels:256×192

Display image resolution:427 x 320

Field of View (FOV):50.0°(H) × 37.2°(V)

Emissivity:0.1 – 0.99 adjustable,(0.95 by default)

Temperature range:-20℃ ~ +550℃

Gain mode: Auto Gain

Color palette: White Heat, Black Heat, Fusion 1, Rainbow, Fusion 2, Iron Red 1, Iron Red 2, Dark Brown, Color 1, Color 2, Ice Fire, Rain, Green Heat, Red Heat, Deep Blue

Accuracy:±2℃or±2%

Measurement resolution:0.1℃/0.1℉

Macro Lens: Optional, no need to install, move the macro lens left and right during use.

Macro lens working distance: about 5cm, (please use normal thermal imaging when the distance exceeds this, otherwise the image will become blurred)





Other parameters of the equipment

Display type:3.5-inch 320 * 480 resolution

USB interface: Type-C USB

Storage capacity: includes a 4G TF card and supports a maximum of 64G TF card (not included).

Battery Type: Detachable 18650 Lithium-ion battery

Storage temperature:-20～60℃（-4～140℉）

Operating temperature:0～50℃（32～122℉）

Operating Humidity:＜85%RH （ non-condensing ）

Size: 134 mm * 64mm * 28 mm

Weight: Host weight: 198g (including battery), packaging weight: 390g





Package List:

1 x Thermal Camera

1 x USB Cable

1 x English Manual

1 x Storage Bag

1 x Macro Lens (for optional)
