TIG315P Ac Dc Pulse Welding Machine Aluminium Welder 380 Volts 3phase
TIG315P Ac Dc Pulse Welding Machine Aluminium Welder 380 Volts 3phase - Image 2
TIG315P Ac Dc Pulse Welding Machine Aluminium Welder 380 Volts 3phase - Image 3
TIG315P Ac Dc Pulse Welding Machine Aluminium Welder 380 Volts 3phase - Image 4
TIG315P Ac Dc Pulse Welding Machine Aluminium Welder 380 Volts 3phase - Image 5

TIG315P Ac Dc Pulse Welding Machine Aluminium Welder 380 Volts 3phase

Rp51.755.667
In Stock

This product has been added to 62 people'scarts.

Order on WhatsApp
In Stock
Add to wishlist
  • Pre-Order Available (Estimated ±15 Day Delivery)
  • 7 day unit replacement guarantee(Video Unboxing Required)
  • Including shipping costs, sent by Supplyinx.com
  • Pick up at a supplyinx.com collection point is possible
  • 24/7Customer service
SKU: 1005007307247685
Category:

Description

  • Origin: Mainland China
  • Certification: CE
  • Material / Metal Processed: Carbon Steel, Stainless Steel, Aluminium Alloy
  • Rated Input Voltage: 380 V
  • Max. Load Power Capacity: 12.0KVA
  • Output Polarity: AC/DC TIG
  • Rated Output Current (TIG): 315 A
  • Rated Output Voltage (TIG): 22 V
  • Welding Current/Voltage Range: 20-315A
  • Condition: New
  • Place of Origin: Zhejiang, China
  • Brand Name: DNACY
  • Arc Current: 20-315A
  • Pulse Frequency: 0.5-100Hz
  • Rated Duty Cycle: 280A@40%
  • Dimensions: 66X36X56.5CM
  • Usage: TIG DC,TIG AC ,PULSE and MMA welding
  • Voltage: 380V
  • Certification: CE
  • Warranty: 1 Year
  • After-sales Service Provided: Online support, Free spare parts, Video technical support
  • Key Selling Points: Easy aluminium welding
  • Weight (KG): 32 KG
  • Local Service Location: None
  • Showroom Location: None
  • Marketing Type: New Product 2021
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Input Power: 380V,50HZ
  • Process: TIG ,TIG pulse,and MMA
  • Output type: AC and DC
  • Output current: 20-315A

Products Description




TIG315P ac dc pulse welding machine aluminium welder 380 volts 3phase

Destination
Shipping solution
Business terms
Transportation time
Shipping cost
Custom Duty
USA
Ocean + Express (terminal delivery by UPS or FEDEX)
DDP
25-40days since ship sail
165.00USD
Free
EUROPE
Rail + Express (terminal delivery by UPS )
DDP
25-40 days since train rolls
165.00USD
Free
Kindly please leave your message and delivery address when you place the order.

We will delivery the goods by  China Railway Express (TO EUROPE) /Maston Fast Ship (TO USA).






TIG AC DC PULSE WELIDNG MACHINE TIG315P ,excellent for aluminum welding

1.This machine is great for AC/DC TIG, AC/DC Pulsed TIG, MMA / Suitable For Aluminum and Stainless Steel Welding / Suitable for 6013,7018,6010 Electrode

2.Inverter IGBT module technology.

3. Remote Control for Trigger / Foot-pedal optional.
4. Compact size , machine only net weight 23.00KGS,very easy to remove.
5.Great performance for aluminum welding.Please check the video
6.Foot pedal is available.

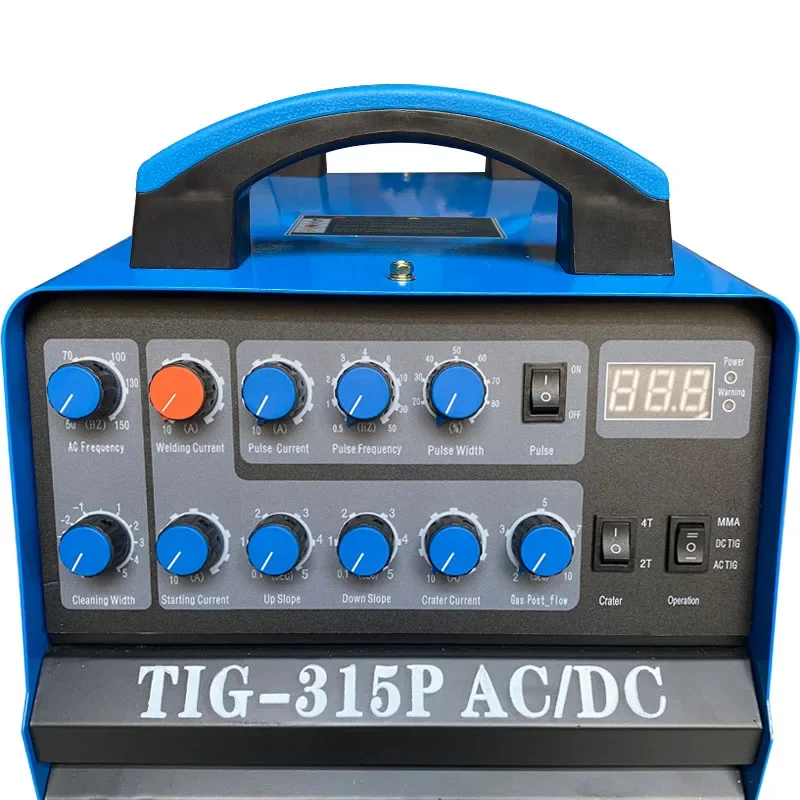

1.AC TIG mode

2.DC TIG mode
3.MMA mode
4. 4T conttrol
5.2T control
6.Pulse welding
7. pulse (yes or no)
8.Pulse current
9.Current up

10.Starting current
11.Gas Pre flow
12.BIG Adjust knob
13.Welding current
14.Pulse frequency
15.Pulse width
16.
Cleaning width

17.Current down
18.Crator current

19.Gas post flow
20.AC frequency


TIG250P TECHNICAL SPECIFICATION



Input voltage
3-phase AC380V
Pulse width ratio
20%-80%
Rated output current
315A
Down slope time
0.1-5.0S
Rated output voltage
22.0V
Crater arc current
10-315A
Rated input power
12.0KW
Post flow time
5s-10s
No-load voltage
65V
Cleaning width
25%-75%
Display Current range
10-315A
AC frequency
50-150HZ
Start arc current
10-315A
Duty cycle
280A@40%@40°C
Up-Slope time
0.1-5S
Efficiency
83%
Pulse current
10-315A
Protection
IP21S
Welding Current
10-315A
Machine net size
470X260X440MM
Pulse frequency
0.5-100HZ
Machine Gross Weight
26.0KGS
Our Advantages

BIG POWER, UPDATED TECHNOLOGY



HIGH GRADE MATERIAL


Product packaging

Compact size and light weight

Compare traditional ac dc tig machine, our model is produced in small size and light weight,easy to move

What the package inlcude

One piece of TIG315P

Quality WP-26 water cooler tig torch,total length 4M
electroder holder with cable,
earth clamp with cable,
gas hose
FAQ



1.what is input power of this machine ?

it is 380V,3 phase,50-60HZ

2.Does this machine has high frequency starter?
Yes

3.Does it has both AC and DC output?
yes,it has ac tig,dc tig,ac tig pulse,dc tig pulse

4.Does it has manual electrode welding?
yes,it is both tig and mma process.

5.What the tungsten size usually be taken?
it usually take 1.6/2.0/2.4/3.6mm

6.Does this machine comes with foot pedal?
NO,it does not.This machine works with foot pedal, foot pedal is optional at purchase.

7.The tig is air cooled or water cooled?
It is water cooler tig torch

8.What is about warranty?
This machine offers 12 month warranty.We offer 24 months warranty too,please contact us for details.

9.What we do if the machine give problem during warranty?
For the machine got problem without human-factor during warranty time,we supply spares at free.
All machines are quality checked and produced reliable.In case it get problem,we will send repair video and diagram.The machines are designed friendly to make repair.
For the machine out of its warranty time,we supply spares at it’s material cost.For more details,please contact us at free.
Company Profile

Golden supplier for welding machines, MMA,TIG,MIG,PLASMA CUTTER

WE,Dancy Machine company are a professional manufacturer engaged in the research, development, production, sale and service of welding machine incldue of MMA,MIG,TIG,PLASMA CUTER and its related machines.

In recent years, our company have introduced a series of advanced equipment to marketing,like MIG pulse,AC DC TIG,LGK-80,MMA pulse,etc.
We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.

FAQ
1.Are you a trader or manufacturer?
We are professional manufacturer and trading office together, supply inverter welding machines and its related
supplies.Meanwhile,we source welding consumables and replacement parts upon customer inquire it.
2.Are you happy to work with small size customers?
Whenever you run a big business or own a small shop,you are welcome to contact us.Nearly 40% of our customers are new or run a
small size business while first contact,they become better year after year.Now,we cooperate with together smoothly,win-win
together! Any effort has its reward.
3.Why choose DANCY as our partner ?

Our message is “quality is all for business”.With us your business is in safety,your money is safety.
We offer 24 hours pre-sales and after-sales service.
SERVICE -R&D-HIGH QUALTITY-MANAGEMENT.You will know more about our factory by click “OUR ADVANGTAGE” to check
4.Are you competitive suppliers? How to distinguish supplier competitive or not? Can I have qualified products on affordable pric
• We are your golden supplier certified by ALIBABA company,trusted competitive supplier,offer excellent products with perfect service.
• We have our own excellent sales staff ,Senior engineers,skilled worker and advanced equipment,big warehouse and clean building.Big sales quantity and updated technical spread our administration cost,that help to reduce our cost.
5.Can you help to source products for me from other suppliers? Do you offer inspect service?
• Yes,of course.We can.
• If custoemr inquire it,our experienced purchasing staff and senior engineer are happy to offer a completed source and inspect
service,guarantee a better source job.
6. What is Warranty?
Usually,we offer 12-24 months warranty for each shipment since the shipping date.
7.What is delivery time?
For first order of new customer, it is35-45 workdays.
For repeated order,it is 25-35workdays.It is negotiable
