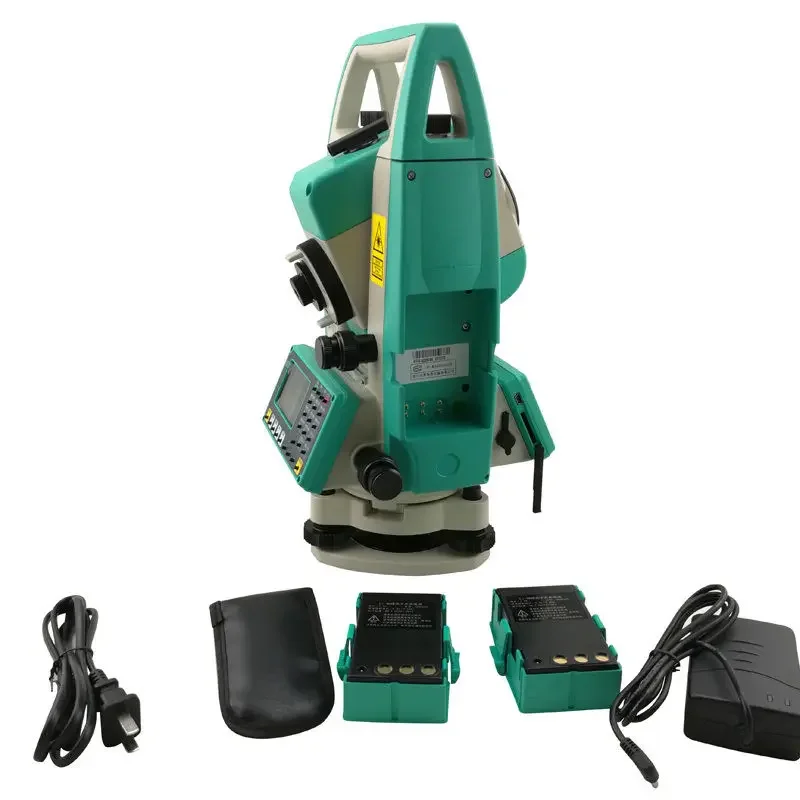

Ruide RTS-822R4 Advanced Total Station

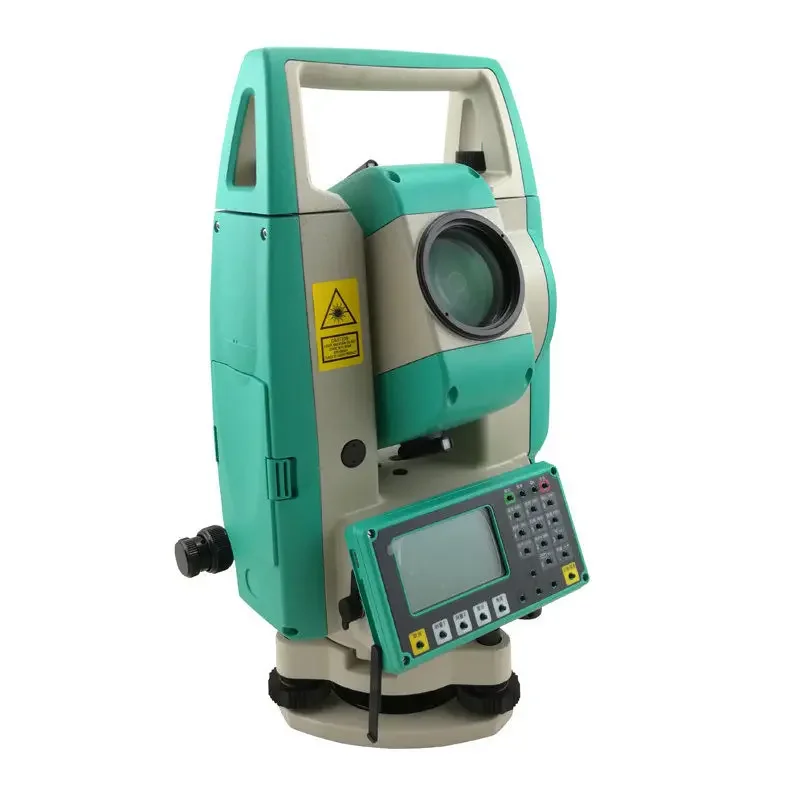

Ruide RTS-822R4 Advanced Total Station - Image 2

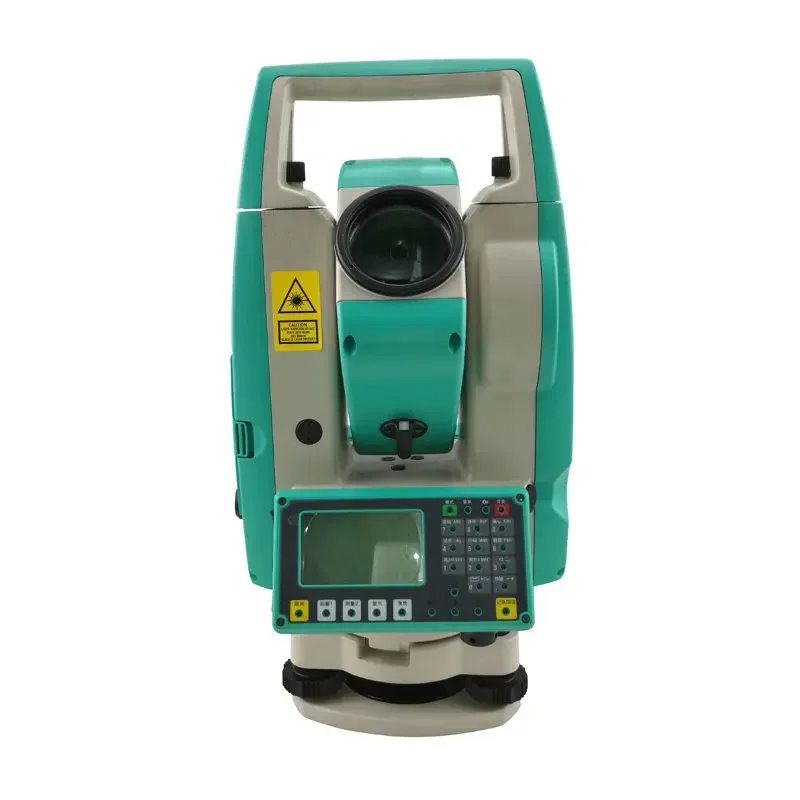

Ruide RTS-822R4 Advanced Total Station - Image 3

Ruide RTS-822R4 Advanced Total Station

Rp60.505.170 Original price was: Rp60.505.170.Rp55.505.170Current price is: Rp55.505.170.
In Stock
Order on WhatsApp
In Stock
Add to wishlist
  • Pre-Order Available (Estimated ±15 Day Delivery)
  • 7 day unit replacement guarantee(Video Unboxing Required)
  • Including shipping costs, sent by Supplyinx.com
  • Pick up at a supplyinx.com collection point is possible
  • 24/7Customer service
SKU: 1005009212216327
Category:

Description

Ruide RTS-822R4 adalah total station advanced class dengan akurasi tinggi, dirancang untuk pekerjaan survei profesional di bidang topografi, geodesi, maupun konstruksi. Dengan kemampuan reflectorless EDM hingga 400 m serta prisma hingga 5000 m, alat ini menghadirkan performa stabil, cepat, dan efisien. Desainnya kokoh, mudah digunakan, dan dilengkapi layar ganda untuk mendukung produktivitas di lapangan.

Spesifikasi Utama

  • Akurasi Sudut: ±2”

  • Jarak Tanpa Prisma: hingga 400 m

  • Jarak dengan Prisma: hingga 5000 m

  • Optik: Pembesaran 30×, fokus minimum 1,5 m

  • Layar: LCD ganda, antarmuka intuitif

  • Memori: Internal + USB eksternal

  • Komunikasi: USB, RS-232, Bluetooth (opsional)

  • Fitur Tambahan: E-bubble, kompensator otomatis

  • Daya: Baterai Li-ion isi ulang, durasi kerja ±8–10 jam

  • Ketahanan: IP66 tahan debu & air, tahan jatuh ±2 m

Pengaplikasian

  • Survei topografi & geodesi presisi tinggi

  • Setting-out proyek sipil & konstruksi

  • Pengukuran batas lahan & properti

  • Pemetaan jalan, jembatan, & infrastruktur besar



Product Description:

Rui latest RTS-822R4, Prism 400m laser total station, absolute encoder, biaxial compensation; new high-precision temperature and pressure auto sensor automatically correct temperature, barometric pressure, saving measurement; simultaneously in each waterproof rubber ring structure waterproof, waterproof dust and moisture; card USB data transfer; increase laser point function, at same you can choose to add a laser point, more convenient to use.

RTS-822R3

Distance measurement

Single prism

Triangular prism

No prism

5.0km

5.0km

400m

Figures show

: 99999999.999 minimum: 1mm

Accuracy

2 2 ppm

Measuring

1.0 seconds ACCUTLOG track 0.5 seconds

Meteorological correction

Manual input / auto-sensing

Prism constant correction

input parameters automatically correct

Angle measurement

Goniometer

Angle measurement of absolute encoder

Code disc diameter

79mm

Minimum reading

0.1&x27;

Accuracy

2″

Detection method

Level disk: disk diameter vertical: Path

Telescope

Imaging

Positive

Barrel length

154mm

effective aperture of objective lens

Telephoto: 45mm Ranging: 50mm

Magnification

30 ×

FOV

1 ° 30 “

Resolution

1 “

Minimum focusing distance

1m

Automatic vertical compensator

System

biaxial electronic sensing compensation

Scope of work

± 3 &x27;

Accuracy

1 “

Vial

Vial

30 “/ 2mm

Circular level

8 &x27;/ 2mm

Optical Plummet

Imaging

Positive

Magnification

3 ×

range

0.5m ~ ?

FOV

5 °

Display section

Type

Double-sided, digital letter

Onboard battery

Power supply

Rechargeable nickel – hydrogen battery

Voltage

DC 6V

Continuous working

16HourHour

Size and weight

Size

160mm × 150mm × 340mm

Weight

5.4kg
