PLASMARGON Mig Welding Machine no gas Semi-automatic Welding Machine 3 in 1 MIG LIFT/TIG/MMA Inverter Synergy Welder with wire

Description





















If you receive any problems with the machine, please consult customer service to deal with, we will send you a replacement as soon as possible!

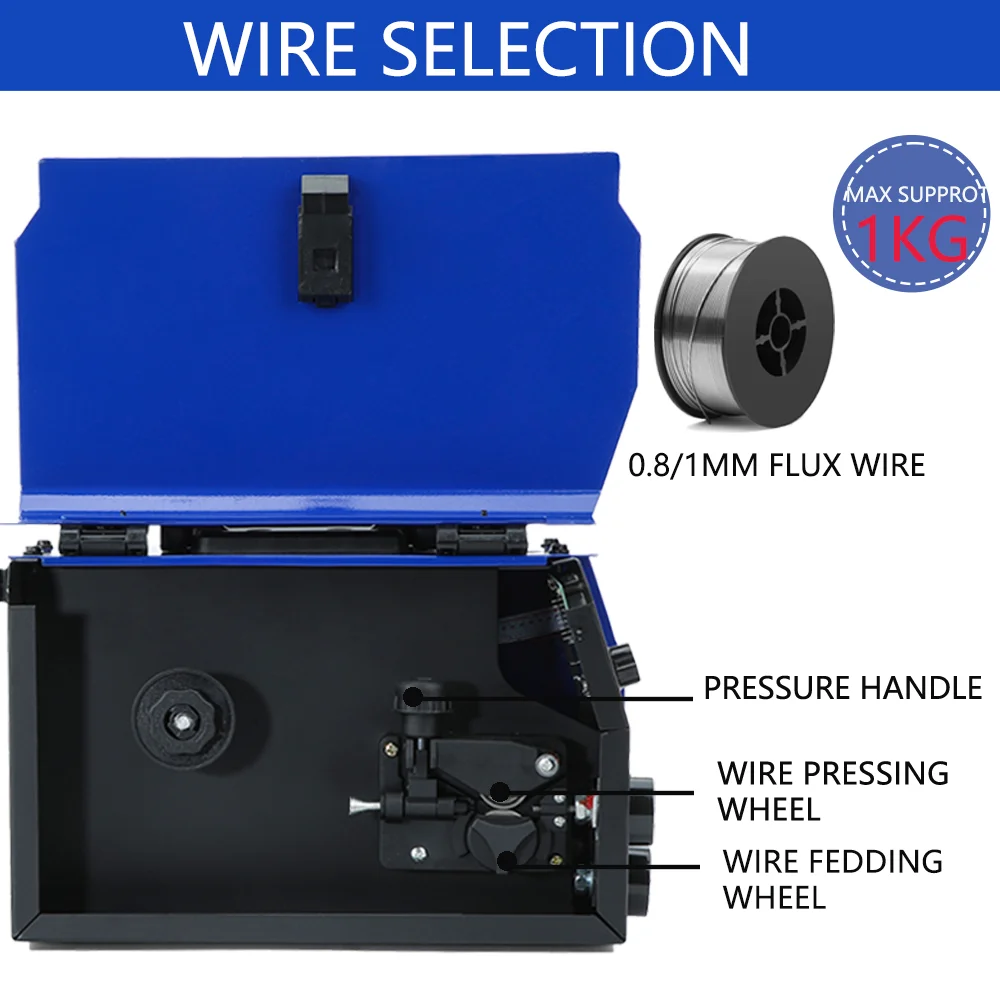

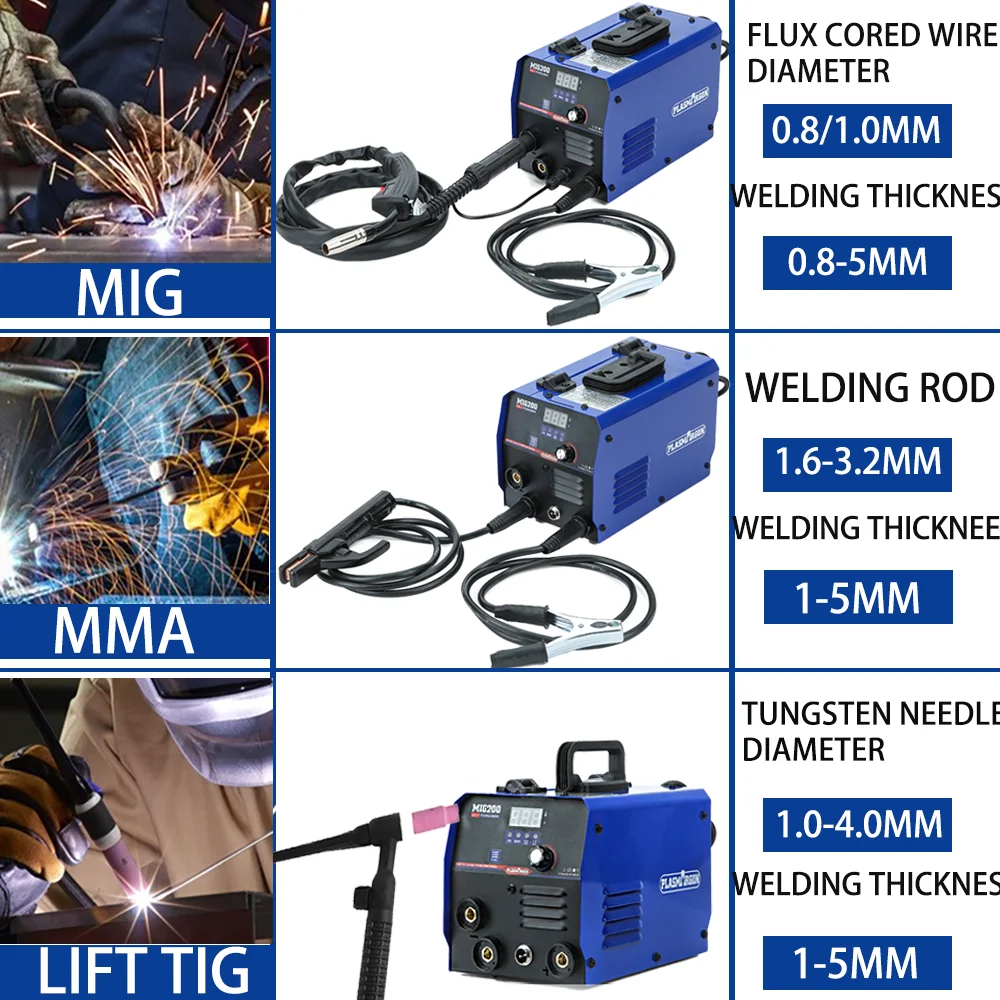

[MIG Welding wihout gas] Flux Core Wire (Gasless) welding. This welder can handle 2 lb rolls of wire 0.8mm~1.0mm Flux Core Wire/, with a maximum welding thickness of 3mm.

[LIFT TIG Welding] A variety of argon arc welding methods, spot welding and other methods.There is no requirement for the size of the tungsten needle, 1.6, 2.4, 3.2 and other diameters can be used.Lift TIG welding provide an easy arc start, stable current, minimum spatter, and good shaping.

[MMA/STICK Welding] Does not require any gas, requires welding rod. The easiest way to solder is to use a non-technical and DIY soldering, depending on the welding effect.For MMA, it is capable of welding E6010, E6011, E7014, and E7018 (3/32″-2.4 mm, 1/8″-3.2 mm), E6013 (1/16″-1.6 mm, 3/32″-2.4 mm, 1/8″-3.2 mm); for Lift TIG, it is capable of welding rod with thickness of 1/16″-1.6 mm, 3/32″-2.4 mm.

[IGBT inverter technology] current control, high quality,stable performance;Small-sized, light-weighed,easy to operate,economical,practical

[Wide application and portable]The wire feed welder is capable of welding all kinds of ferrous metals such as carbon steel, medium carbon steel, mild steel, stainless steel and cast iron. Only weighs 10.1 lbs, easy to carry with a handle or shoulder strap(included), very suitable for outdoor maintenance, farm, road equipment, and home DIY.

[Easy to operate] easy to adjust voltage and current, built-in anti-overheating device, properly relax the machine, and better protect the safety of welders.Contents all the nessecerry accessories,ready to be used.Whether you are a hobbyist, maker, small fabricator, or craftsman, choose the PLASMARGON MIG welder and explore your creativity.





Function：MIG/TIG/MMA(Stick) Welding

Voltage：220V or 110/220V±15%

Technology：IGBT&Inverter

Welding current range(A) :(MMA)20～200 A       ARC Welding thickness:1-5MM
Welding current range(A) :(TIG)20～200 A        LIFT TIG Welding thickness:1-MM
Welding voltage range(A) :(MIG)20～200A、IG Welding thickness:0.8-53MM

Input Power：2.7KVA/3.8KVA

MIG Voltage：14/19.5/14-21V

Duty Cycle：60%

No Load Voltage：59A

Weight:3.3KG

Dimension(LxWxH):375*245*285

Feeding Speed：1.5-14

Wire Diameter Avaliable:0.6/0.8/0.9/1MM

Efficiency：85%

Power Factor：0.75

Insulation Class：F

Protection Class：IP21S
