Outdoor Laser Range Sensor Time Of Flight TOF 1000m 500m Laser Rangefinder Module UART 600m Laser Distance Sensor For Lighthouse
Outdoor Laser Range Sensor Time Of Flight TOF 1000m 500m Laser Rangefinder Module UART 600m Laser Distance Sensor For Lighthouse - Image 2
Outdoor Laser Range Sensor Time Of Flight TOF 1000m 500m Laser Rangefinder Module UART 600m Laser Distance Sensor For Lighthouse - Image 3
Outdoor Laser Range Sensor Time Of Flight TOF 1000m 500m Laser Rangefinder Module UART 600m Laser Distance Sensor For Lighthouse - Image 4
Outdoor Laser Range Sensor Time Of Flight TOF 1000m 500m Laser Rangefinder Module UART 600m Laser Distance Sensor For Lighthouse - Image 5
Outdoor Laser Range Sensor Time Of Flight TOF 1000m 500m Laser Rangefinder Module UART 600m Laser Distance Sensor For Lighthouse - Image 6

Outdoor Laser Range Sensor Time Of Flight TOF 1000m 500m Laser Rangefinder Module UART 600m Laser Distance Sensor For Lighthouse

Rp8.638.908 Original price was: Rp8.638.908.Rp6.638.908Current price is: Rp6.638.908.
In Stock

This product has been added to 5 people'scarts.

Order on WhatsApp
In Stock
Add to wishlist
  • Pre-Order Available (Estimated ±15 Day Delivery)
  • 7 day unit replacement guarantee(Video Unboxing Required)
  • Including shipping costs, sent by Supplyinx.com
  • Pick up at a supplyinx.com collection point is possible
  • 24/7Customer service
SKU: 1005009337244751
Category:

Description




Laser Range Sensor TOF (Time of Flight) adalah modul sensor jarak berbasis laser dengan jangkauan pengukuran mulai dari 500m, 600m hingga 1000m. Didesain untuk aplikasi outdoor dengan presisi tinggi, sensor ini menggunakan teknologi TOF untuk mengukur jarak secara cepat, stabil, dan akurat. Dengan antarmuka komunikasi UART, modul ini mudah diintegrasikan ke berbagai sistem seperti lighthouse, robotika, pengukuran industri, hingga navigasi otomatis.

Spesifikasi Utama

  • Model: TOF Laser Range Sensor Module

  • Jarak Pengukuran: 500m / 600m / 1000m (opsional)

  • Akurasi: ±0.1–0.5 m (tergantung kondisi)

  • Teknologi: Time of Flight (TOF)

  • Output Data: UART / RS232 (opsional)

  • Kecepatan Respon: Real-time, <0.1 s

  • Power Supply: DC 5V – 12V

  • Lingkungan Kerja: Outdoor, tahan cahaya kuat & kondisi cuaca beragam

  • Dimensi Modul: Ringkas, mudah diintegrasikan

Pengaplikasian

  • Lighthouse system & navigasi luar ruang

  • Robotika & kendaraan tanpa awak (UAV/UGV)

  • Pengukuran jarak industri & konstruksi

  • Keamanan & sistem monitoring

  • Mapping & positioning outdoor

Products Description
Outdoor Laser Range Sensor Time of Flight TOF 1000m 500m Laser Rangefinder Module UART 600m Laser Distance Sensor for Lighthouse
Model
PTF-M1000
Measurement range
5~500m /600m/1000m
Measurement accuracy
+/-1m
Resolution
0.1m
Laser class
Class I/905nm
Power consumption
≤500mW
Size
27.8*26.4*13.8mm
Weight
13g
Voltage
3.3V
Output mode
Serial port asynchronous communication, UART
Working temperature
-20~50 鈩�
Working current
<50mA/150mA

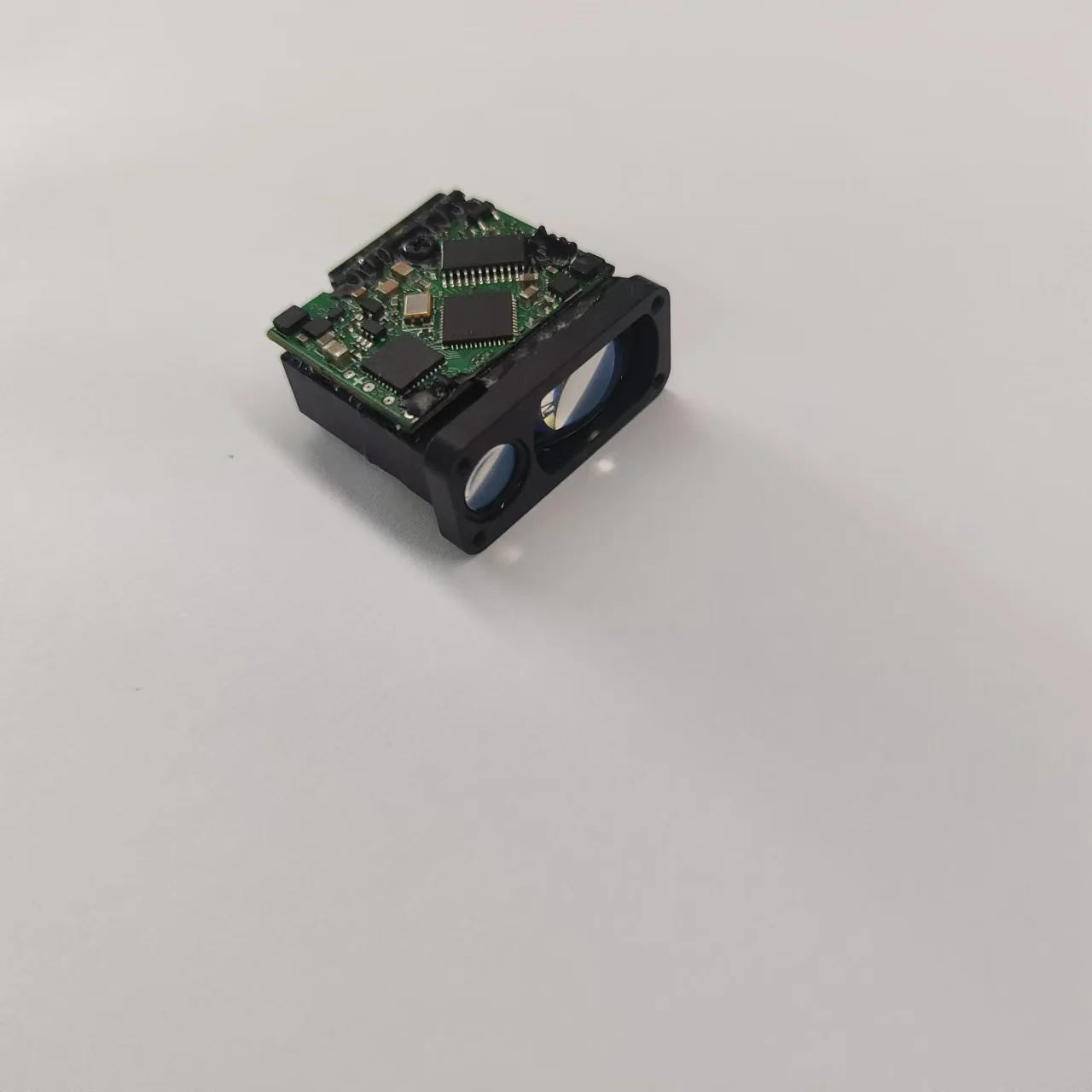

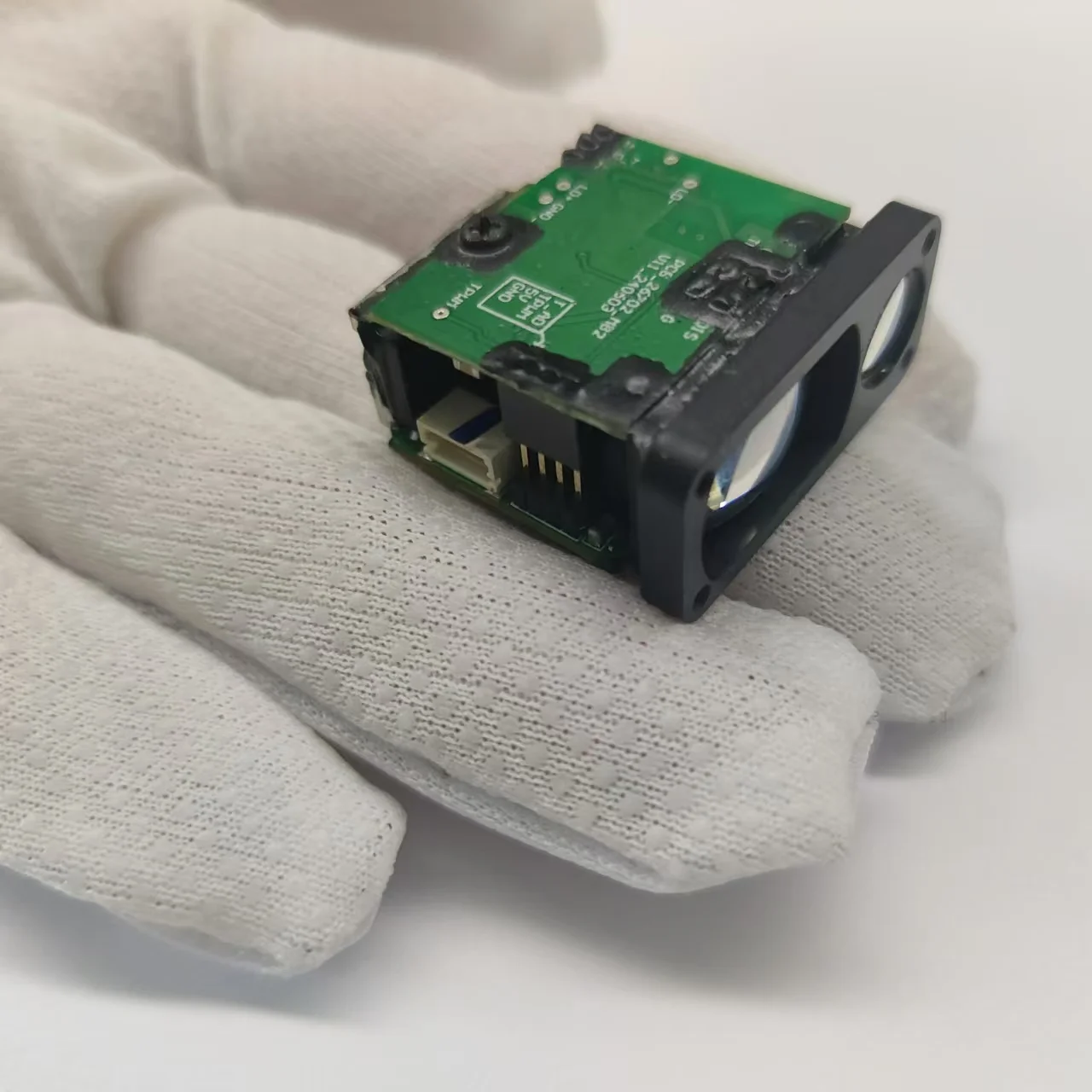

Details Images
Outdoor Laser Range Sensor Time of Flight TOF 1000m 500m Laser Rangefinder Module UART 600m Laser Distance Sensor for Lighthouse. 1000m laser rangefinder sensor could be used to monitor the distance between vehicles and obstacles in a parking lot, ensuring safety and optimizing space usage. The 1000m laser distance sensor would send data back to a central server, which could then be used to manage traffic flow and parking availability. This long range laser distance sensor can be integrated in night vision devices, drones, UAV sights, photoelectric pods, security monitoring, thermal imaging ranging , etc.
Contact Us to Get Samples!
Application
Laser rangefinder oem modules can be integrated into handheld thermal imagers and related infrared thermal imaging equipment to increase measurement capabilities. 1000m long distance, small size, spiral design for easy installation. Class 1 905nm laser, can be used outdoors without interference.
