Optical Plummet Total Station Gps Price Top Con Surveying Instrument Theodolite GM102 GM105 GM52 GM55 Optics Geodesic Survey
Optical Plummet Total Station Gps Price Top Con Surveying Instrument Theodolite GM102 GM105 GM52 GM55 Optics Geodesic Survey - Image 2
Optical Plummet Total Station Gps Price Top Con Surveying Instrument Theodolite GM102 GM105 GM52 GM55 Optics Geodesic Survey - Image 3
Optical Plummet Total Station Gps Price Top Con Surveying Instrument Theodolite GM102 GM105 GM52 GM55 Optics Geodesic Survey - Image 4
Optical Plummet Total Station Gps Price Top Con Surveying Instrument Theodolite GM102 GM105 GM52 GM55 Optics Geodesic Survey - Image 5
Optical Plummet Total Station Gps Price Top Con Surveying Instrument Theodolite GM102 GM105 GM52 GM55 Optics Geodesic Survey - Image 6

Optical Plummet Total Station Gps Price Top Con Surveying Instrument Theodolite GM102 GM105 GM52 GM55 Optics Geodesic Survey

Rp132.049.370
In Stock
Order on WhatsApp
Add to wishlist
  • Pre-Order Available (Estimated ±15 Day Delivery)
  • 7 day unit replacement guarantee(Video Unboxing Required)
  • Including shipping costs, sent by Supplyinx.com
  • Pick up at a supplyinx.com collection point is possible
  • 24/7Customer service
SKU: 1005009474514568
Category:

Description

  • Hign-concerned Chemical: None
  • DIY Supplies: Electrical
  • Origin: Mainland China
  • Place of Origin: Japan
  • Brand Name: Topcon
  • Model Number: GM52
  • IP Rating: ip66
  • Type: GPS Total Station
  • Magnification: 32X
  • Product Name: Topcon Total Station GM52
  • Min. Resolution Accuracy: 2"/5"
  • Min. Display: 1"/5"
  • Dual-axis compensator: Dual-axis liquid tilt sensor, working range: +6′
  • Prism EDM Range: 4,000 m
  • Prism EDM Accuracy: 1.5 mm + 2 ppm
  • Non-Prism Range: 500 m
  • Non-Prism Accuracy: 2.0 mm + 2 ppm(0.2 -200 m)
  • Measuring Time: Fine: 0.9 sec Rapid: 0.6 sec Tracking: 0.4 sec
  • Battery Operation: Up to 14 hours
Dear friends, welcome to my shop! Please forgive me if the reply is not timely due to time difference! The shipping cost on the AliExpress platform may not be accurate. Before placing an order, please send a message to customer service to get more discounts. Customer service will provide you with the fastest and cheapest logistics method! Welcome to add my Whatsapp: +86 18977076859. Our store operates in good faith, welcome to place orders at any time!

Product Description

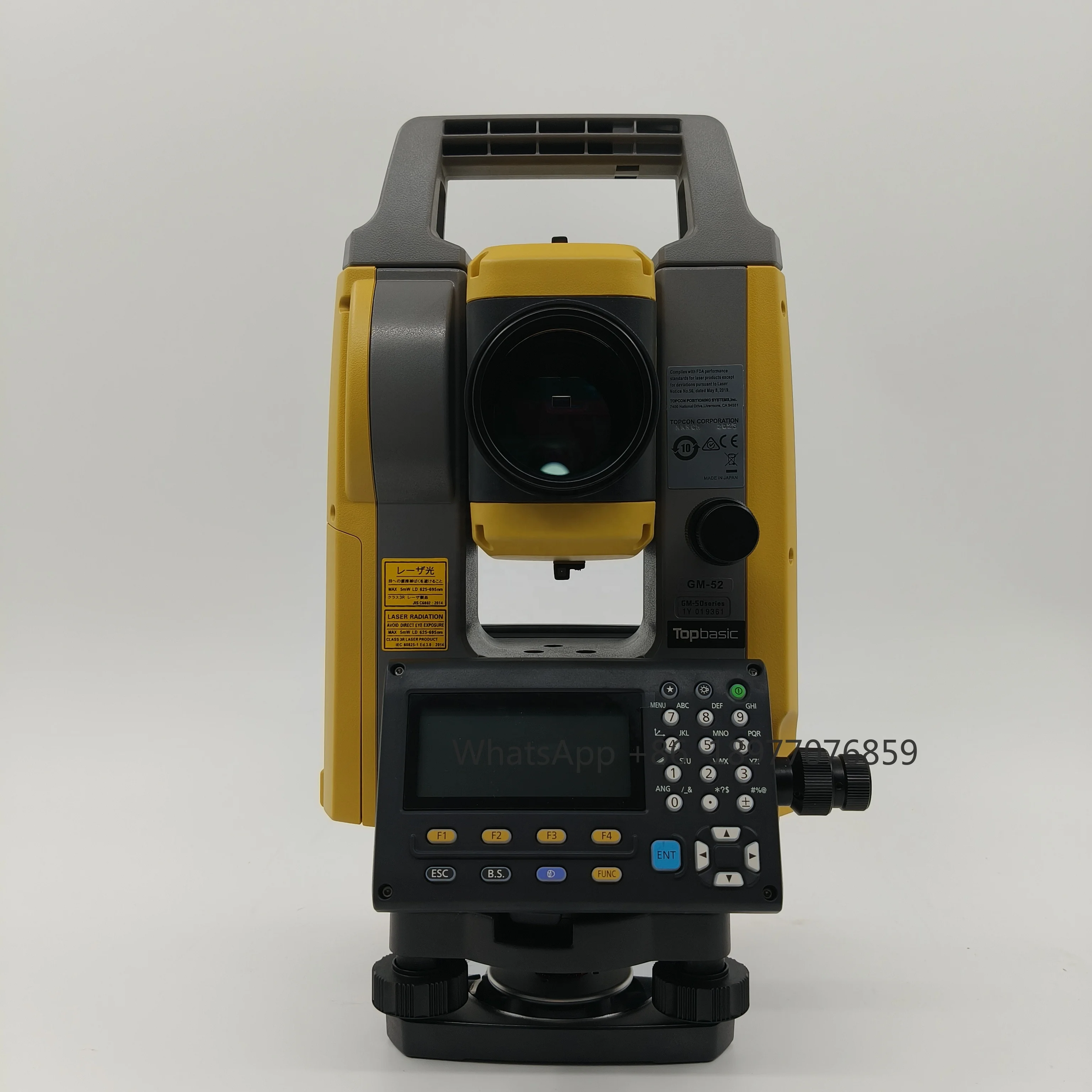

TOPCON TOTAL STATION GM52
Advanced Design With Superior Technology

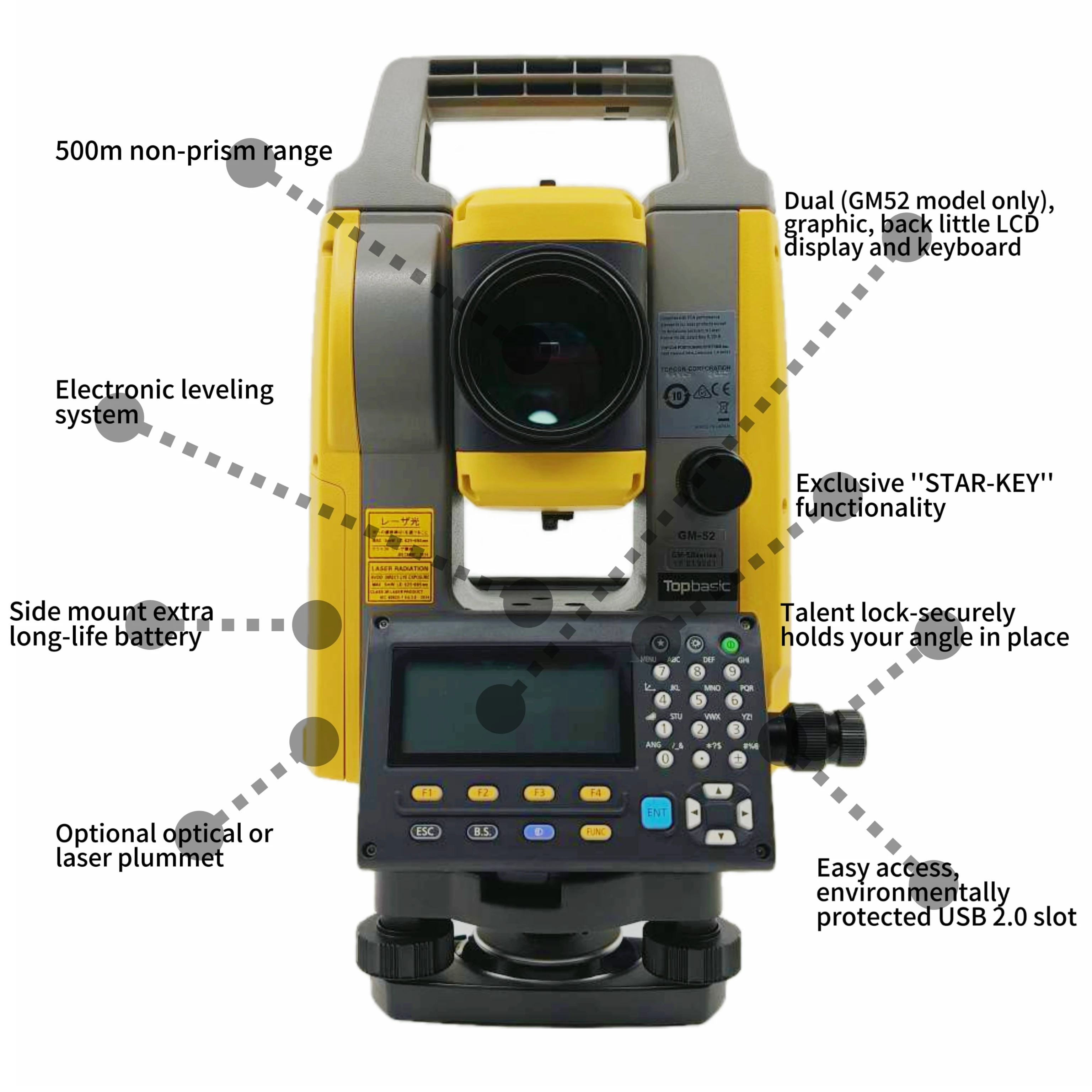

Reflectorless Total Stations
1. Fast and accurate new EDM

2. Bluetooth communications (optional)
3. Advanced angle accuracy
4. Long battery life – 14 hours
5. Rugged, waterproof design with lP66 rating
6. 500 m long-range reflectorless measurement
7. 50,000 point internal memory
Rugged, waterproof design

1. Waterproof/dustproof lP66 design handles the toughest environments

2. Magnesium-alloy housing providing stable angle accuracy

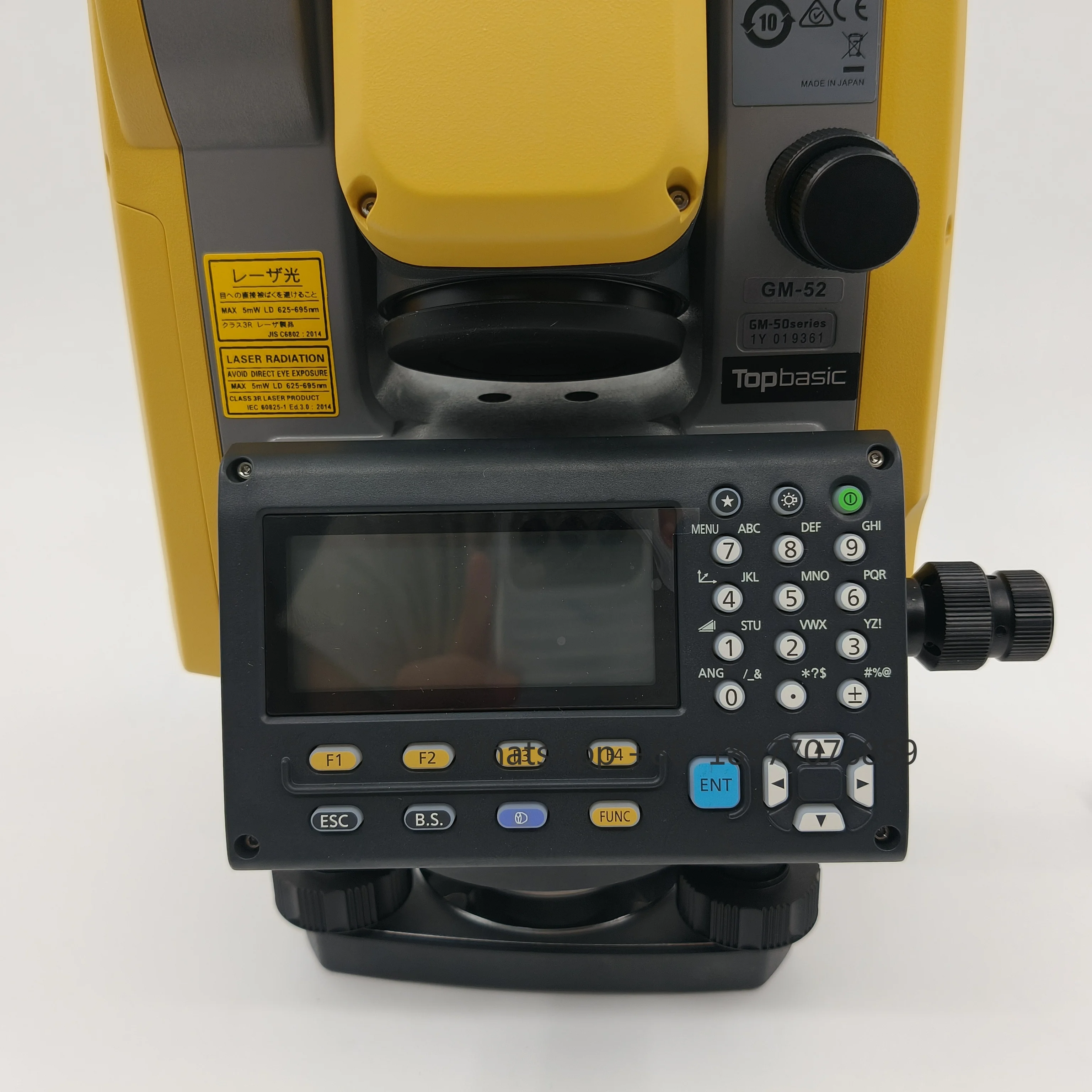

3. Graphic display and alphanumeric keyboard (standard)
Ultra-powerful, advanced EDM

1. 500 m non-prism range
2. 4,000 m prism range
3. Coaxial red laser pointer
4. Pinpoint, precise beamspot
Specification
item
value
place of origin
Japan
warranty
1 Year
customized support
OEM, ODM, OBM
brand name
Topcon
model number
GM52
Min. Resolution Accuracy
2”/5”
Min. Display
1”/5

(0.0002/0.001gon,0.005/0.02mil)
Dual-axis compensator
Dual-axis liquid tilt sensor,

working range: +6′
Collimation compensation
On/Off (selectable)
Prism EDM Range
4,000 m
Prsm EDM Accuracy
1.5 mm + 2 ppm
Non-Prism Range
500 m
Non-Prism Accuracy
2.0 mm + 2 ppm

(0.2 -200 m)
Measuring Time
Fine: 0.9 sec

Rapid: 0.6 sec
Tracking: 0.4 sec
Bluetooth Class 1.5, Operating range: up to10m

USB flash memory (max. 32GB)

Serial RS-232C, USB2.0 (Type A for USB flash memory)

Display
Graphic LCD, 192×80 dots, backlight : on/off(Selectable)/Alphanumeric keyboard/ 28 keys with backlight
Battery Operation
Up to 14 hours
Dust/Water Rating
IP66
Operating Temp
-20鈩� to 60鈩�

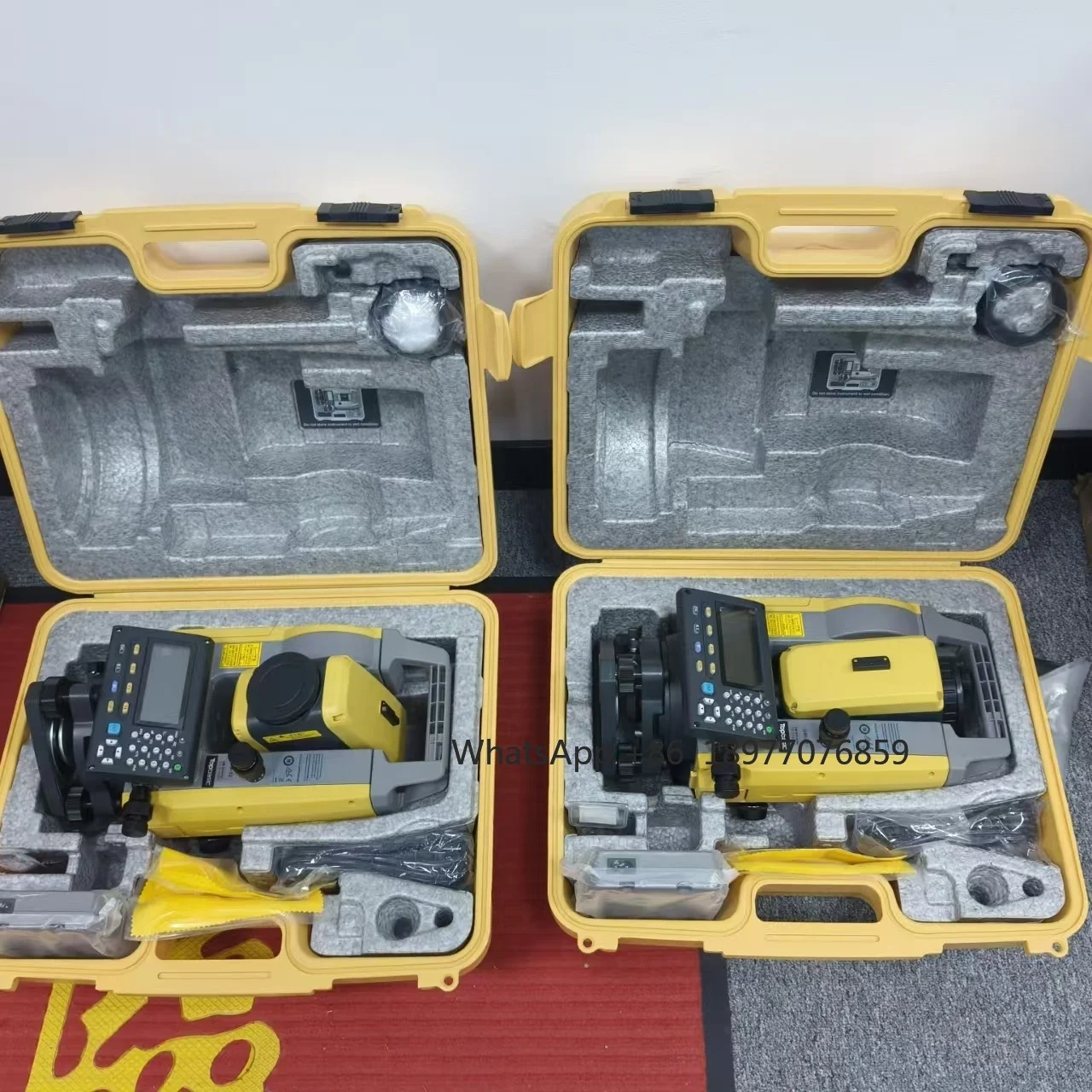

Packing & Delivery
