NT-023 Multi-functional Double Laser Red beam surveying instrument Electronic Theodolite
NanoVNA-F V3 Vector Network Analyzer 1MHz-6GHz 4.3 Inch HF VHF UHF VNA Antenna Analyzer Measuring S-Parameter Voltage SWR,Phase
This product has been added to 514 people'scarts.
- Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
- Including shipping costs, sent by Supplyinx.com
- Pick up at a supplyinx.com collection point is possible
- 30 days to change your mind and free returns
- Day and night customer service
Description
- Hign-concerned Chemical: None
- DIY Supplies: ELECTRICAL
- Brand Name: SeeSii
- Origin: Mainland China
- Display Size: 3.0 – 4.9 Inches
SeeSii NanoVNA-F V3 Vector Network Analyzer, [Upgraded] 1MHz-6GHz 4.3 Inch HF VHF UHF VNA Antenna Analyzer, Measuring S-Parameter Voltage SWR,Phase,Delay,Smith Chart,RTC Real-time,801 Scan Points
SeeSii NanoVNA-F V3 Vector Network Analyzer
This NanoVNA-F V3 vna analyzer is a new production machine from 2023, with 4.3 inch 800 x 480 large touchscreen display, 1MHz to 6GHz widely measuring range, the scan speed of NanoVNA-F V3 is up to 200 points/s and the maximum scanning points is up to 801.In addition, the nanovna analyzer supports TDR function which is useful for cable lengths measurement.
Seesii upgraded value nanovna-f v3 kit includes :
1 x NanoVNA-F V3
1 x Gold-Plated SMA Calibration Kit (LOAD, OPEN and SHORT)
1 x SMA Female to SMA Female Connector
1 x SMA Male to SMA Male Connector
1 x SMA JKW Connector
2 x 20cm/7.9″ RG405 Cables
1 x USB Type-C Data Cable.
1MHz-6GHz ultra-wide measuring frequency range
Compared to the Nanovna-F V2 (50kHz-3GHz), the upgraded Nanovna-F V3 has 1MHz-6GHz ultra-wide measuring frequency range,
The S21 dynamic range of NanoVNA-F V3 is 65 dB, while the S11 dynamic range is 50 dB. The scan points is up to 101-801 and the calibration result storage is 12, covering up to the full low or high frequency range. Faster and more accurate measurement performance, you can easily cope with measurement test in various fields.
|
|
|
|
4.3 inch Sensitive Touch ScreenWith 4.3 inch 800 x 480 high definition screen, which can let you operate and see the data more clearly, give you a better using experience. |
Built-in 4500mA-h BatteryUltra-long battery life,with type-C charging cable and LED charging indicator,it can be fully charged within 3 hours,no need to charge frequently. |

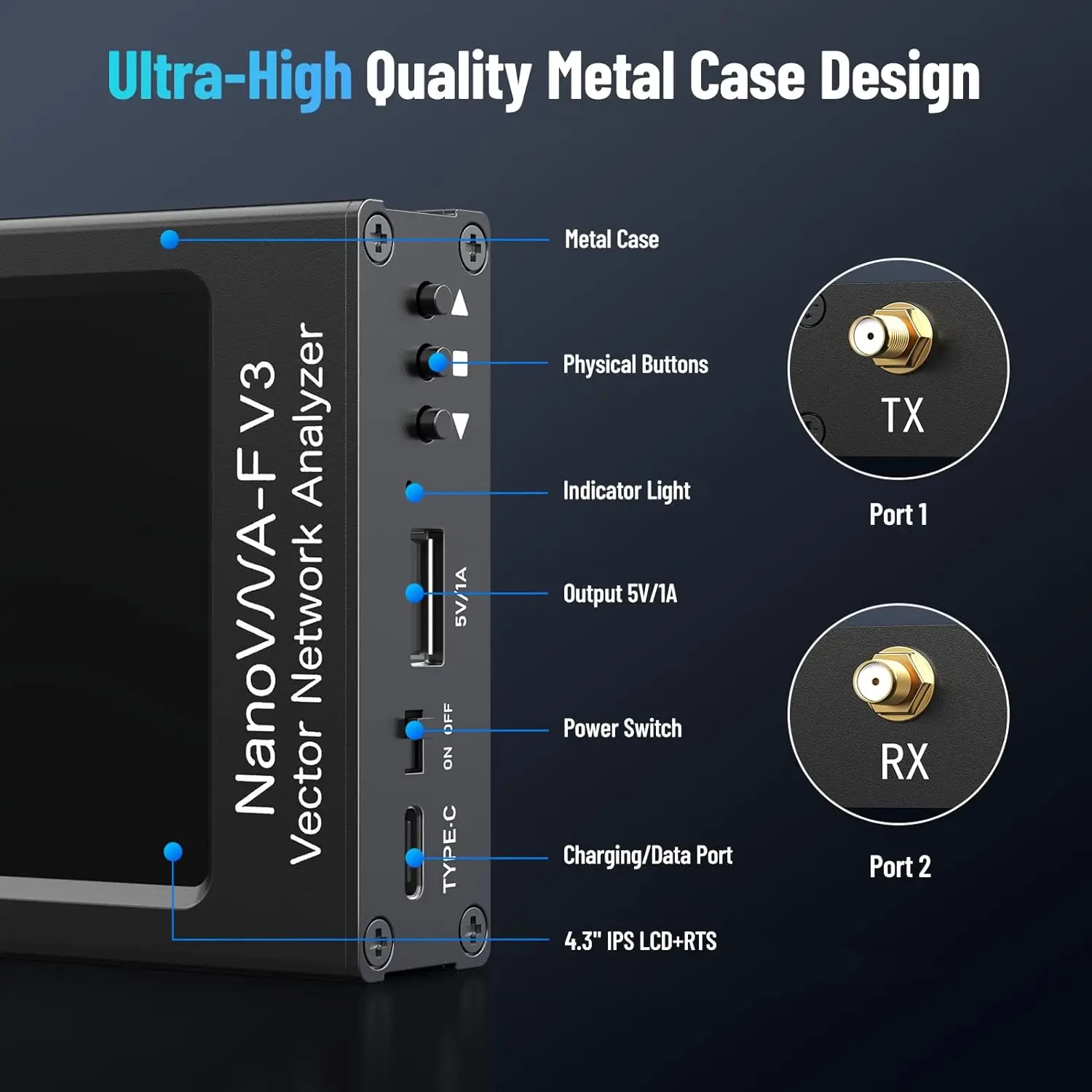

SMA Connectors, Stable and DurableIt is made of metal material, which is durable and can effectively shield electromagnetic interference. With SMA connector design which can be used to connect DUTs directly. |

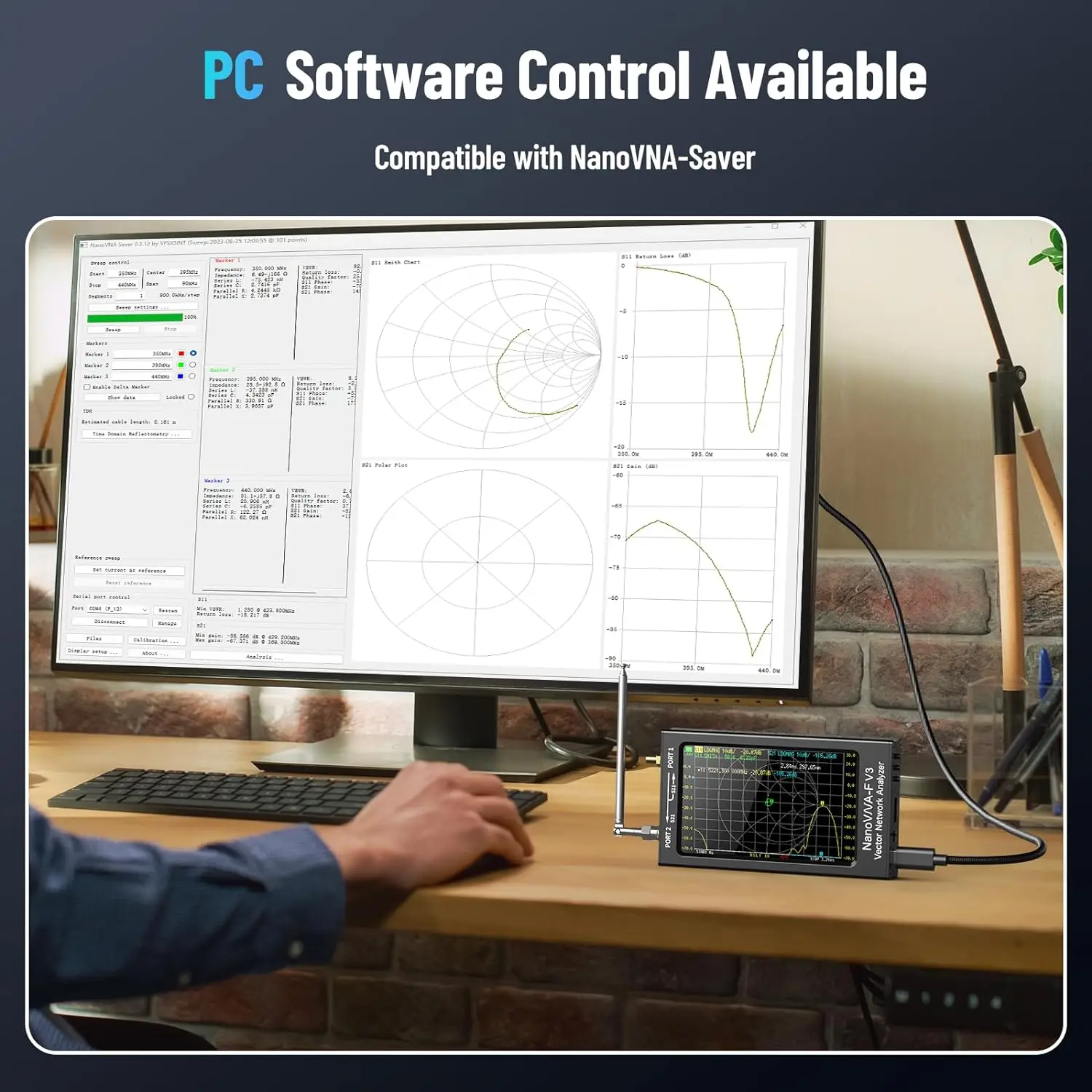

PC Software Control Available
Support PC Software control and compatible with NanoVNA-Saver for convenient measurement data transfer.

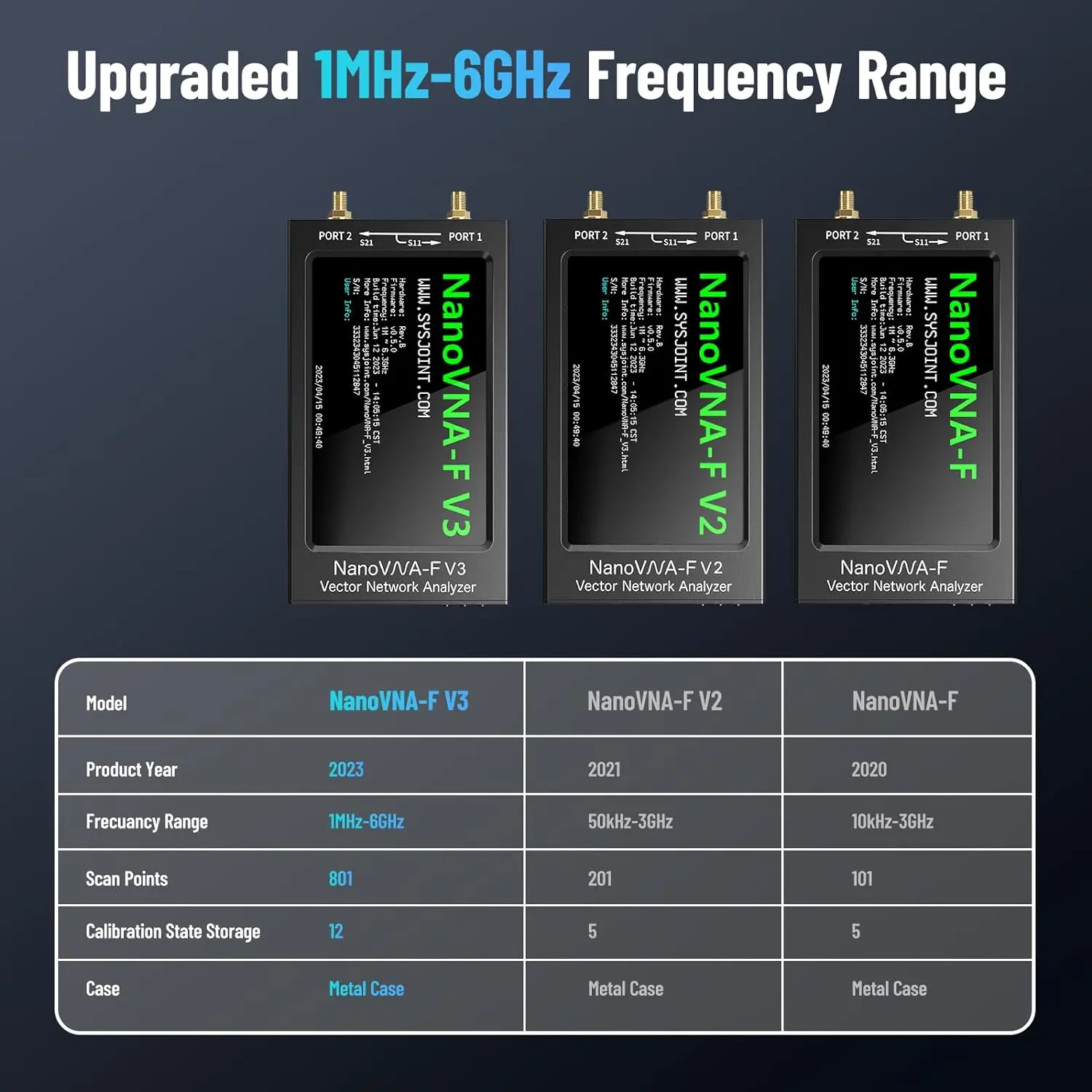

Comparison of NanoVNA-F V3 and NanoVNA-F V2
Multiple Measurement Functions
The lastes NanoVNA-F V3 antenna analyzer is suitable for antenna testing of MF/HF/VHF/UHF/SHF bands. Supports a variety of display formats: Log Mag, Linear Mag, Phase, Smith R+jX, Smith R+L/C, VSWR, Polar, Group delay, Resistance, Reactance, etc. It can also be used to measure filters, amplifiers, attenuators, cables, power dividers, couplers, duplexers and other RF components.
