MISOL / professional weather station / PC connection wind speed wind direction rain meter pressure temperature humidity / solar

Description

Product Features:

lTouch screen panel

lIt can measures: Wind speed, wind direction, rain, temperature (outdoor & indoor), humidity (outdoor & indoor), atmosphere pressure.

lIt transmits data from the outdoor sensor array to the receiver wirelessly(433Mhz).

lThe device (indoor ) can be connected to PC by USB cable. In the software, PC can view the current information from the device, and export the history data into computer(format:csv)

lThe data can be uploaded to the website(www.wundergound.com) via PC, when the PC is connecting to the internet.



Functions:

    1) Free PC software to view the weather data, after PC connecting to the receiver(display).

       (remark: software language: Chinese, Czech, Danish, Deutsch, English, French, Hungarian, Polish, Svenska, Spanish)

    2) USB port for easy connection to your PC to view the weather data.

    3) History Record interval is: 1-240minutes(adjustable). The receiver can log 3552 records in total.

    4) Rainfall data (inch or mm): 1-hour, 24-hour, one week, one month and total since last reset.

    5) Wind chill and Dew point temperature display ( °F or  °C)

   6)Records min. and max. wind chill and Dew point with time and date stamp

   7) Wind speed (mph, m/s, km/h, knots, Beaufort)

   8) Wind direction display with LCD compass

   9) Weather forecast tendency arrow

  10) Weather alarm modes for: a) Temperature b) Humidity c) Wind chill d) Dew point e) Rainfall f) Wind speed g) Air pressure h) Storm warning

 11) Forecast icons based on changing barometric pressure

 12) Barometric pressure (inHg or hPa) with 0.1hPa resolution

 13) Wireless outdoor and indoor humidity (% RH)

 14) Records min. and max. humidity with time and date stamp

 15) Wireless outdoor and indoor temperature (°F or  °C)

 16) Records min. and max. temperature with time and date stamp
17) 12 or 24-hour time display

 18) Perpetual calendar

 19) Time zone setting

 20) Time alarm

 21) High light LED backlight

 22) Wall hanging or free standing

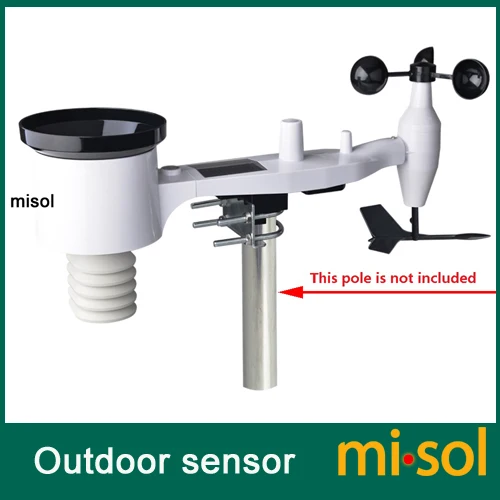

Outdoor Sensor:



1. Wind Speed Sensor

2. Wind Vane

3. Thermo-hygro sensor

4. Rain collector

5. Bubble level

6. Solar panel

7. Antenna

8. U-Bolt

9. Battery compartment

10. Reset button

11. LED Indicator: light will turn on for 4s when the unit is powered up. Then the LED will flash once every
48 seconds (the sensor transmission update period).



PC Software:





History (in software):



Specification:

Outdoor data

Transmission distance: Max. 100meter (330 feet)

(tested in open field, no obstacle in between, no interference in between)

Transmission Frequency: 433 MHz



Temperature range: -40 to +60°C(-40 °F to +140°F)

Accuracy : +/- 1˚C, Resolution:0.1˚C



Humidity range:10%～99%

Accuracy : +/- 5%, Resolution: 1%



Rain volume: 0 – 9999 mm

Resolution:0.3mm (if rain volume < 1000mm), 1mm (if rain volume > =1000mm)

Accuracy : +/- 6%



Wind speed: 0-50m/s (0~100mph)

Accuracy: +/- 1m/s (wind speed< 5m/s), +/-10% (wind speed >=5m/s)



Wind direction: 0 to 359 degree



Measuring interval for outdoor sensor: 48 sec



Indoor data

Indoor temperature range:0˚C–50˚C (32 °F to +122 °F)

Resolution :0.1˚C

Accuracy :+/-1˚C



Humidity:10%～99%

Resolution:1%

Accuracy : +/- 5%



air pressure range: 300-1100hPa (8.85 -32.5inHg)

Accuracy:+/-3hpa

Resolution:0.1hPa (0.01inHg)



Measuring interval (indoor sensor): 48 sec

Alarm Duration: 120 seconds



Power requires:

Base station(display):3 x AA 1.5V batteries(not included)

Outdoor sensor: 2X AA 1.5V batteries(not included),

Package included:

QTY	Item	Image
1	Display Console (Dimensions): Approx. (LxWxT): 23×14.5×3.5cm
1	Outdoor Sensor Array(Dimension): approx.(LXWXH):46x12x20cm
1	User manual in English

Remark: there’s no pole included in the package. Customer can customize the pole according to the actual installation requirement.
