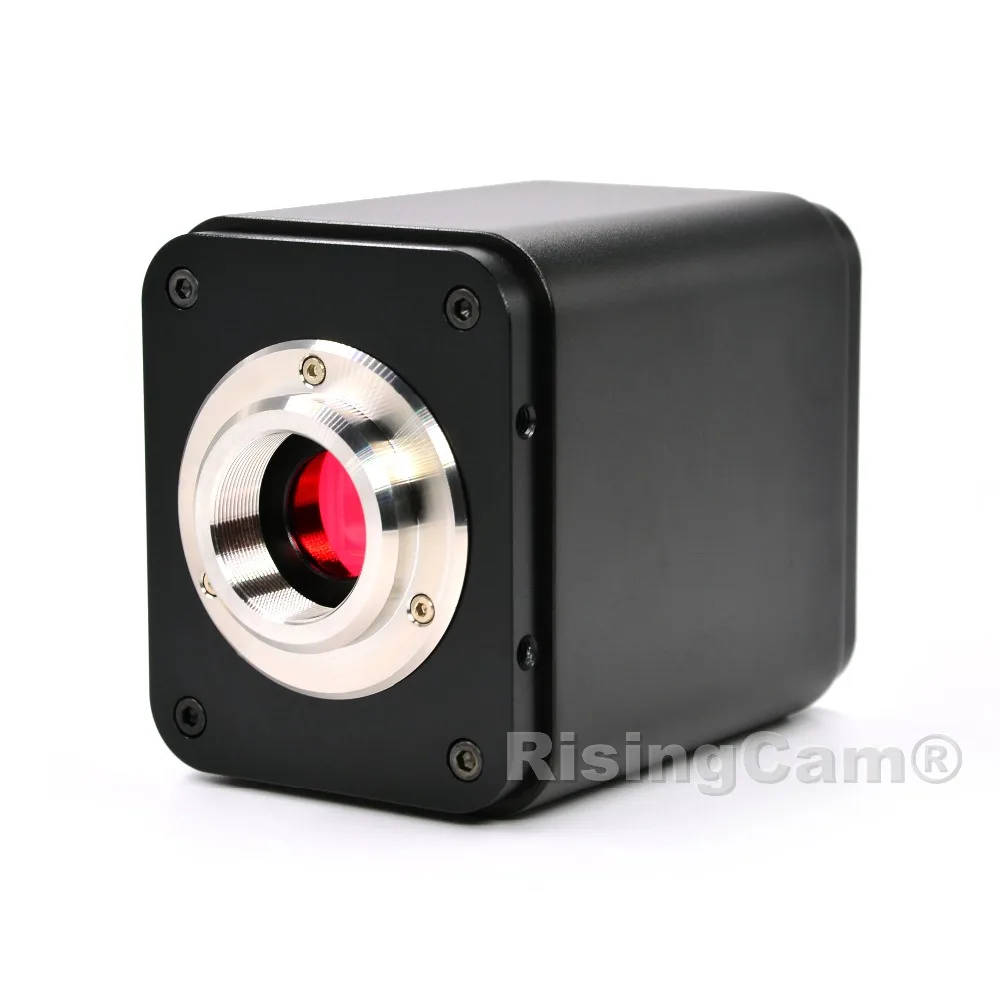

Live EDF Auto Focus 4K Ultra HD 60fps SONY imx678 1/1.8″ Sensor C mount 4K digital microscope camera 4K HDMI USB WiFi Output

Please download Camera Operation Manual from this link:

https://1drv.ms/b/s!AogUbo_LJJSrgigLljnsxE48gbBC?e=xSNZeR

https://1drv.ms/v/s!AogUbo_LJJSrgjEg3gnU3fOK9MS6?e=Jdn9FM

The X5FCAM4K8MPA camera designed by RisingCam that includes multiple modes of output (HDMI/WiFi/USB),

where X in ‘X5FCAM’ means a CMOS camera with multiple interfaces, and F means auto focus. It uses ultra-high performance CMOS sensor. The camera can be directly connected to an HDMI display, or it can be connected to a

computer via WiFi or USB, and the image and video can be saved in an SD card /USB flash drive for on-site analysis and
subsequent research.

Enhanced with an embedded ARM core, this camera integrates various functions inside. With the help of a USB

mouse and well-designed UI on the HDMI monitor, all functions could be easily controlled.

The X5FCAM4K8MPA camera comes with the built-in Auto Focus system, which can realize Auto Focus on specific

areas of the sample.

By inserting a WiFi module or connecting to a computer via a USB cable, the user can directly control the camera’s

hardware with the software RisingView . The X5FCAM4K8MPA camera can be used for tool field inspection,

microscope observation, etc.

Scientific research, digital teaching (teaching, demonstration and academic discussing);

Digital laboratory, medical research;

Machine vision (PCB detection, IC quality control);

Medical treatment (pathological observation);

Food (microbial colony observation and counting);

Aviation and military;

Auto Focus

Live EDF (Extend Depth of Field)

Auto Focus and Live EDF can working at same time(Under HDMI output mode)

HDMI,USB,WiFi output (WiFi for Optional)

SONY imx678 Sensor, senzor size:1/1.8″

Resolution: 4K Ultra HD (8mp  3840×2160)

High G sensitivity: 3541(mV/lx/s)

Preview frame rate： 60fps @ 4K under HDMI output

Real time measurement

Support U disk and SD card storage

SONY imx678 Sensor, senzor size:1/1.8″

Resolution: 4K Ultra HD (8mp  3840×2160)

4k/1080P switch adaptively, Under HDMI-output Preview frame rate 60fps@4K, Max recording frame rate 60fps

1. HDMI output mode

Comply with HDMI2.0 standard.

4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors.

Camera can capture photo and recording video under HDMI mode, the photo and video can be saved into SD card or USB drive,

the photo and video in SD card or USB drive can be replayed on TV monitor

4K Camera connect to 19inch 1080P TV monitor

4K Camera connect to 55inch 4K TV monitor

Camera Menu

Camera Control Panel

The Camera Control Panel controls the camera to achieve the best video or image quality according to the specific applications; It will pop up automatically when the mouse cursor is moved to the left side of the video window (in measurement status, the Camera Control Panel will not pop up. The Camera Control Panel will only pop up when the measurement process is finished or terminated while user’s cursor on the left edge of the video window). Left-clicking

Camera Measurement Toolbar

The Measurement Toolbar will pop up when moving mouse cursor to any place near the upper edge of the video window. Here is the introduction of the various functions on the Measurement Toolbar





2. USB output mode



This 4K Camera support UVC, so it can working with computer by USB3.0 port.

RisingCam will provide RisingView software for buyer

RisingView software support Windows and MAC system



User can select different resolution in RisingView software

Max 30fps@3840*2160

Max 45fps@2688*1512

Max 60fps@1920*1080



(Note: Camera Frame rate is not fixed, Frame rate relate to camera exposure time, long exposure time will reduce frame rate,

So set shorter exposure time can get higher frame rate. Frame rate relate to Computer’s hardware too)





NOTE:

Because USB3.0’s UVC function is ISO transmission as required, WIN7 is not supported

So USB3.0 output only avaliable for Win8 and Win10 system, Win7 system only support USB2.0 output

USB2.0 and USB3.0 has same frame rate.











RisingView for Windows



RisingView for MAC





NOTE:



AUTO FOCUS in RisingView software

RisingView can support Windows XP/Vista/7/8/10 system

Only Windows version of RisingView software support Auto focus.

The linux, Mac version of RisingView not support Auto focus.













The Photo made by 4K Camera’s USB output under Zeiss Lab A1 Bilogical microscope



Zeiss Lab.A1 Trinocular microscope, Objective lens 4X, Sample:Plant rhizome



Zeiss Lab.A1
Trinocular microscope, Objective lens 40X, Sample:
Plant rhizome



3. GE port Ethernet output mode



Connecting multi-cameras to the router through the LAN port/ WiFi STA mode for the network application

(The Connecting Manual in our Software CD)

Please download Camera manual and video from this link:

https://drive.google.com/file/d/18Q0C8KJa0nzsYBrlfRUvBOBrA0FaWCKV/view?usp=sharing





Connecting camera to the PC with LAN port

In LAN mode, the camera connects to a switch or router (LAN) by Ethernet cable,

If a router with WLAN capability is used, users could connect the router wirelessly and control the camera.





This application uses the camera as the network camera. User must configure the IP of the camera and PC manually and ensure their IP addresses in the same net. The subnet mask and gateway of the camera and PC must be the same.



Start the camera after the camera is running, clicking camera setting button on the Synthesis Camera Control Toolbarat the bottom of the video window, a small window called Settings will pop up as shown below on the left side, clickingLAN property page, uncheck the DHCP item.

InputIP Address,Subnet Mask andDefault Gateway for the camera. DesignateInternet Protocol Version 4 (TCP/IPv4) Settings page’s IP address on the PC with similar configuration as shown below on the right side but with differentIP address.



the camera also can be connect to PC via Ethernet Cable, So this camera can working with RisingView software in PC

This application uses the camera as the network camera. User must configure the IP of the camera and PC manually and ensure their IP addresses are in the same net. The subnet mask and gateway of the camera and PC must be the same.











4.  WiFi output mode (WLAN or AP mode)



WIFI Output Image to
Computer, laptop
,
Android and Apple IOS mobile device
Smart phone, Iphone and Ipad etc.

(The PC computer and Laptop computer should has Wireless network card)



WiFi Connecting Steps:

(1) Install the RisingView on your Computer or install the ToupView app on the mobile device;

(2) Plug the USB WLAN adapter into the camera’s USB3.0 port;

(3) Connect the camera to the power adaptor and switch it on;

(4) Connect the computer or mobile device with the WLAN that the camera provides;

(5) The network name (SSID) and the WLAN password (The default one is 12345678) can be found on the camera.

(6) Open RisingView on computer or Open app on mobile device, then it can get image from Camera



NOTE: RisingView in our Software CD.

IOS user Could download ToupView App from Apple App Store (itunes)

Android user could download ToupView App from Google Play store

App for iOS: download link

https://itunes.apple.com/us/app/toupview/id911644970

App for Android:download link

https://play.google.com/store/apps/details?id=com.touptek.toupview











4K Camera connect to Mobile Device WiFi



App for Mobile Device (IOS or Android)

Just make sure that the mobile device uses iOS 11 or higher/Android 5.1 or higher operating systems.

IOS user download ToupView App from Apple App Store (itunes)

Android user download ToupView App from Google Play store



NOTE: ToupView App not support Auto Focus



4K Camera connect to Laptop computer via WiFi



When working with computer via WiFi Output ,

This camera’s WiFi output support Windows, Linux and Mac system

RisingView can support Windows XP/Vista/7/8/10 system



Only Windows version of RisingView software support Auto focus.

The linux, Mac version of RisingView not support Auto focus.











When working with computer via WiFi Output ,

This camera’s WiFi output support Windows, Linux and Mac system

RisingView can support Windows XP/Vista/7/8/10 system

RisingCam provide RisingView software for MAC and Linux OS





RisingView for MAC and Linux System





This 4K Camera can working with biological microscope





This 4K Camera also good choice for Surgical Operation Microscope



The below picture is made by this 4K camera and Surgical Operation Microscope for Ophthalmology



RisingView software instruction



RisingCam Provide RisingView Software for buyer free.



RisingView Download link:

https://drive.google.com/file/d/1QDXrVJRZGgD1Nx0AiEP-hpnMZfeC71XC/view?usp=sharing







RisingView is professional software integratedwith camera control, image capture&process, image browse

image measurement and analysis.RisingView is born with the following features:



1.User-friendly UI design

2.Professional Camera Control Panel





3.Practical functions with good result Image



4. So many measurement toolsMeasurement results can export to Excel list





5. Powerful compatibility

RisingView can support Windows XP/Vista/7/8/10 system











Sample Pictures



PCB sample







Biology Sample

MK54

Rabbit Emdryo

Ovary

Taste

PineLeaf



CornLeaf







Sample Photo made by Buyer

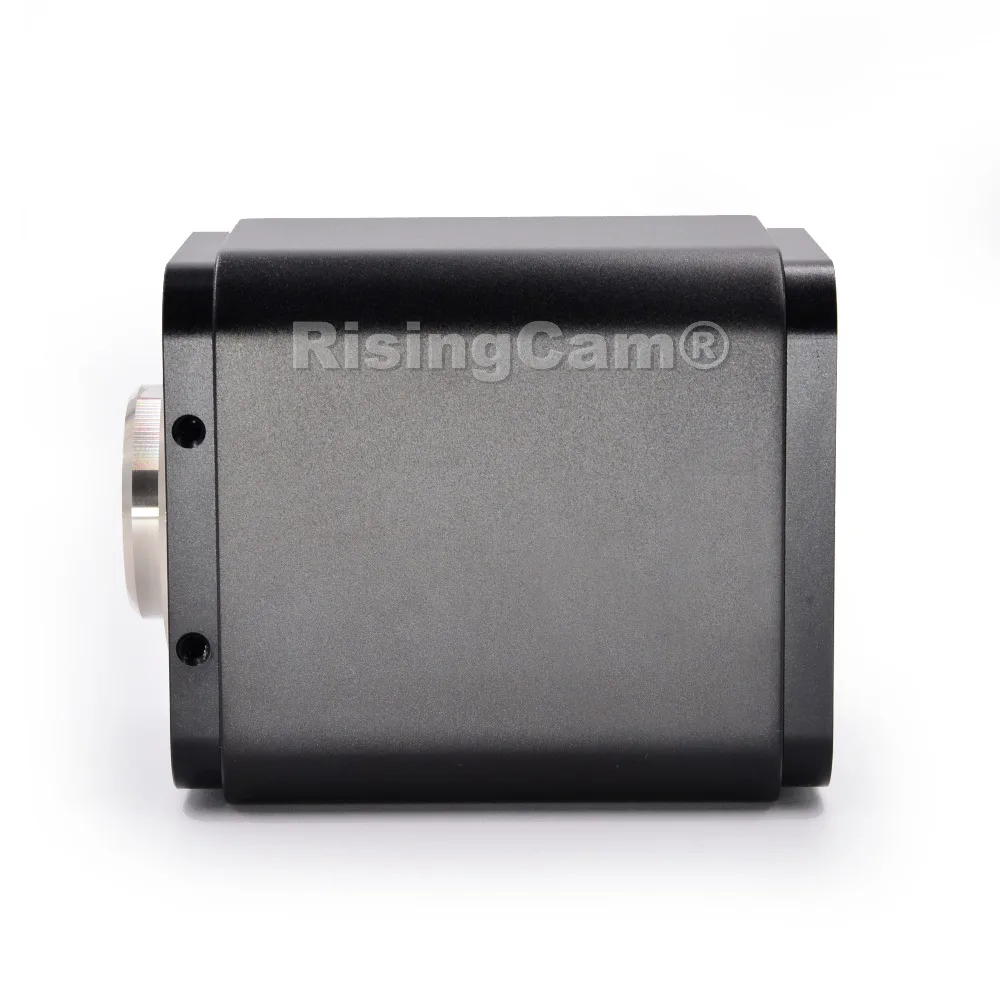

camera body, made from tough, CNC aluminium alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

The standard packing include

1. 4K camera

2. HDMI-compatible cable

3. USB3.0 Cable

4. USB Mouse

5. USB-WLAN WiFi Adapter (For optional)

6. Power Supplier

7. Software in USB flash disk

1 Years
