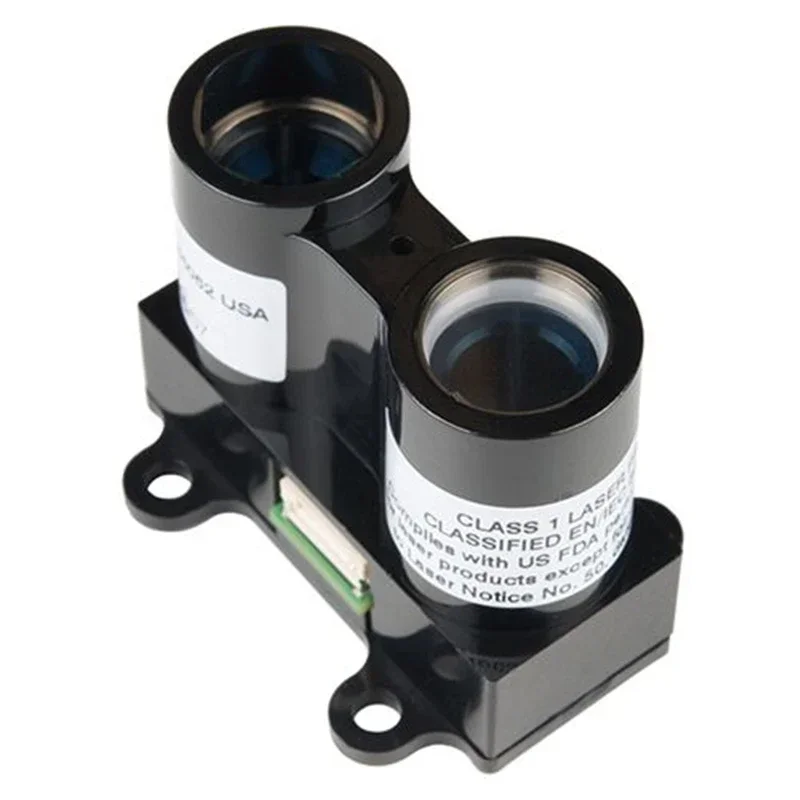

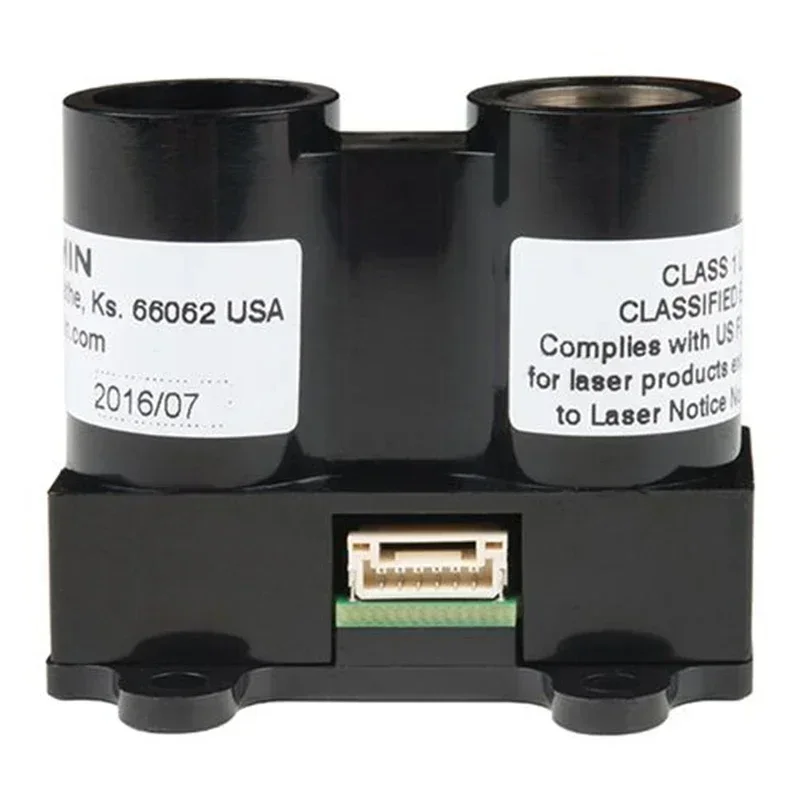

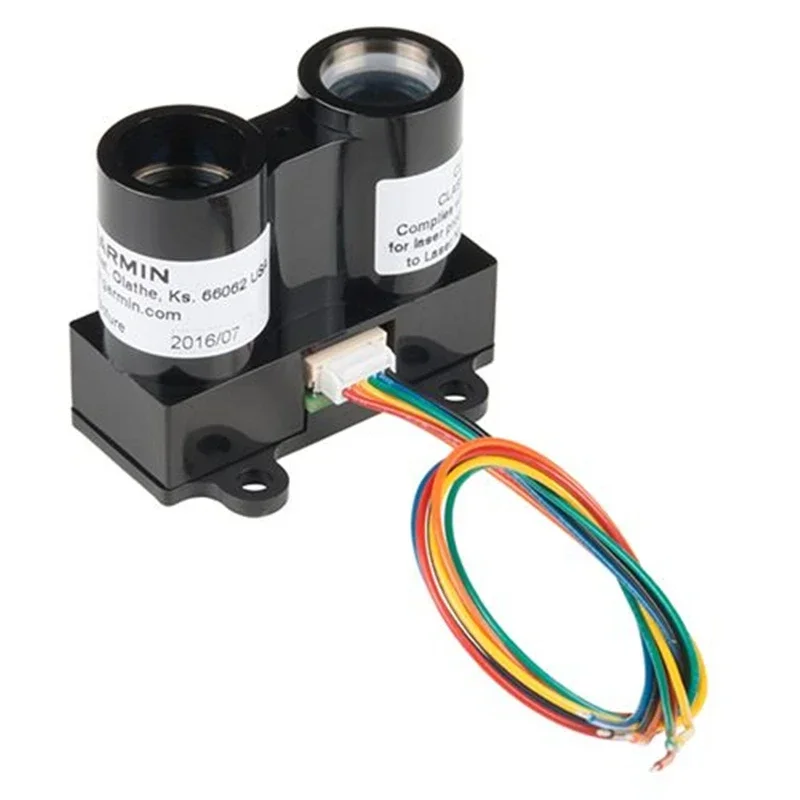

LIDAR Lite V3 Pixhawk lite sensor optical distance measuring sensor for Rangefinder Floating
LIDAR Lite V3 Pixhawk lite sensor optical distance measuring sensor for Rangefinder Floating - Image 2
LIDAR Lite V3 Pixhawk lite sensor optical distance measuring sensor for Rangefinder Floating - Image 3
LIDAR Lite V3 Pixhawk lite sensor optical distance measuring sensor for Rangefinder Floating - Image 4

LIDAR Lite V3 Pixhawk lite sensor optical distance measuring sensor for Rangefinder Floating

Rp9.505.211 Original price was: Rp9.505.211.Rp7.505.211Current price is: Rp7.505.211.
In Stock
Order on WhatsApp
In Stock
Add to wishlist
  • Pre-Order Available (Estimated ±15 Day Delivery)
  • 7 day unit replacement guarantee(Video Unboxing Required)
  • Including shipping costs, sent by Supplyinx.com
  • Pick up at a supplyinx.com collection point is possible
  • 24/7Customer service
SKU: 1005009828544178
Category:

Description

Deskripsi Produk

LIDAR Lite V3 Pixhawk adalah sensor pengukur jarak berbasis optik yang dirancang untuk aplikasi drone, robotika, dan sistem navigasi otomatis. Dengan teknologi LIDAR (Light Detection and Ranging), perangkat ini mampu memberikan pengukuran jarak presisi tinggi secara real-time. Ringkas, ringan, dan hemat daya, sensor ini sangat cocok digunakan sebagai rangefinder maupun sistem altitude hold pada UAV.

Spesifikasi Teknis

  • Model: LIDAR Lite V3

  • Teknologi: Optical LIDAR distance measuring sensor

  • Rentang pengukuran: hingga ±40 m (outdoor, tergantung kondisi)

  • Akurasi: ±2,5 cm

  • Antarmuka: I2C & PWM (kompatibel dengan Pixhawk & flight controller lainnya)

  • Konsumsi daya: sangat rendah (ideal untuk UAV)

  • Dimensi: kompak, ringan, mudah diintegrasikan

  • Aplikasi: drone, robotika, otomasi industri, floating measurement

Aplikasi

  • Drone/UAV: altitude hold, obstacle avoidance, dan mapping

  • Robotika: navigasi otomatis & deteksi objek

  • Survey & pemetaan: pengukuran jarak berbasis sensor optik

  • Industri otomasi: kontrol posisi presisi pada mesin & sistem otomatis


Features
This rangefinder module is the latest version of V3.
Faster and more accurate than LIDAR-Lite V2
Compact 48mm x 20mm x 40m 40m measuring range
Reduced price signal processing measurement speed increased by 5 times
Improved I2C communication and allocation of I2C addresses
Meet drones, robots and other demanding applications

I2C communication rate 100kbits / s or 400kbits / s
High performance, low cost, small size, light weight, low power consumption, and dynamic configurability along with I2C
communication and processing – a combination of features found in LIDAR-Lite, it becomes practical to install multiple sensors on
a project to Minimal weight and power loss. The LIDAR-Lite has a beamwidth of 0.5°. This narrow beam provides long range
performance while also allowing for better target selectivity than ultrasonic sensors.

Edge emission characteristics of LIDAR Lite, 905nm (75um, 1 watt, 4 mrad, 14mm optic) single-strip laser emitter surface mount
package

With a beamwidth of 0.5°, this narrow beam provides long-range performance and better target selectivity than ultrasonic sensors.

note:


Product Details
Range: 0-40m laser transmitter
Power: 4.7 – 5.5V, maximum 6DC
Current consumption: <100mA continuous operation
Acquisition time: less than 0.02 seconds
Repeat rate: adjustable from 1 to 500 Hz
Interface: I2C or PWM
Module size: 20 x 48 x 40 mm
PCB size: 44.5mm x 16.5mm
Module weight: 16g (with optics and housing)
PCB weight: 4.5g
