Kolida K58 Plus Farlink Protocol Imu 1598 Channels Landscaping Surveying Instrument Dgps Gps Gnss Rtk Kolida K7
- Pre-Order Available (Estimated ±15 Day Delivery)
- 7 day unit replacement guarantee(Video Unboxing Required)
- Including shipping costs, sent by Supplyinx.com
- Pick up at a supplyinx.com collection point is possible
- 24/7Customer service
Description
The Kolida K58 Plus is a high-performance GNSS RTK surveying instrument designed for landscaping, geospatial mapping, and surveying applications. Equipped with Farlink Protocol, IMU (Inertial Measurement Unit), and 1598 GNSS channels, it offers sub-centimeter accuracy and exceptional signal processing in real-time. The Kolida K7 is a versatile companion that ensures stable performance with GPS, GLONASS, Galileo, and BeiDou support. With a robust design, this instrument is ideal for precision surveying, topographic mapping, and land management.
Product Description
The Kolida K58 Plus GNSS RTK Receiver integrates advanced IMU technology and Farlink Protocol, ensuring precision positioning and reliable data collection. With 1598 channels, the system provides multi-constellation GNSS support for GPS, GLONASS, Galileo, and BeiDou. This high-performance surveying instrument is designed for dynamic surveying applications, offering real-time kinematic (RTK) corrections for sub-centimeter accuracy. It is well-suited for landscaping and surveying, with the added benefit of IMU integration that enhances data stability and accuracy during motion.
Key Features
-
1598 GNSS Channels: Supports GPS, GLONASS, Galileo, and BeiDou for multi-constellation positioning and robust signal reception
-
Farlink Protocol: Enables seamless data communication for efficient data transfer and higher accuracy in surveying applications
-
IMU Technology: Provides enhanced positioning stability and accuracy during dynamic measurements, even in challenging environments
-
Real-Time Kinematic (RTK): Provides sub-centimeter positioning accuracy with real-time corrections for dynamic surveying
-
High-Precision Surveying: Ideal for landscaping surveys, topographic mapping, site planning, and boundary surveys
-
Long Battery Life: Operates up to 12-16 hours on a single charge, perfect for long surveying sessions
-
Rugged and Durable: IP67 waterproof and dustproof rating, suitable for use in harsh environments
-
User-Friendly Interface: LCD display, intuitive controls for quick setup and operation in the field
-
Compact and Portable: Lightweight, easy to carry, making it ideal for field use
-
Multi-Device Compatibility: Supports Bluetooth, Wi-Fi, and USB for quick data transfer to other devices
Technical Specifications (Example for Kolida K58 Plus GNSS RTK Receiver)
| Specification | Details |
|---|---|
| Model | Kolida K58 Plus GNSS RTK Receiver |
| Channels | 1598 GNSS channels (GPS, GLONASS, Galileo, BeiDou) |
| IMU Technology | Yes |
| Accuracy | Sub-centimeter (with RTK) |
| Battery Life | 12-16 hours per charge |
| Connectivity | Bluetooth, Wi-Fi, USB |
| Protection | IP67 (waterproof and dustproof) |
| Display | LCD, easy-to-read interface |
| Dimensions | Compact and portable |
| Weight | 2-3 kg |
Applications
-
Landscaping for surveying garden layouts, land management, and irrigation planning
-
Geospatial Surveying for topographic surveys, boundary mapping, and land development
-
Construction for site layout, building foundations, and structural surveys
-
Agriculture for precision farming, crop monitoring, and field surveying
-
Civil Engineering for road construction, bridges, and infrastructure development
-
Environmental Monitoring for land reclamation, ecosystem studies, and resource management
-
Urban Planning for city development, property surveying, and site analysis
Summary
The Kolida K58 Plus GNSS RTK Receiver with Farlink Protocol, IMU technology, and 1598 GNSS channels is a high-performance surveying instrument ideal for landscaping, geospatial mapping, and topographic surveying. It provides sub-centimeter accuracy with real-time kinematic (RTK) corrections, ensuring reliable positioning in challenging field conditions. The user-friendly interface, long battery life, and compact design make it a versatile tool for surveying professionals. The affordable pricing and advanced features make it an excellent choice for 2024.
Full function radio station.
WIFI data link.
4G full network connectivity.
Bluetooth data link.
|
|
product name
|
kolida tianxing
|
|
|
Measurement Performance |
Signal tracking |
BDS-2:B1I, B2I, B3I; BDS-3:B1I, B3I, B1C, B2a, B2b
|
|
|
|
|
GPS:L1C/A,L2P,L2C,L5,L1C*
|
|
|
|
|
GLONASS: G1, G2, G3*; SBAS: L1C/A,L5*
|
|
|
|
|
Galileo: E1,E5b,E5a,E5 AltBoc*,E6c*
|
|
|
|
|
QZSS: L1, L2C, L5; IRNSS: L5*
|
|
|
|
|
1598 channels
|
|
|
|
GNSS features |
Positioning output frequency 1Hz to 20Hz; initialisation time less than 10 seconds
|
|
|
|
|
Initialisation reliability >99.99%
|
|
|
|
|
Full constellation reception technology, which can fully support signals from all current GNSS constellations
|
|
|
|
|
Highly reliable carrier tracking technology, which greatly improves carrier accuracy and provides users with high quality raw
observation data |
|
|
|
|
Intelligent dynamic sensitivity positioning technology, adapting to various environmental changes, adapting to harsher and more
distant positioning environments |
|
|
|
|
Highly accurate positioning processing engine
|
|
|
Positioning Accuracy |
Code differential GNSS positioning
|
Horizontal: 0.25 m + 1 ppm RMS
|
|
|
|
|
Vertical: 0.50 m + 1 ppm RMS
|
|
|
|
Static CNSS measurements
|
Plane: ± (2.5mm + 0.5 x 10-6D); Elevation: ± (5mm + 0.5 x 10-6D); (D is the length of the baseline being measured, in mm)
|
|
|
|
Real-time dynamic measurement
|
Plane: ± (8 mm + 1 x 10-6D); Elevation: ± (15 mm + 1 x 10-6D) (D is the length of the measured baseline in mm)
|
|
|
Operating Systems/User Interaction |
Operating system: Linux
|
|
|
|
|
Keypad: single button
|
|
|
|
|

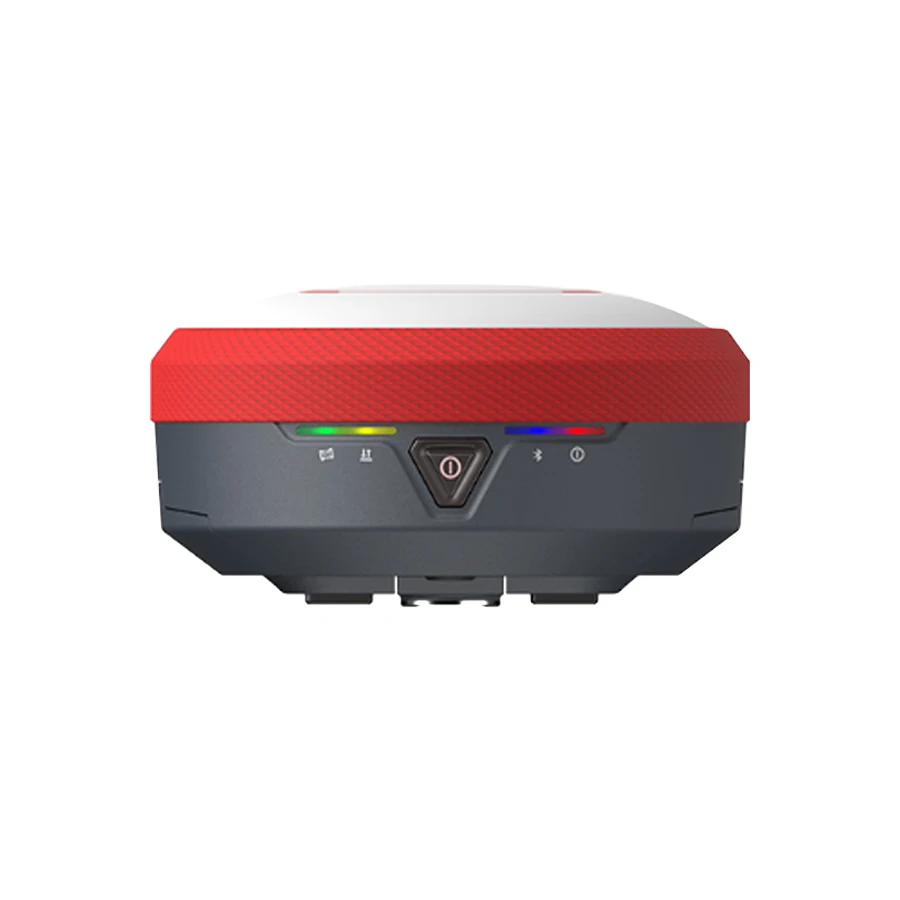

Indicator lights: Four indicator lights. Satellite light, differential signal light, Bluetooth light, power light
|
|
|
|
|
Web interaction: support WI-FI and USB mode to access the receiver built-in Web management page, monitor the host status, free
configuration of the host, etc. |
|
|
|
|
Voice: iVoice intelligent voice technology, intelligent status announcement, voice operation prompt; default support for Chinese,
English, Korean, Russian, Portuguese, Spanish, Turkish |
|
|
|
|
Secondary development: provide secondary development package, open OpenSIC observation data format and interaction interface
definition for secondary development |
|
|
|
|
Data cloud service: powerful cloud service management platform, allowing remote management and configuration of equipment, viewing
progress, managing jobs, etc. Can use Qualitec servers or build your own servers |
|
|
|
Hardware |
Size: 156mm*78mm (diameter, height)
|
|
|
|
|
Weight: 1.3kg (with battery)
|
|
|
|
|
Material: magnesium alloy
|
|
|
|
|
Operating temperature: -30 °C to +70 °C; storage temperature: -40 °C to +80 °C
|
|
|
|
|
Humidity resistant to 100% condensation
|
|
|
|
|
Protection class: IP68, waterproof: 1m immersion, dustproof: completely protected against dust ingress
|
|
|
|
|
Resistant to a 2 m drop with a pole
|
|
|
|
Electrical |
Power supply: 6~28V wide voltage DC design with overvoltage protection
|
|
|
|
|
Battery: detachable dual battery design, support hot-swappable, voltage: 7.4V, 3400mAh/block
|
|
|
|
|
Power solution: Mobile station mode, typical endurance time >20 hours at full charge, support battery power supply, rechargeable
battery power supply |
|
|
|
Communication |
I/O ports |
5 pole LEMO external power connector + RS232
|
|
|
|
|
Type-C interface for power supply, data transmission
|
|
|
|
|
One radio antenna port
|
|
|
|
|
Micro SIM card slot (medium card)
|
|
|
|
Radio modems |
Built-in transceiver radio, typical operating distance 10km; support radio relay, network routing function.
|
|
|
|
|
Operating frequency 410-470MHz; communication protocols: Farlink,TrimTalk450S,ZHD,SOUTH,HUACE,Satel
|
|
|
|
4G all-access |
Intelligent PPP dialing technology based on Linux platform, automatic real-time dialing, continuous online during work; built-in
network antenna |
|
|
|
|
Equipped with a 4G tell-tale network communication module, compatible with various CORS systems access
|
|
|
|
Bluetooth |
Bluetooth 3.0/4.1.
|
|
|
|
|
Bluetooth 2.1+EDR standard
|
|
|
|
NFC wireless communication |
NFC wireless communication technology, Bluetooth automatic pairing can be achieved by touching the handbook and the main unit
(requires handbook also equipped with NFC wireless communication module) |
|
|
|
eSIM (optional) |
The eSIM chip can be embedded in the handbook to provide network resources in real time to ensure continuous online network
operation of the host computer, supporting external card solutions |
|
|
WIFI |
Standard
|
802.11b/g/n standards
|
|
|
|
WIFI Hotspot |
With WIFI hotspot function, any intelligent terminal can be connected to the receiver for rich personalization of the receiver
functions |
|
|
|
|
Data transfer between industrial handbooks, intelligent terminals and other data collectors and receivers via WIFI
|
|
|
|
WIFI data chain
|
Receiver can be connected to WIFI for differential data broadcast or reception via WIFI
|
|
|
Data Storage/Transfer |
Data storage |
8G internal solid state memory
|
|
|
|
|
Auto-cycle storage (automatically delete the earliest data when there is not enough storage space)
|
|
|
|
|
Supports external USB memory for data storage
|
|
|
|
|
Rich sampling interval, up to 20Hz raw observation data acquisition
|
|
|
|
Data transfer |
One-button intelligent copy of static data directly from the host computer via external USB memory
|
|
|
|
|
Plug-and-play USB data transfer method
|
|
|
|
|
Supports USB, FTP download, HTTP data transfer
|
|
|
|
Data format |
Static data formats: Southern STH, Rinex 2.01 and Rinex 3.02 and many more
|
|
|
|
|
Differential data formats: RTCM3.0, RTCM3.2
|
|
|
|
|
GPS output data formats: NMEA 0183, PJK planar coordinates, binary codes
|
|
|
|
|
Network mode support: VRS, FKP, MAC, NTRIP protocol support
|
|
|
Sensors |
Inertial tilt measurement |
Built-in IMU inertial measurement sensor, supports inertial tilt measurement function, automatically corrects coordinates
according to the tilt direction and angle of the centering rod |
|
|
|
|
Tilt angle: 0°～60°; IMU update rate: 200HZ
|
|
|
|
Tilt compensation accuracy
|
1.8 m pole; RMS: 8 mm + 0.7 mm/°tilt
|
|
|
|
Temperature sensors |
Built-in multiple temperature sensors, using intelligent frequency conversion temperature control technology, real-time monitoring
and adjustment of the host temperature |
|
