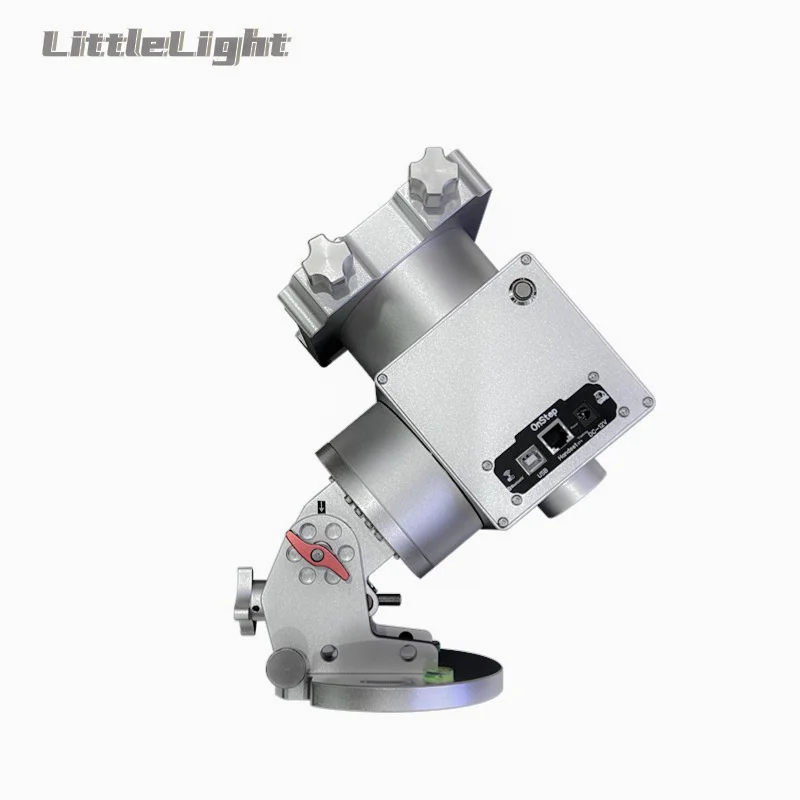

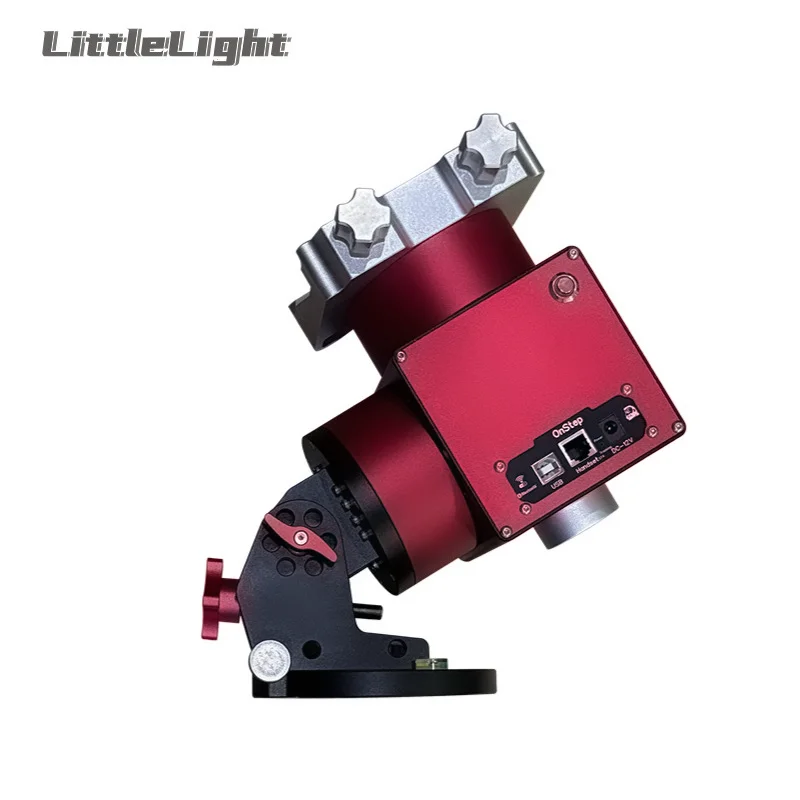

JUWEI17-100 Wide dovetail groove astronomical telescopes harmonic equatorial instrument compatible with theodolites

Description

Product parameters

*Double 17-100 harmonic reducer

*Total reduction ratio 400:1 (100:1 harmonic plus 1:4 synchronous wheel)

*Load capacity :13kg (without counterweight) ,18KG (with counterweight~5kg)

*The chassis is of GEM4 5 specification

*Chassis diameter 125mm

*M12 threaded counterweight bar;20mm diameter,230mm length

*Adjust the elevation angle by 10-90 degrees

*Direction adjustment range：20° with Azimuth screws

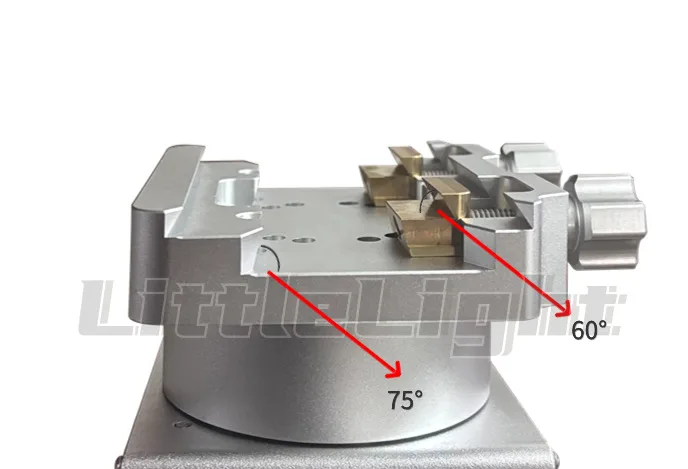

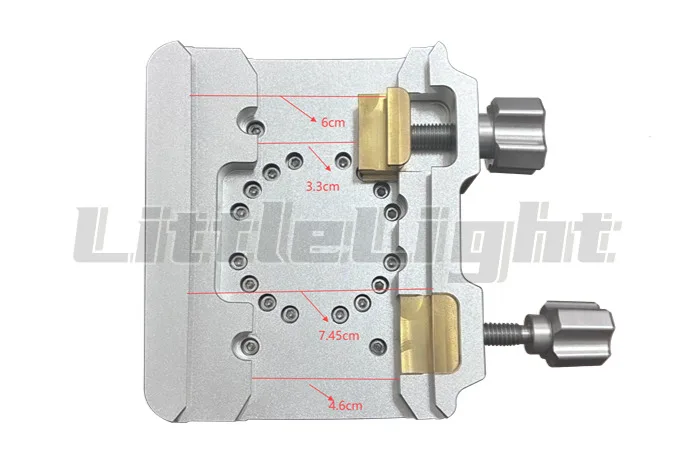

*Dual saddle(Losmandy D style and Vixen dovetails supported)

*Using Onstep the following are supported – computer, mobile phone,ZWO ASIAIR,NINA,WIFI,Bluetooth,Hand Controller,etc.

*Right ascension axis permanent magnet rake

*Data interface:USB2.0/WIFI/Serial over Bluetooth

*Guiding interface:USB2.0/WIFI/Serial over Bluetooth

*Low temperature can reach -30℃

*Must be at home position on startup

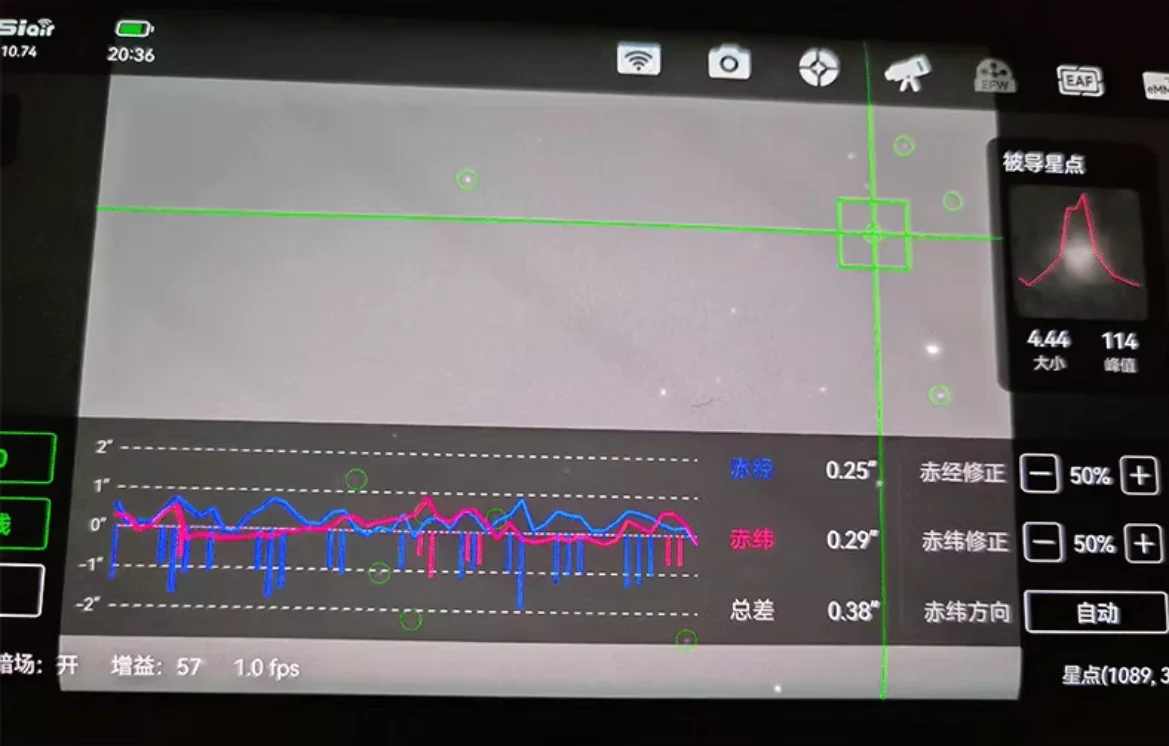

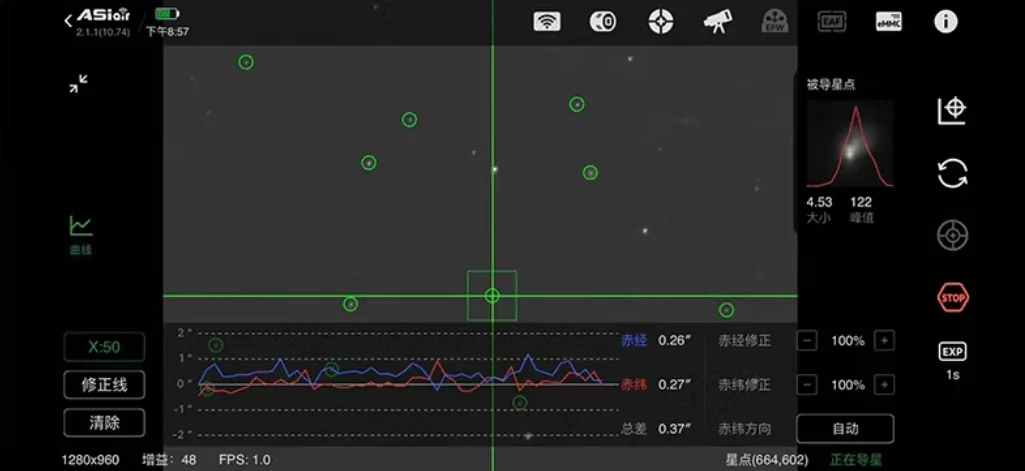

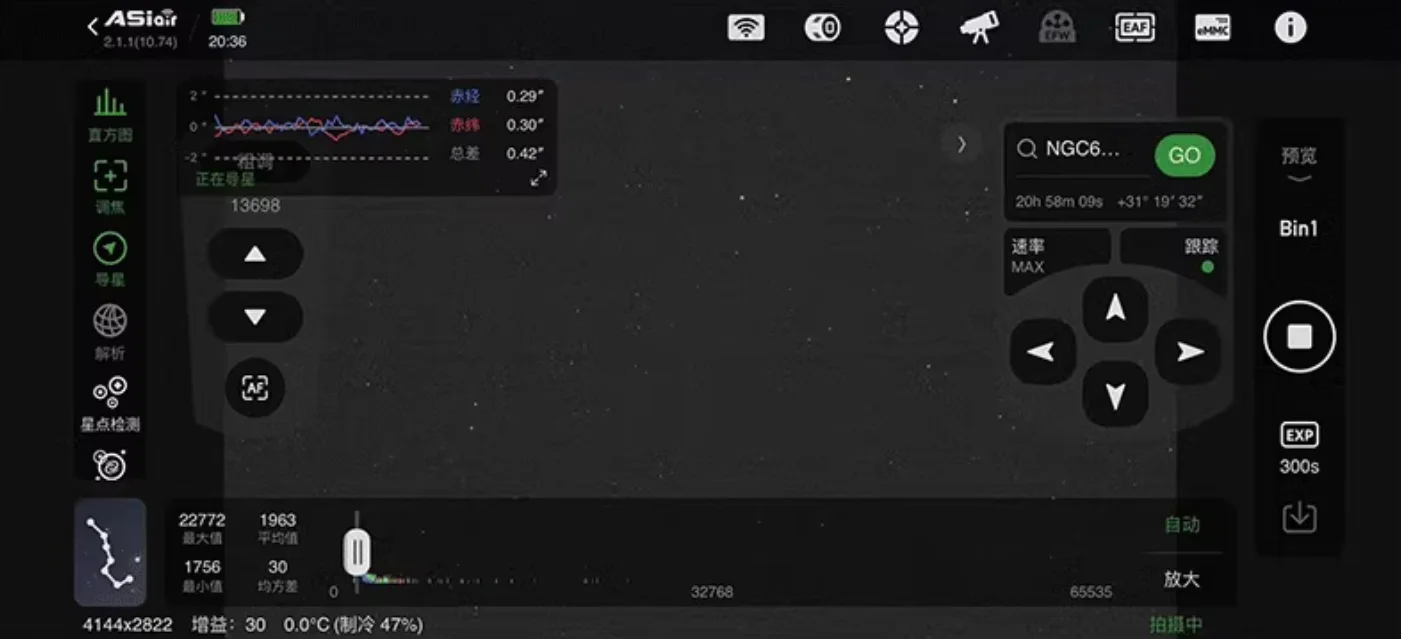

*Accuracy: 3.5kg（0.3-0.5 ）/ 8kg（0.4-0.7） /12kg（0.7-0.9）

Shipping list

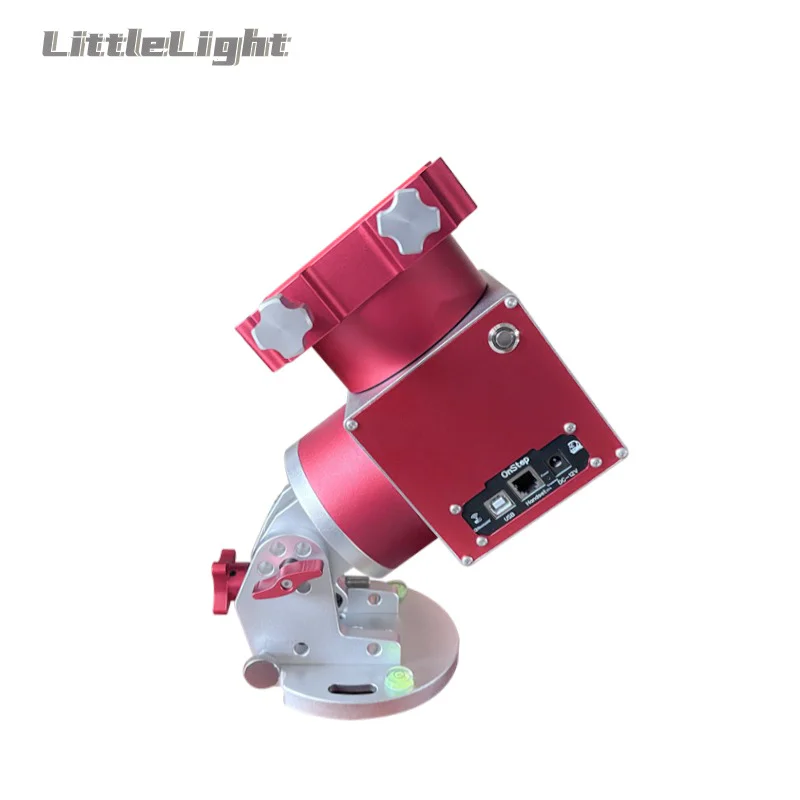

*The equatorial instrument body

*Counterweight bar base

*Counterweight bar

*Two horizontal Azimuth fine adjust screws

*Center post for Azm fine adjust

*USB cable

*Two downward pressure Azm locking crews with washers

*Hex wrench for Azm locking screws

*This product does not include a tripod

*Size after packaging: 380 * 300 * 250mm;

*The net weight of the product is 5.1KG;

*After packaging, the weight is 6.8KG.

Product Details

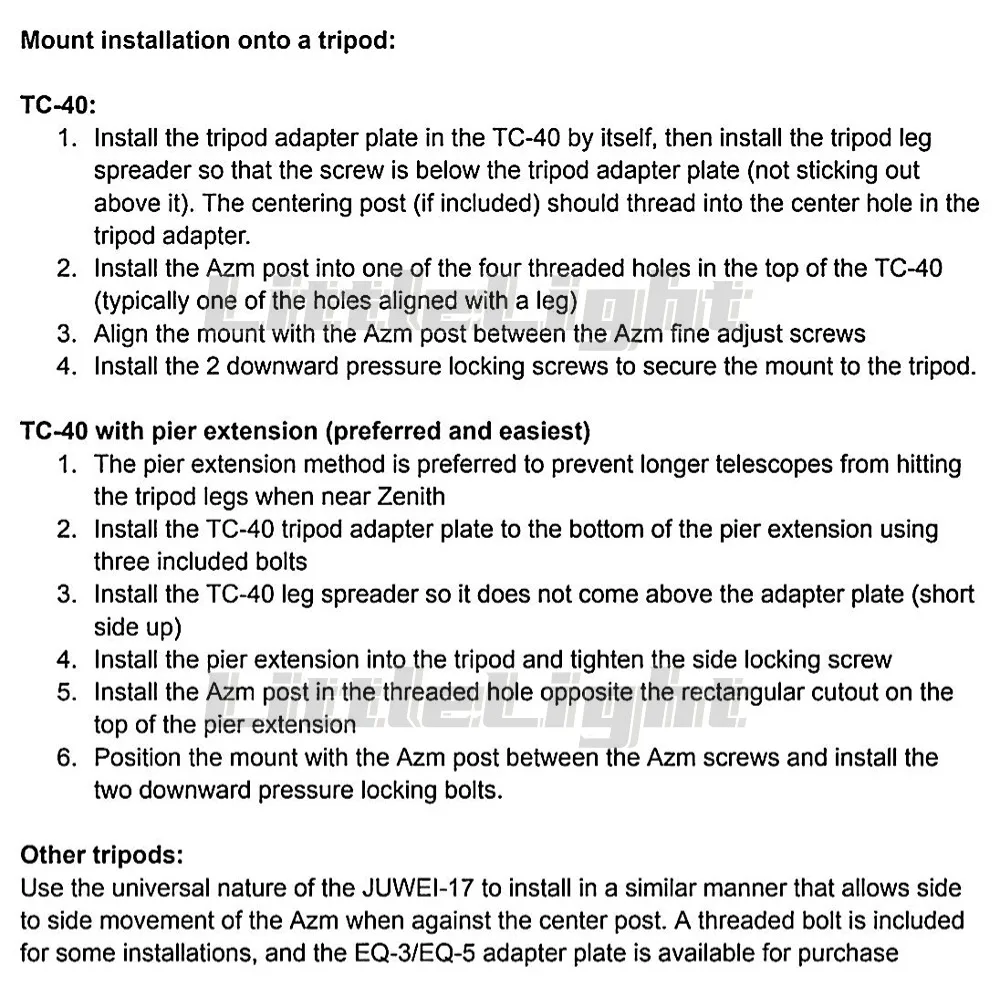

Instructions for use

For detailed information on Onstep usage , setup, development,assistance,troubleshooting, and community discussions,please visit

http://onstep.groups.io/g/main
