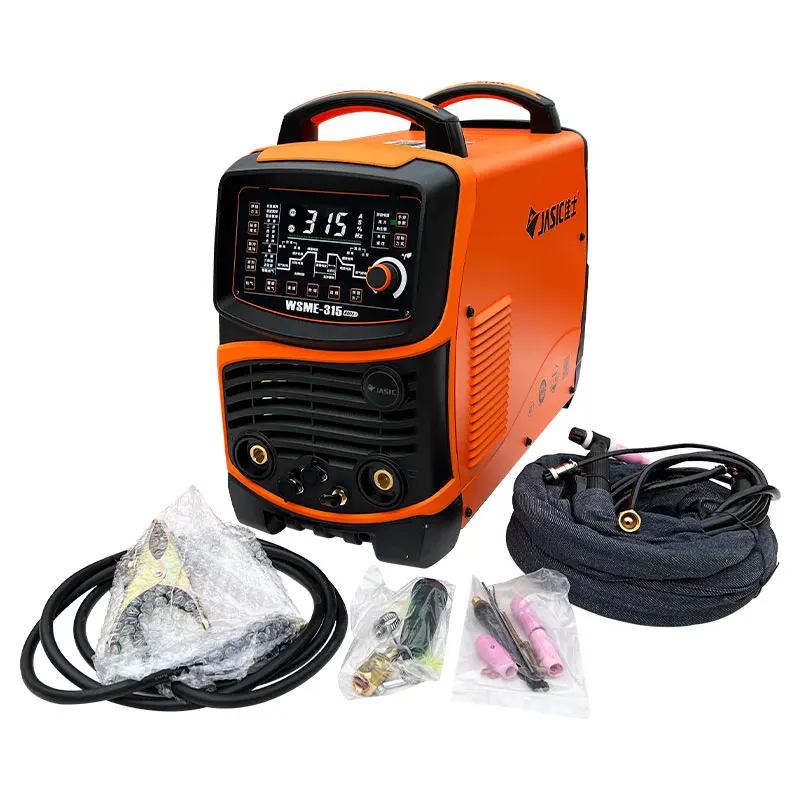

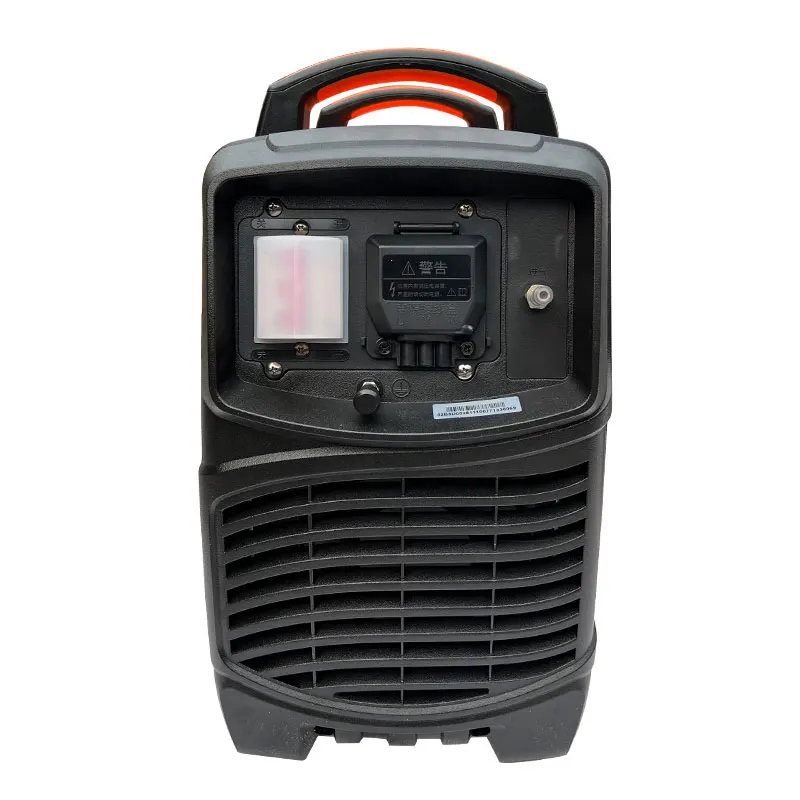

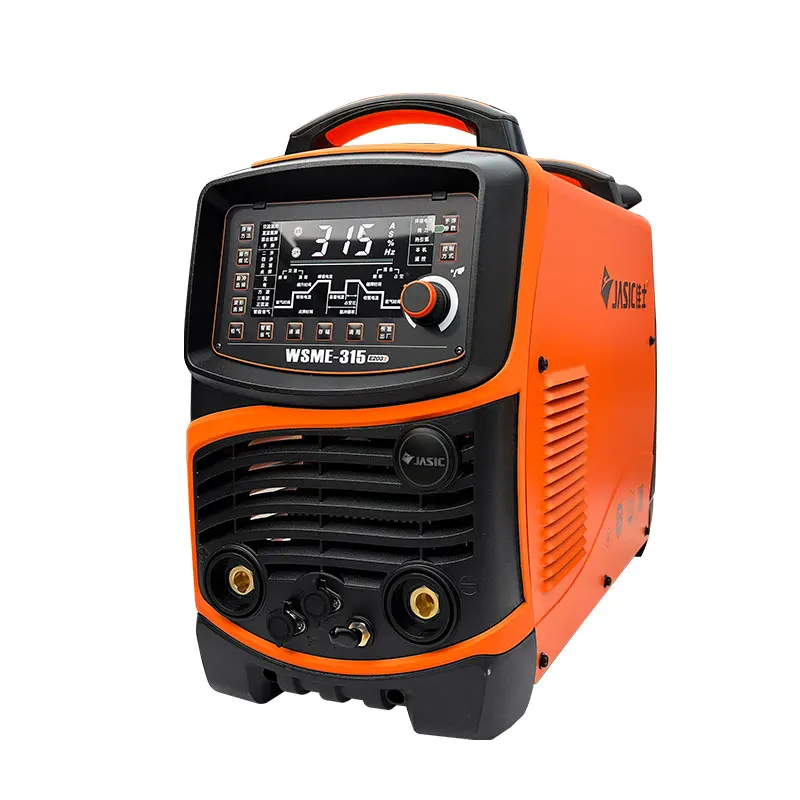

JA/SIC WSME-315 (E203II) Inverter TIG Welder Pulse AC/DC TIG Welding Machine
JA/SIC WSME-315 (E203II) Inverter TIG Welder Pulse AC/DC TIG Welding Machine - Image 2
JA/SIC WSME-315 (E203II) Inverter TIG Welder Pulse AC/DC TIG Welding Machine - Image 3
JA/SIC WSME-315 (E203II) Inverter TIG Welder Pulse AC/DC TIG Welding Machine - Image 4
JA/SIC WSME-315 (E203II) Inverter TIG Welder Pulse AC/DC TIG Welding Machine - Image 5
JA/SIC WSME-315 (E203II) Inverter TIG Welder Pulse AC/DC TIG Welding Machine - Image 6

JA/SIC WSME-315 (E203II) Inverter TIG Welder Pulse AC/DC TIG Welding Machine

Rp42.557.851
In Stock

This product has been added to 1 people'scarts.

Order on WhatsApp
In Stock
Add to wishlist
  • Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
  • Including shipping costs, sent by Supplyinx.com
  • Pick up at a supplyinx.com collection point is possible
  • 30 days to change your mind and free returns
  • Day and night customer service
SKU: 1005008818052896
Category:

Description

  • Hign-concerned Chemical: None
  • Origin: Mainland China
  • Brand Name: XMSJ
  • material / metal processed: Carbon Steel, Stainless Steel, Aluminium alloy
  • rated input voltage: 380 V
  • max. load power capacity: 10kva
  • output polarity: AC/DC TIG
  • rated duty cycle @40°c (tig): 35%
  • rated output current: 315A
  • rated output voltage: 65 V
  • Welding Current/Voltage Range: 10-315A
  • condition: New
  • place of origin: Shandong, China
  • brand name: jasic
  • pulse frequency: 50/60HZ
  • motor type: AC Motor
  • dimensions: 610*269*452mm
  • usage: Suitable for carbon steel, and so on
  • warranty: 1 Year
  • weight (kg): 31 KG
  • feature: INVERTER
  • Function: Inverter IGBT Welding Machine
  • Product name: High Frequency TIG Welding Machine
  • After-sales Service Provided: Online Support
  • Type: IGBT Module
  • Efficiency: 85% Inverter Welders
  • Welding material: Carbon Steel Stainless Steel Aluminium
  • Technology: Inverter IGBT Technology
  • Application: Aluminum Welder Machine
  • Input Power: AC 220/380V
  • Ac Dc Tig Welder: YES
  • Key Selling Points: Easy to Operate
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided

Model

WSME-315（E203Ⅱ）
input
Supply voltage
Three-phase AC380 +15%

Rated Input Capacity (kVA)
10

Power factor
0.85
Output
Rated no-load voltage (V)
65
TIG
Welding Current (A)
10～315

AC Output Frequency (Hz)
50～200

Cleanup Width
20～60%

Base Current
10-90% (percentage)

Pulse frequency@DC (Hz)
0.5～200

Pulse frequency@AC (Hz)
0.5～20

Front blowing time (s)
0～5

Back blowing time (s)
0～15

Rise time (s)
0～10

Decay time (s)
0～10

Remote control
Yes

Arc initiation mode
High frequency arc initiation
MMA
Welding Current (A)
10～270

Thrust Current (A)
0～100

Thermal arc initiation current (A)
0～80
Rated Load Sustainability @40 ℃

35%
Efficiency

80%
Protection Level

IP21S
Insulation Level

H
Shape size L*W*H(mm)

610*269*452
Weight (kg)

23.7
Package size L*W*H(mm)

710*310*600
Gross weight (kg)

30.5
