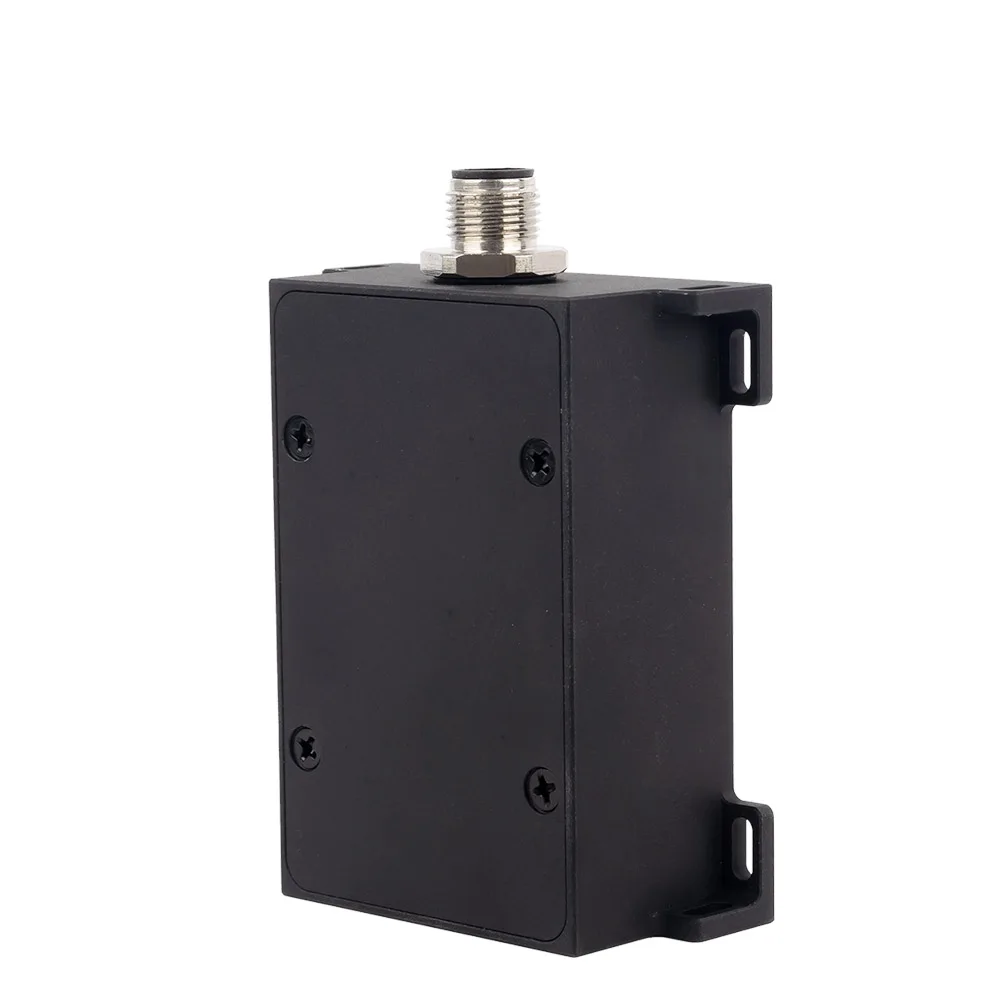

Industrial High Frequency 400Hz Infrared Laser Distance Sensor With Laser Pointer IP67 905nm Laser Rangefinder Sensor 100m
Industrial High Frequency 400Hz Infrared Laser Distance Sensor With Laser Pointer IP67 905nm Laser Rangefinder Sensor 100m - Image 2
Industrial High Frequency 400Hz Infrared Laser Distance Sensor With Laser Pointer IP67 905nm Laser Rangefinder Sensor 100m - Image 3
Industrial High Frequency 400Hz Infrared Laser Distance Sensor With Laser Pointer IP67 905nm Laser Rangefinder Sensor 100m - Image 4
Industrial High Frequency 400Hz Infrared Laser Distance Sensor With Laser Pointer IP67 905nm Laser Rangefinder Sensor 100m - Image 5
Industrial High Frequency 400Hz Infrared Laser Distance Sensor With Laser Pointer IP67 905nm Laser Rangefinder Sensor 100m - Image 6

Industrial High Frequency 400Hz Infrared Laser Distance Sensor With Laser Pointer IP67 905nm Laser Rangefinder Sensor 100m

Rp9.657.513
In Stock
Order on WhatsApp
Add to wishlist
  • Pre-Order Available (Estimated ±15 Day Delivery)
  • 7 day unit replacement guarantee(Video Unboxing Required)
  • Including shipping costs, sent by Supplyinx.com
  • Pick up at a supplyinx.com collection point is possible
  • 24/7Customer service
SKU: 1005009126877074
Category:

Description



Deskripsi Produk

Industrial 400Hz Infrared Laser Distance Sensor adalah sensor pengukur jarak berbasis laser dengan frekuensi tinggi hingga 400Hz, dirancang untuk aplikasi industri yang membutuhkan pengukuran cepat, presisi, dan stabil. Dengan panjang gelombang 905nm serta jangkauan hingga 100 meter, sensor ini mampu memberikan data jarak real-time untuk mendukung sistem otomasi, robotika, maupun monitoring industri.

Sensor ini dilengkapi laser pointer untuk memudahkan penyelarasan target, serta sertifikasi IP67 yang menjadikannya tahan debu dan air sehingga andal digunakan di lingkungan industri berat maupun outdoor.

Keunggulan Produk

  • Frekuensi Tinggi 400Hz: Mendukung pengukuran cepat dan real-time.

  • Jangkauan 100 Meter: Akurasi tinggi untuk aplikasi jarak menengah.

  • Laser Pointer Terintegrasi: Memudahkan penentuan target pengukuran.

  • Panjang Gelombang 905nm: Kelas laser aman untuk pengukuran presisi.

  • Proteksi IP67: Tahan debu dan air, cocok untuk kondisi lapangan ekstrem.

  • Stabil & Andal: Performa konsisten dalam berbagai aplikasi industri.

  • Integrasi Mudah: Kompatibel dengan berbagai sistem kontrol dan otomasi.

Pengaplikasian

  • Robotika & AGV: Navigasi presisi dan obstacle detection pada kendaraan otonom.

  • Otomasi Industri: Kontrol jarak, pengukuran posisi, dan monitoring proses produksi.

  • Transportasi & Logistik: Sistem deteksi dan pengukuran otomatis di pergudangan.

  • Konstruksi & Pertambangan: Monitoring jarak dan pemetaan site kerja.

  • Energi & Infrastruktur: Digunakan untuk inspeksi jarak pada fasilitas utilitas.

  • Keamanan & Pertahanan: Aplikasi rangefinder pada sistem pengawasan dan perangkat taktis.

Products Description
PTFS-P4 Laser
 Rangefinder Sensor
The PTFS-P4 is an enhanced version of the PTFS laser rangefinder sensor, engineered for demanding industrial and outdoor environments. Building upon the proven performance of the original PTFS, the PTFS-P4 introduces two major upgrades: an IP67-rated protective housing and an integrated laser pointer for convenient targeting.
Product Parameters
Range
3-400/700/1100/1300m
Maximum Single Measurement Time
About 1s
Absolute Accuracy
±1m
Frequency
3 Hz
Resolution
0.1m
Light
905 nm Class I
Voltage
3-5V
Current
100mA
Power
330mW
Operating temperature
-20~60鈩�
Communication Interface
TTL/RS232/RS485/Bluetooth
Serial level
TTL 3.3V
Size
80*65*32.3mm
Weight
188g
Product Details
Application






Person and vehicle monitoring



This laser ranging sensor can be used for road measurement detection and indoor humanoid detection, which is more private than the camera







UAV Distance Measurement



It can be combined on the UAV for high-altitude long-range accurate ranging, and different frequencies can be customized for different application scenarios.







See-In-Dark Rangefinder



Our range sensors can be combined with night vision and thermal imagers to accurately measure the distance of objects at night.



Berthing Approach System



The laser distance sensor monitors the distance between the vessel and the dock in real time, helping the captain to accurately control the berthing speed and position, ensuring a safe and error-free berth and avoiding collisions and damage.



Vehicle Anti-Collision
