Description

Deskripsi Produk

Huepar 4D 16-Line Green Beam Laser Level adalah alat ukur laser presisi tinggi dengan 16 garis laser hijau yang terang dan jelas, dirancang khusus untuk kebutuhan konstruksi profesional. Dilengkapi dengan fitur self-leveling otomatis, alat ini memastikan garis tetap lurus dan akurat meskipun digunakan di berbagai kondisi lapangan.

Produk ini dilengkapi dengan remote control untuk pengoperasian jarak jauh, serta LCD display yang memudahkan pembacaan status alat. Dengan cross line receiver kit, alat ini mampu digunakan pada jarak lebih jauh dan di area dengan cahaya terang, menjadikannya solusi ideal untuk proyek konstruksi maupun pekerjaan interior yang membutuhkan akurasi maksimal.

Keunggulan Produk

• 4D Laser dengan 16 Garis: Memberikan cakupan 360° horizontal dan vertikal untuk pengukuran presisi.

• Laser Hijau Terang: Lebih terlihat dibanding laser merah, terutama di area terang.

• Self-Leveling Otomatis: Memastikan garis selalu lurus tanpa perlu penyesuaian manual.

• Remote Control: Memudahkan pengoperasian dari jarak jauh.

• LCD Display: Menyediakan tampilan informasi yang jelas dan praktis.

• Cross Line Receiver Kit: Mendukung pengukuran jarak jauh dengan stabilitas tinggi.

• Desain Kokoh: Tahan terhadap kondisi lapangan dan penggunaan intensif.

Pengaplikasian

• Konstruksi Bangunan: Pemasangan dinding, plafon, lantai, dan partisi dengan akurasi tinggi.

• Pekerjaan Interior: Pemasangan keramik, kitchen set, dan furniture built-in.

• Instalasi Listrik & Plumbing: Membantu penempatan pipa, kabel, dan saklar dengan presisi.

• Survey & Layout Proyek: Mendukung perhitungan garis kerja dan leveling di area proyek.

• Dekorasi & Renovasi Rumah: Cocok untuk pekerjaan presisi seperti pemasangan wallpaper atau panel dekoratif.

Huepar 4D 16-Line Green Beam Laser Level with Remote Control, LCD Display,Self-Leveling Cross Line Receiver Kit for Construction

Huepar Z04CG 4 x 360° Green Beam Floor Laser Level with LCD Screen Specifications:

Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output

Screen Type: LCD screen with backlight

Laser Wavelength: 510-530nm

Horizontal/Vertical Accuracy: ±3mm/10m

Leveling/Compensation Range: ±3mm/10m

Working Distance: 40m or 80m,with Huepar Receiver LR-5RG/LR-6RG//LR-6RG

Power Source: 7.4V/2600mah & 4×AA (LR6) batteries

Operating Time: with Li-ion Battery: 5 hours with all laser beams on; with AA Batteries: 0.5 hours with all laser beams on

Package: Hard Carry Case

IP Rating: IP54 dust-proof, waterproof and shockproof, reliable and tough

Charger:5V 2A

Charging Time:About 4.5 hours

Mount Size: 1/4″-20

WARNING: Avoid direct exposure of the laser beam to the eyes.

Items in the Package:

Z04CG Green Laser Level+L-Shape Multifunctional Wall Bracket+Laser Level Base AT-2+Type-C Cord+2 x 2600mAh Li-ion Batteries+AA Battery Compartment+4 x AA battery ( AA battery is not included if from China)+Green Target+Power Adapter+Wall Hanging Plat+Remote Control+5/8″ Threaded adapter+Cloth Bag+Multi-language User Manual+LR-5RG Detector(Orange or Green Shell will be sent randomly)

AA battery is not included if ships from China!!!!

Huepar Z04CG 4 x 360° Green Beam Floor Laser Level with LCD Screen Feature:

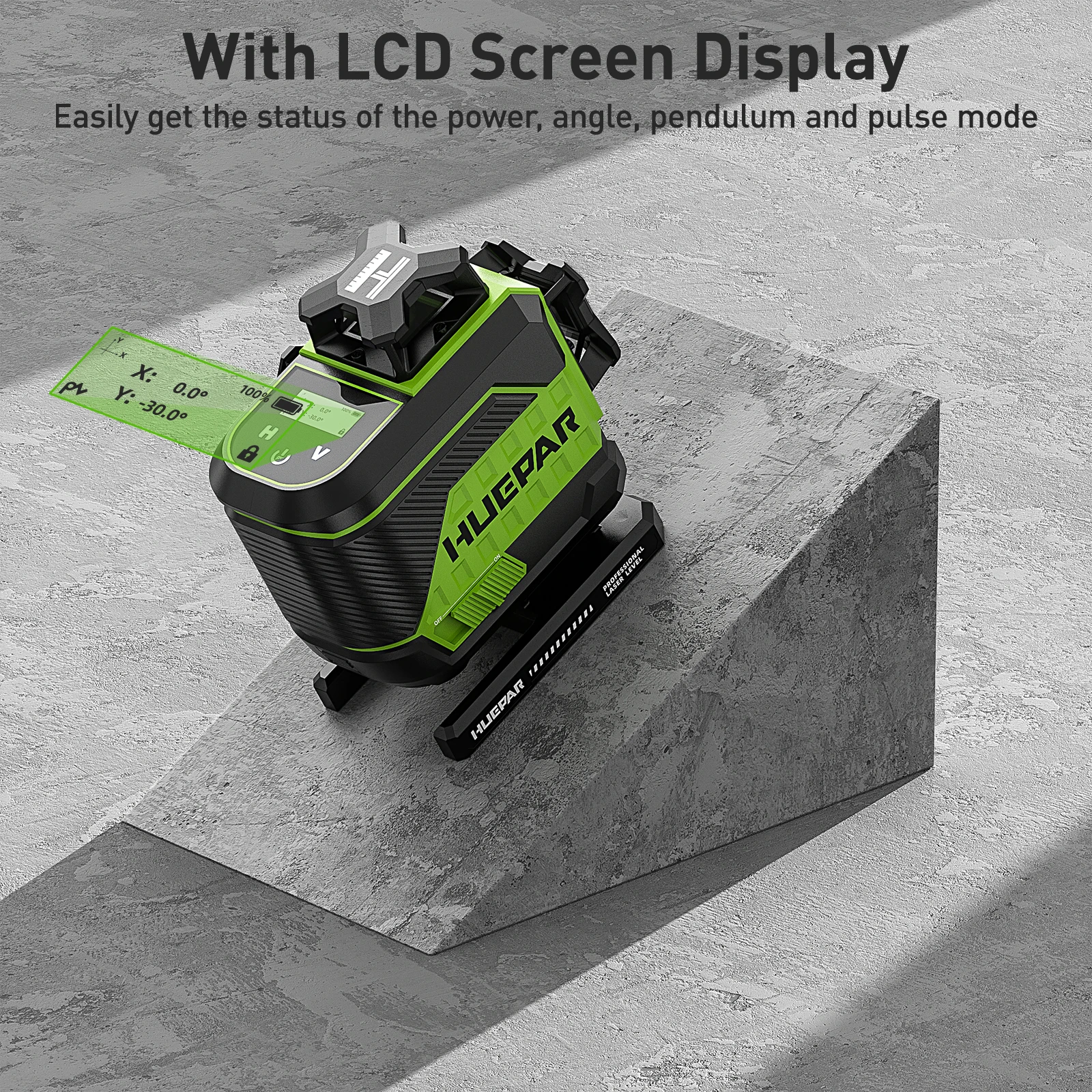

With LCD Display Screen:

The laser level kit features LCD screen display.Users can easily get the status of the power, angle, pendulum and pulse mode on the display.

4×360° Laser Lines Switching With Remote Control Function:

Short press H and V button on the keypad to switch the Horizontal and Vertical laser lines separately.The remote control enables to Turn ON /OFF the laser lines and switch four 360° laser lines individually at a distance up to 33Ft.With the remote control, users can also turn on/off the pulse mode.The laser lines can be selected separately according to job requirements.

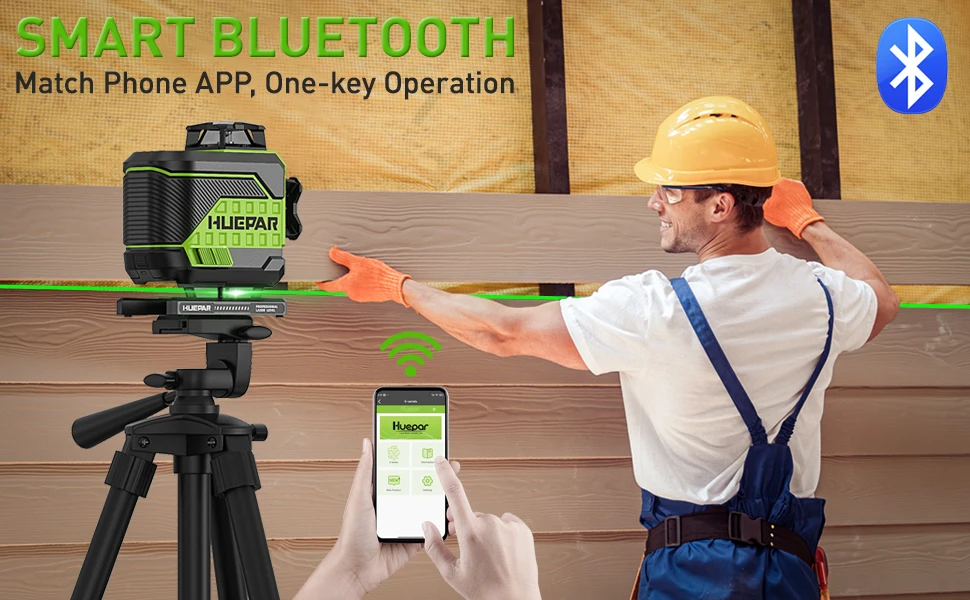

Connected With Smart Bluetooth:

Connect Z04CG Laser Level with Free Huepar APP via Bluetooth Technology, users can control the laser tool by Mobile phone.The laser tool can connect two phones at the same time, whether on Android or iOS.The functions of the laser tool can be easily operated with the Bluetooth feature.

2 x Li-ion Batteries & AA Batteries Supplied:

With 2pcs Large-capacity li-ion battery: 5 hours of extra-long working. The batteries could be also charged by the Type-C cord.Direct input charging: This laser tool can be used at job site with direct input charging even if take out the battery.Charging protection help prevent the tool from overcharge.It could be also worked with 4pcs AA battery for 0.5h usage, fully meet your usage needs.

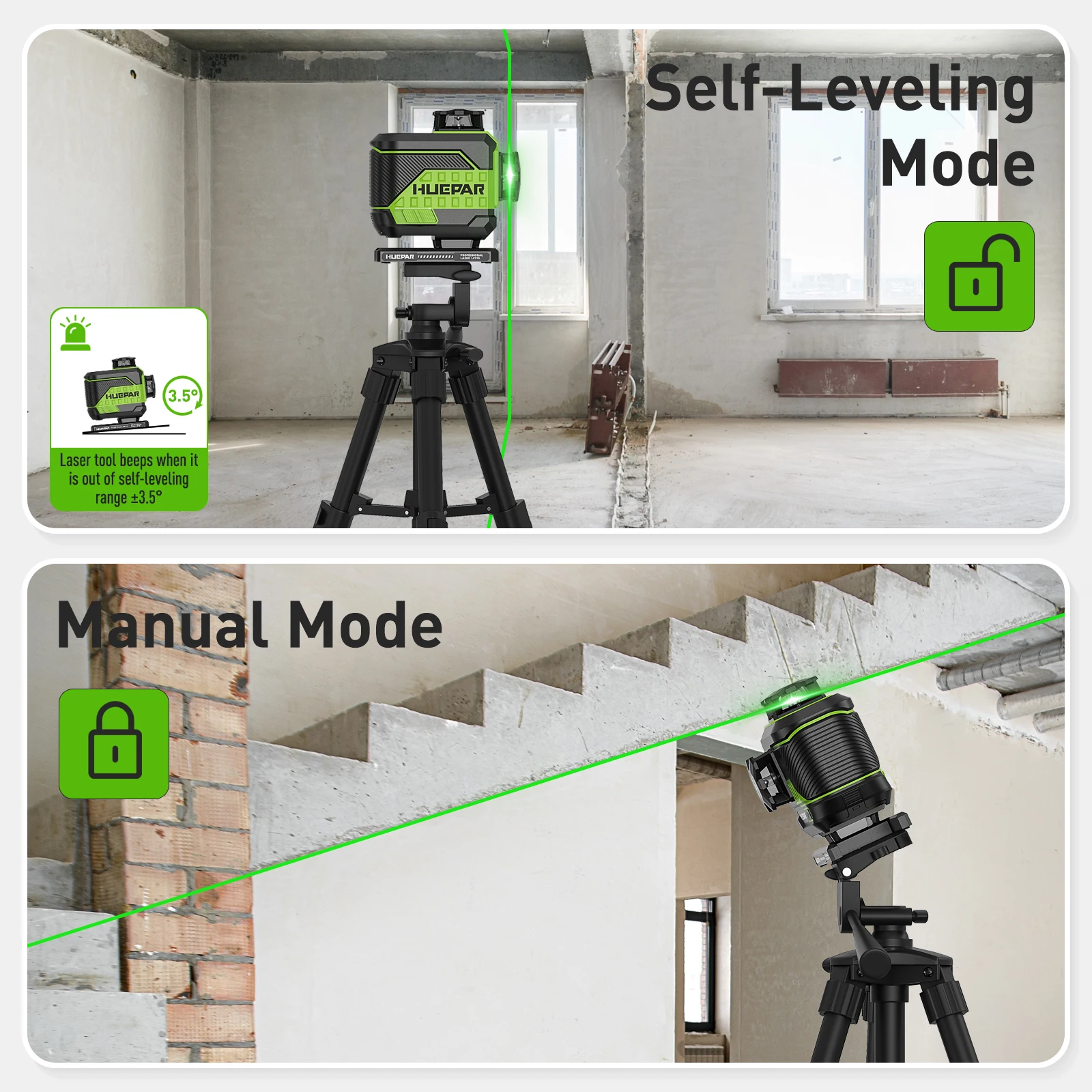

Self-leveling mode:Once the pendulum unlocked, self-leveling mode is enabled.The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±3.5°.

Manual mode:When the pendulum locked, the laser tool can be placed for use at any angle.The laser beam will blink every 3-5 seconds to remind you it’s not self-leveling now.

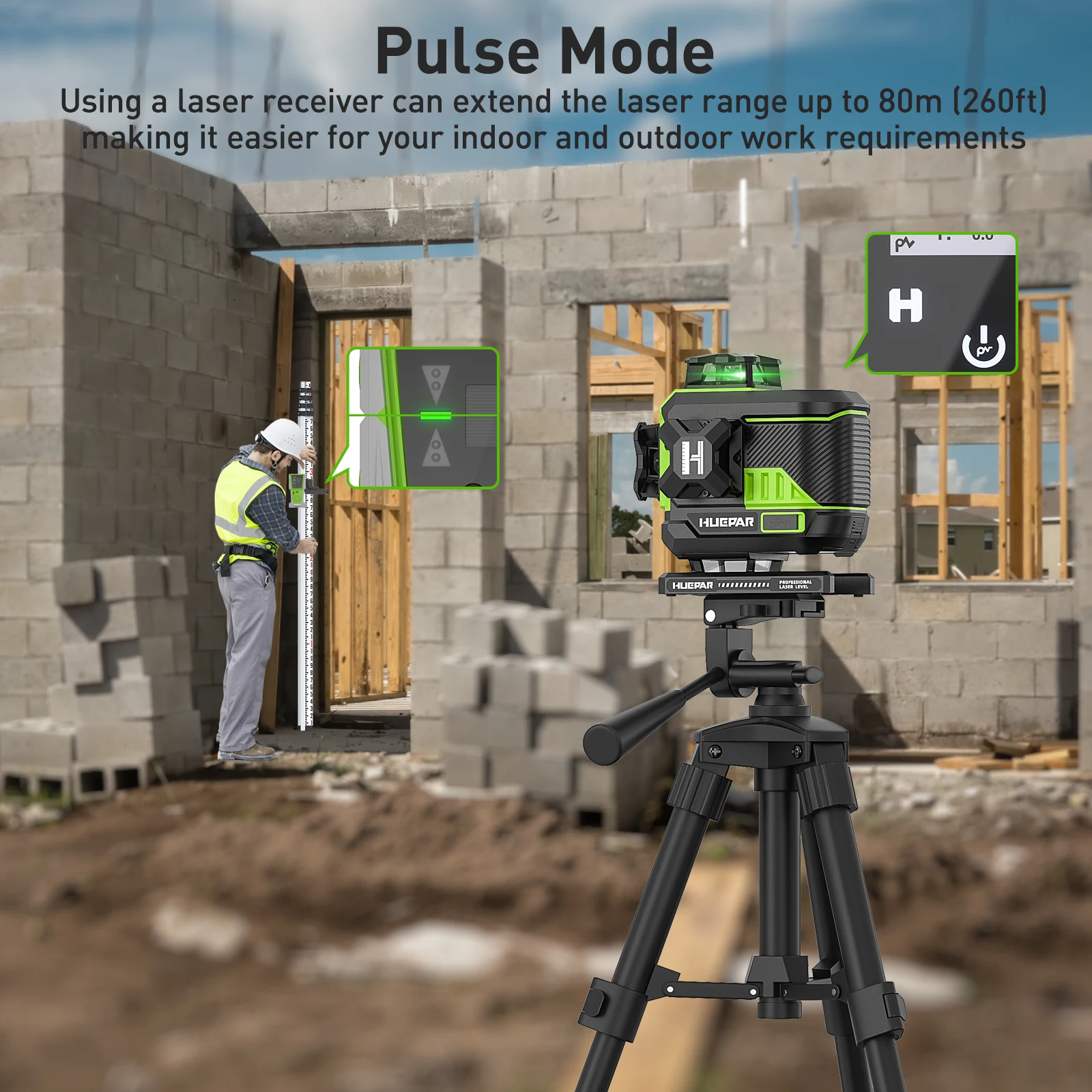

Pulse Mode:How to turn on the pulse mode? – Turn on the laser tool, short press power button to switch to Pulse Mode. The laser beams are dimmer in pulse mode.Pulse mode extends the working range up to 260Ft. in brighter working conditions when using with Huepar Line Laser Receiver.It is compatible with Huepar LR-8RG&LR-5RG Line Laser Receiver only.

Multiple Installation Method:

Strong Magnetic L-shape Pivoting Base: Allows for attachment to metal track and steel.The package also includes the laser level base of AT-2, it is good to use when you need to put the level face.Mount Size: 1/4″-20 mounting thread for temporarily fastening in place or being fixed on tripod. We do supply the 5/8″ threaded adapter in the package.

IP54 Waterproof and Rustproof Can be used in any harsh construction environment to extend service lift.
