Huepar 16 Lines Laser Level With Receiver Tripod Rangefinder 4D Green Self-level Bluetooth Laser Tool Remote Control & Hard Case
Huepar 16 Lines Laser Level With Receiver Tripod Rangefinder 4D Green Self-level Bluetooth Laser Tool Remote Control & Hard Case - Image 2
Huepar 16 Lines Laser Level With Receiver Tripod Rangefinder 4D Green Self-level Bluetooth Laser Tool Remote Control & Hard Case - Image 3
Huepar 16 Lines Laser Level With Receiver Tripod Rangefinder 4D Green Self-level Bluetooth Laser Tool Remote Control & Hard Case - Image 4
Huepar 16 Lines Laser Level With Receiver Tripod Rangefinder 4D Green Self-level Bluetooth Laser Tool Remote Control & Hard Case - Image 5
Huepar 16 Lines Laser Level With Receiver Tripod Rangefinder 4D Green Self-level Bluetooth Laser Tool Remote Control & Hard Case - Image 6

Huepar 16 Lines Laser Level With Receiver Tripod Rangefinder 4D Green Self-level Bluetooth Laser Tool Remote Control & Hard Case

Rp5.779.711 – Rp6.733.411Price range: Rp5.779.711 through Rp6.733.411
In Stock
Order on WhatsApp
Add to wishlist
  • Pre-Order Available (Estimated ±15 Day Delivery)
  • 7 day unit replacement guarantee(Video Unboxing Required)
  • Including shipping costs, sent by Supplyinx.com
  • Pick up at a supplyinx.com collection point is possible
  • 24/7Customer service
SKU: 1005006154212493
Category:

Description

Huepar 16 Lines 4D Laser Level adalah paket lengkap alat ukur presisi tinggi dengan green beam super terang yang mampu memproyeksikan garis horizontal & vertikal penuh (360°). Dilengkapi dengan receiver, tripod, rangefinder, remote control, Bluetooth function, dan hard case, alat ini dirancang untuk mempermudah pekerjaan konstruksi, pemasangan interior, serta pekerjaan leveling presisi.

Spesifikasi Utama

  • Model: Huepar 4D 16 Lines Laser Level

  • Laser Beam: 16 garis (4D) green laser, visibilitas tinggi

  • Range Proyeksi: ±30 m (dapat diperluas dengan receiver hingga ±60 m)

  • Akurasi: ±2 mm/10 m

  • Self-Leveling: Otomatis ±3°, dengan mode manual (tilt mode)

  • Kontrol: Remote control & koneksi Bluetooth via aplikasi

  • Receiver: Untuk jarak kerja lebih jauh & kondisi terang

  • Power Supply: Baterai Li-ion isi ulang + adaptor AC

  • Tripod: Aluminium adjustable untuk kestabilan optimal

  • Hard Case: Pelindung kokoh untuk penyimpanan & transportasi

  • Tambahan: Built-in rangefinder untuk pengukuran cepat

Pengaplikasian

  • Konstruksi & renovasi bangunan

  • Pemasangan plafon, dinding, partisi & lantai keramik

  • Instalasi listrik & pipa

  • Interior design & finishing

  • Proyek leveling presisi tinggi





Huepar 16 Lines Laser Level With Receiver Tripod Rangefinder 4D Green Self-level Bluetooth Laser Tool Remote Control & Hard Case

Huepar P04CG Sets 4D Cross Line Green Laser Level Specifications:



Laser Class:

Class 2 (IEC/EN60825-1/2014),
<1mW power output

Laser Diode:

Germany Osram diode

Laser Wavelength:

505-520nm

IP Rating:

IP54, waterproof, dustproof,

shockproof, reliability & robustness

Horizontal / Vertical Accuracy:

±1/9 inch at 33Ft (±3mm/10m)

Compensation Range:

±4°

Mount Size:

1/4″-20

Leveling Time:

3s

Laser Light 12 Line:

3x 360° (4/8/12/lines are adjustable)

Power Source:

10.8V / 2600mAh Li-ion battery

Working Distance:

40m/130Ft (100LUX),
60m(200ft) with LR-8RG/LR-5RG/

LR-6RG

Charging Port:

Type-C

Applicable Scenarios:

Indoor & outdoor

Reference Operating Time:

About 7 hours with all laser beams on

Storage temperature:

Between -20℃and +70℃

Package:

With Hard Carry Case

Operating Temperature:

Between -10℃and +50℃



Warning:

Avoid direct exposure of the laser beam to the eyes.The laser would be affected by strong sun light when work outside.



Package Contents:





Main Photo Package Contents – SET5:



1 x Huepar P04CG 4D Cross Line Laser Level

1 x Huepar Laser Receiver LR-8RG/LR-5RG/LR-6RG (send by random)

1 x Huepar Tripod TPD14

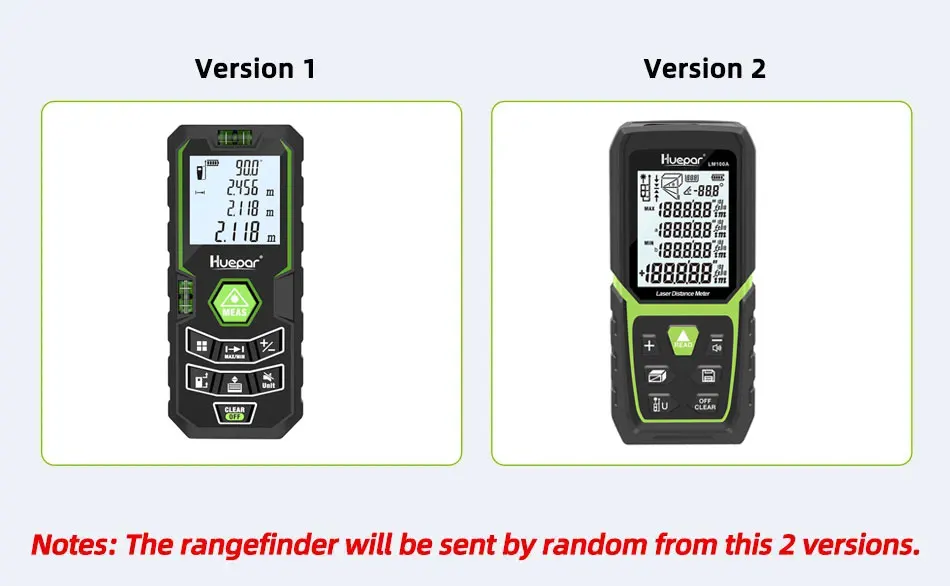

1 x Huepar Rangefinder X6-LM100 / LM100A

1 x Bluetooth Remote Control

1 x Rechargeable Li-ion Battery

1 x Power Adapter & Type-C cord

1 x Magnetic Bracket

1 x Steel Sheet

1 x Laser Target Plate

1 x Hard Carry Case

1 x User Manual

Features Of Huepar P04CG

Bluetooth & Remote control:

  • Bluetooth connectivity enables to control the setup of the laser from across the room with Huepar App on smart phone or remote control.

  • The App and remote control can switch ON/OFF the laser lines and pulse mode, select the laser planes. Huepar App also provides out-of-level alarm.

  • The laser tool can connect two Bluetooth devices simultaneously.

  • With the remote control, your alignment job becomes simple and fast.

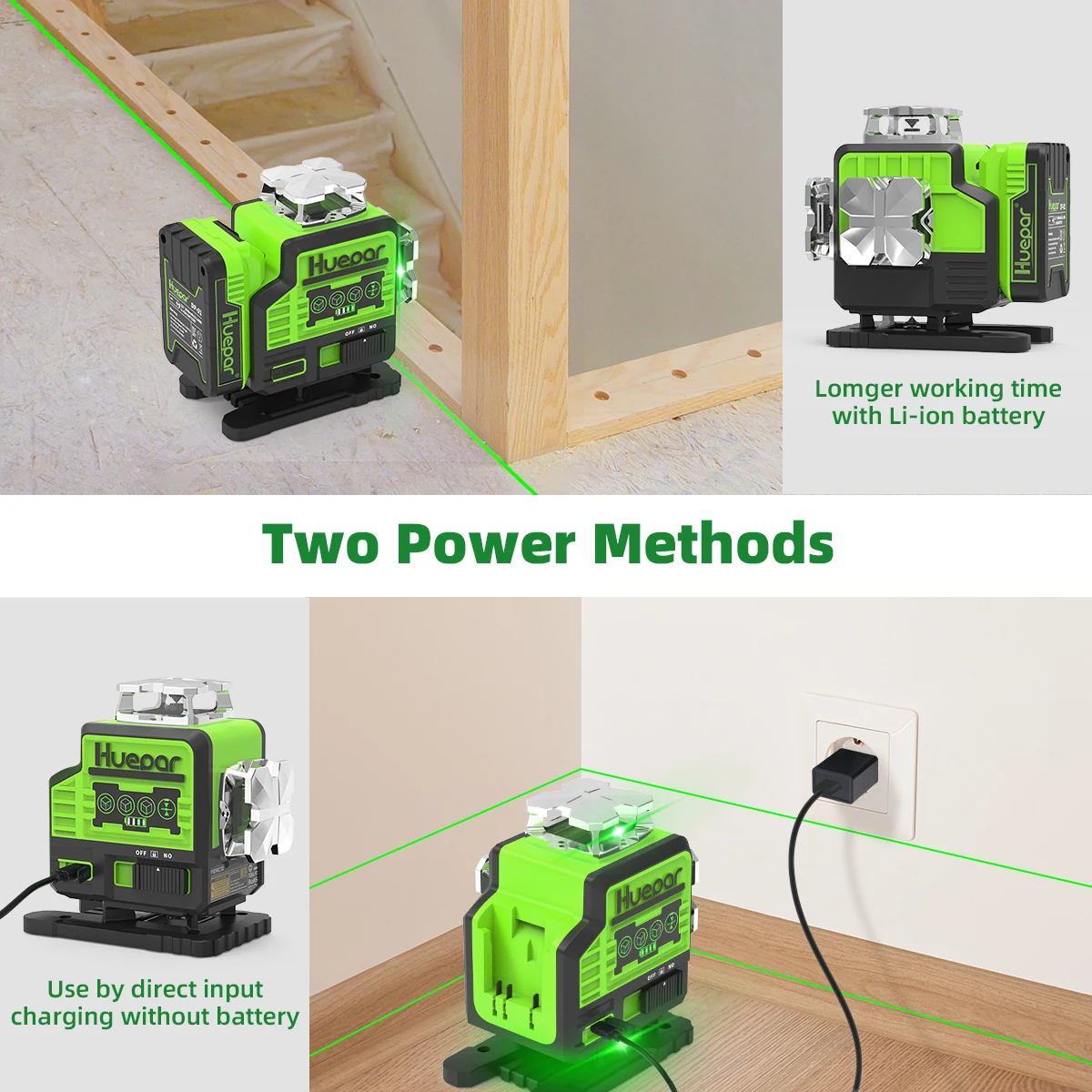

Large capacity Li-ion battery&Two Power Methods

  • 10.8V / 2600mAh Li-ion battery and provides 7 hours running time.

  • The Li-ion battery pack can be quick to release and install is very easy to use.

  • The Li-ion Battery can be charger separately and the four power indicators on the battery allow users to know the charging status. When taking out the battery, the cross line laser level can be used at the job site by plugged in directly.

  • With Type-C charging port, the laser level can also be charged by phone, laptop, power bank, car charger, etc. Charging protection help prevent the tool from overcharge.



Multifunctional laser tool:

  • Huepar Laser Level have two horizontal 360° plane, two vertical 360° planes, 16 laser lines, which can cover the floor, walls and ceiling all around the room.

  • Horizontal lines and vertical lines cross at 90°angles help you to visualize quickly and finish square layout.

  • Each button on this laser level corresponds to a single laser line, you can easily choose to turn on/off any laser line.



Self-leveling mode&Manual mode:




  • Self-leveling mode:When the pendulum slides to the“ ON” position, the self-leveling mode is enabled.

  • The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±4.

  • Manual mode:When the pendulum is in the middle position, the laser tool can be placed for use at any angle.

  • The laser beam will blink every 3-5 seconds to remind you it’s not self-leveling now.

  • The locked icon will be displayed on Huepar APP to remind user it is in manual mode now.

Metal laser window:

  • Over-molded metal laser window with IP54 water/dust resistance withstands tough job site conditions and can be removed and replaced with a screwdriver.

  • The kit comes with a hard carry case bringing much more convenience to carry and store the laser tool.



Multi-function magnetic bracket

  • This green line laser offers 1/4″-20 and mounting threads for being fixed on tripod or magnetic bracket.

  • The strong magnetic bracket allows for quick positioning to metal surfaces helping hang the laser level for wall applications and can be rotated to the required angle.

  • The magnetic base also has 1/4″-20 & 5/8″-11 mounting threads to suit for different tripod threads.

Pulse Mode:

  • When connecting with Huepar APP and the Bluetooth Remote Control, the pulse mode can be switched ON/OFF via APP.

  • Pulse mode extends the working range up to 200Ft in brighter working conditions when using with Huepar Line Laser Receiver.

  • It is compatible with Huepar LR-8RG / LR-6RG / LR-5RG Laser Detector only.

  • Note: Keep the pulse mode on when using with a receiver.
