Huepar 12 Lines 3D Laser Level High Accuracy ±2mm/10m Self-leveling Green Beam 360°Cross Line Laser Tools With Li-ion Battery
Huepar 12 Lines 3D Laser Level High Accuracy ±2mm/10m Self-leveling Green Beam 360°Cross Line Laser Tools With Li-ion Battery - Image 2
Huepar 12 Lines 3D Laser Level High Accuracy ±2mm/10m Self-leveling Green Beam 360°Cross Line Laser Tools With Li-ion Battery - Image 3
Huepar 12 Lines 3D Laser Level High Accuracy ±2mm/10m Self-leveling Green Beam 360°Cross Line Laser Tools With Li-ion Battery - Image 4

Huepar 12 Lines 3D Laser Level High Accuracy ±2mm/10m Self-leveling Green Beam 360°Cross Line Laser Tools With Li-ion Battery

Rp4.314.481 – Rp5.178.591Price range: Rp4.314.481 through Rp5.178.591
In Stock
Order on WhatsApp
Add to wishlist
  • Pre-Order Available (Estimated ±15 Day Delivery)
  • 7 day unit replacement guarantee(Video Unboxing Required)
  • Including shipping costs, sent by Supplyinx.com
  • Pick up at a supplyinx.com collection point is possible
  • 24/7Customer service
SKU: 1005008551384435
Category:

Description

Deskripsi Produk

Huepar 12 Lines 3D Laser Level adalah alat ukur laser presisi tinggi dengan proyeksi 360° cross line (horizontal & vertikal). Menggunakan green beam laser yang lebih terang dan jelas dibandingkan laser merah, alat ini memberikan akurasi hingga ±2mm/10m. Dilengkapi sistem self-leveling otomatis dan baterai Li-ion isi ulang, perangkat ini sangat andal untuk konstruksi, instalasi, maupun dekorasi interior dengan kebutuhan presisi tinggi.

Fitur Utama

  • 12 Garis 3D (360°): Mendukung cakupan penuh horizontal dan vertikal.

  • Akurasi Tinggi ±2mm/10m: Memberikan hasil pengukuran presisi.

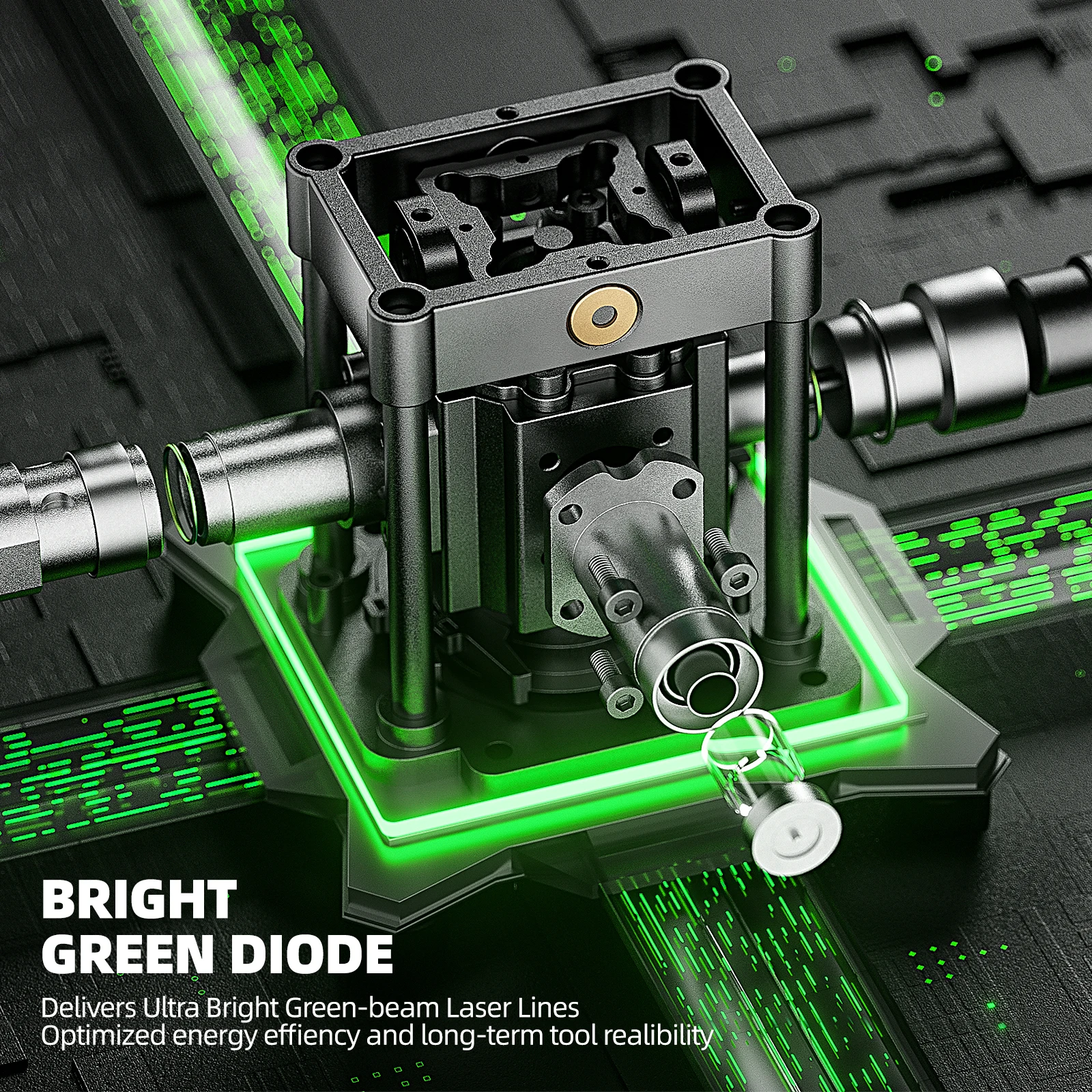

  • Green Beam Laser: 4x lebih terlihat dibanding laser merah, cocok untuk area terang.

  • Self-Leveling Otomatis: Memastikan garis tetap lurus meski ada kemiringan kecil.

  • Baterai Li-ion Isi Ulang: Daya tahan lama dan lebih praktis dibanding baterai biasa.

  • Multi Fungsi: Cocok untuk leveling, perataan, marking, dan pemasangan interior.

  • Desain Kokoh & Ergonomis: Tahan untuk penggunaan intensif di lapangan.

Pengaplikasian

Huepar 12 Lines 3D Laser Level digunakan dalam:

  • Proyek konstruksi untuk perataan pondasi, struktur, dan pemasangan kerangka.

  • Instalasi interior seperti plafon, partisi, keramik, wallpaper, hingga furniture.

  • Pekerjaan MEP (mekanikal, elektrikal, plumbing) dengan kebutuhan garis presisi.

  • Dekorasi & renovasi rumah untuk hasil rapi dan akurat.

  • Survey ringan & pengukuran lapangan dengan efisiensi tinggi.



Huepar 3D 12 Lines Laser Level High Accuracy ±2mm/10m Self-leveling Cross Line Green Laser Tools With Li-ion Battery ZK03CG-L

LR-5RG,LR-6RG and LR-8RG detector will be sent randonly!Please be noted !

Huepar 3D 12 Lines High Accuracy ±2mm/10m Laser Level Specifications:



Laser Class:Class 2 (IEC/EN60825-1/2014), <1mW

Power Source:3.7V/8000mAh Li-ion Battery

Operating Time:About 10 hours

Laser Wavelength:505-520nm

Charging Time:About 5 hrs with 5V/2A adapter

Leveling Accuracy:±2mm/10 or 1/13″ at 33Ft.

Mount Size:1/4″-20
Compensation Range:±3°

Charging Port:Type-C

Self-leveling Time:≤3 Seconds
Reference

Working Distance:30m, 98Ft.(60-100 LUX)
Reference

Working Distance:40-60m/197Ft. with Laser Receiver

IP Rating:IP54

Work Temperature:14℉~ 122℉(-10℃~ 50℃)

Storage Temperature:-4℉~ 158℉(-20℃~ 70℃



Package Contents:

1x ZK03CG Laser Level

1x 8000mAh Li-ion Battery

1x PV3 Magnetic Bracket

1x Remote Control

1x Green Target

1x Typc-C Power Cord

1x Hard Carry Case

1x User Manual



Huepar 3D 12 Lines High Accuracy ±2mm/10m Laser Level Feature:



High Accuracy ±2mm/10, ±1/13 inch at 33F

From a large number of laser level modules, high precision modules are selected and specially tuned by hand to produce a laser level with an accuracy of 2mm at 10m.
The percentage of high-precision modules in the total number of modules is only 10%.
Short press the “H” and “V” buttons on the keypad to switch the Horizontal and Vertical laser lines separately.

The remote control enables to select the 4 x 360° laser lines individually at a distance up to 32.8Ft.
The laser line(s) can be temporarily turned OFF by the remote control when need to leave for a while.



8 Hours Working Time With all beams on
8000mAh rechargeable Li-ion battery support the laser level to work for 10 hours with all three360° laser beams on.
Type-C charging port can be used to charge the battery through car charger, rechargeable treasure and other ways.
Battery indicators let you know the power status at any time.

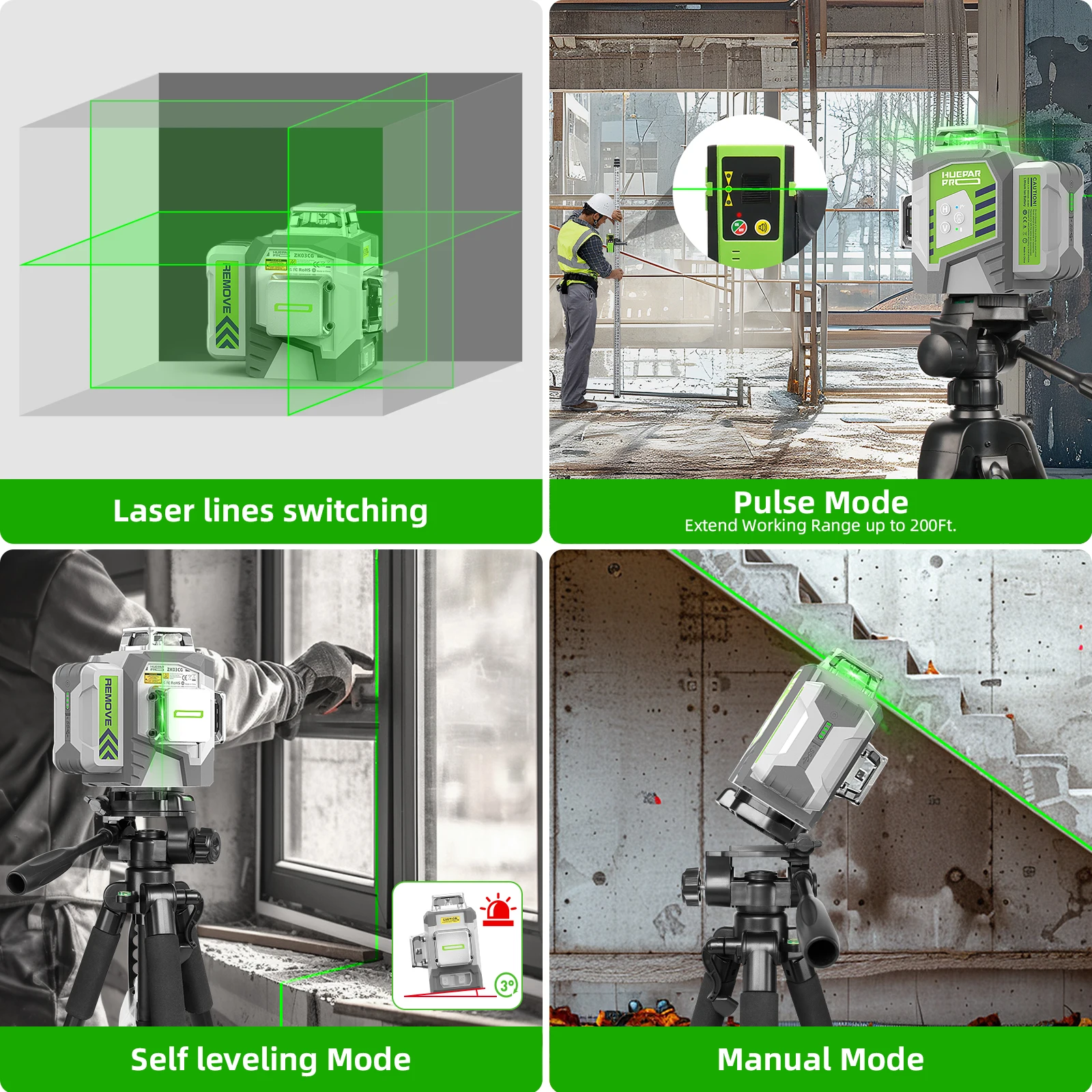

Self-leveling & Manual Mode
Self-leveling mode:Unlock the pendulum, and enable the self-leveling mode, when the tool exceeds the self-leveling range by ±3°.
The laser beam(s) will blink about every 3-5 seconds to notify the user it is not self-leveling now.
Manual mode:Once the pendulum is locked, it switches to manual mode, the self-leveling function is disabled, the cross laser tool is locked, and you can position the laser level at any angle you need.



Outdoor Pulse Mode
Turn ON the pulse mode: After powering ON, short press the “Pv” button to turn ON/OFF the pulse mode. When the pulse mode is activated, the laser beams are dimmer.
Pulse mode extends the working range up to 40-60m in brighter working conditions when using with Huepar Line Laser Detector(LR-8RG/LR-5RG/LR-6RG) .



Remote Control & Magnetic Bracket:

With the remote control, you can turn on/off pulse mode, switch 3 laser lines at a distance up to 32.8Ft without the laser tool besides you. The Strong Magnetic bracket offers quick positioning on metal surfaces and rotating at 180°. The bracket has 1/4″-20 and 5/8″-11 threaded mounts at bottom to be used with tripods or pole mounts. The laser tool also has 1/4″-20 mount thread to suit a tripod or pole mount.
