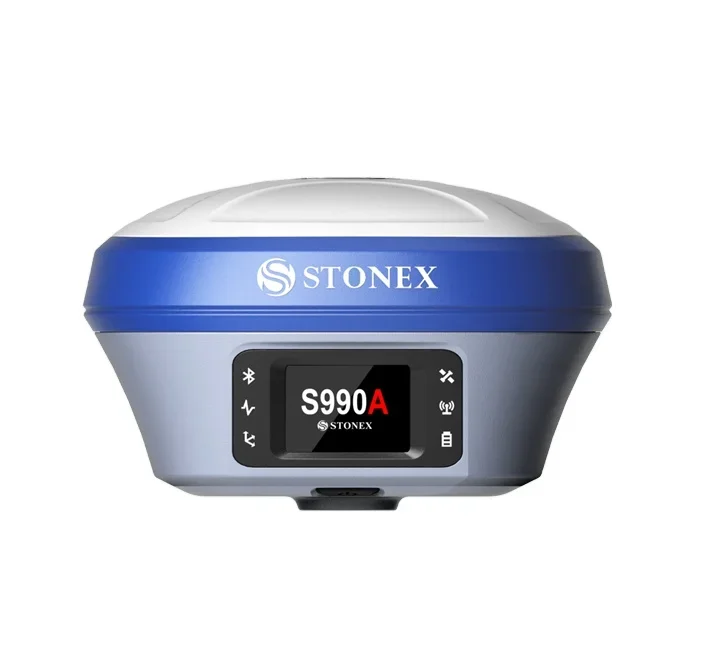

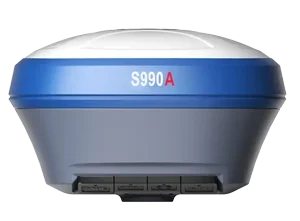

High Performance 800 Channels S990A GNSS Receiver Stonex Surveying Instrument

Rp74.418.010 Rp147.402.070Price range: Rp74.418.010 through Rp147.402.070
In Stock
  • Pre-Order Available (Estimated ±15 Day Delivery)
  • 7 day unit replacement guarantee(Video Unboxing Required)
  • Including shipping costs, sent by Supplyinx.com
  • Pick up at a supplyinx.com collection point is possible
  • 24/7Customer service
SKU: 1005007858822087
Category:

Description



S990A GNSS Receiver adalah instrumen survei canggih dengan 800 saluran dan performa tinggi yang dirancang untuk pengukuran presisi dalam survei lahan dan pemetaan. Menggunakan teknologi GNSS multi-frekuensi dan kompatibilitas dengan berbagai satelit seperti GPS, GLONASS, Galileo, dan BeiDou, alat ini menawarkan keakuratan tinggi untuk aplikasi surveying, konstruksi, dan pemetaan topografi.


Deskripsi Produk

S990A GNSS Receiver menawarkan akurasi luar biasa berkat 800 saluran yang memungkinkan penerimaan sinyal lebih banyak dari berbagai sistem satelit. Dilengkapi dengan teknologi RTK dan PPK, alat ini memberikan pengukuran posisi presisi tinggi untuk berbagai jenis proyek, mulai dari survei lahan hingga pemetaan. Desain tahan lama dan portabel memungkinkan penggunaan alat ini di berbagai kondisi cuaca dan medan lapangan yang sulit.


Fitur Utama

  • 800 Saluran – mendukung banyak satelit untuk penerimaan sinyal yang lebih baik dan lebih cepat

  • Multi-frekuensi GNSS: GPS, GLONASS, Galileo, BeiDou untuk akurasi lebih tinggi

  • Presisi tinggi dengan mode RTK dan PPK untuk pengukuran posisi yang sangat akurat

  • Desain kokoh dan tahan lamaIP67 (tahan debu dan air) untuk penggunaan di lapangan yang keras

  • Kemampuan koreksi sinyal untuk meningkatkan akurasi pengukuran pada area terpencil

  • Konektivitas tinggi dengan 4G, Wi-Fi, Bluetooth untuk komunikasi dan transfer data cepat

  • Baterai tahan lama – penggunaan hingga 12 jam penuh di lapangan

  • Layar sentuh untuk kemudahan navigasi dan pengoperasian alat

  • Port USB dan RS-232 untuk transfer data yang mudah ke perangkat lain


Spesifikasi Teknis (Contoh Umum untuk S990A GNSS Receiver)

Spesifikasi Detail
Model S990A GNSS Receiver
Saluran 800 Saluran untuk penerimaan sinyal yang lebih banyak
Frekuensi GPS, GLONASS, Galileo, BeiDou
Presisi Posisi ±2 cm (RTK mode)
Sistem Koreksi RTK, PPK
Layar Layar Sentuh untuk antarmuka pengguna yang mudah
Baterai Baterai Li-ion Rechargeable, ±12 jam penggunaan
Konektivitas 4G, Wi-Fi, Bluetooth
Antarmuka Data USB, RS-232
Proteksi IP67 (Tahan debu dan air)
Berat ±2–3 kg

Aplikasi

  • Survei lahan dan pemetaan topografi

  • Pemetaan GIS dan analisis spasial

  • Pengukuran koordinat dan posisi untuk proyek konstruksi

  • Penentuan titik kontrol untuk proyek infrastruktur besar

  • Surveying dan pengukuran jalan, jembatan, saluran air

  • Pemetaan tanah untuk aplikasi agrikultur atau properti


Ringkasan

S990A GNSS Receiver adalah alat pengukur posisi profesional dengan 800 saluran, memberikan presisi tinggi dalam pengukuran posisi dan koordinat. Dengan multi-frekuensi GNSS, mode RTK dan PPK, serta desain portabel dan tahan lama, alat ini sangat ideal untuk survei lahan, konstruksi, dan pemetaan. Dengan konektivitas tinggi dan baterai tahan lama, S990A menawarkan keandalan dan efisiensi yang dibutuhkan untuk proyek survei dan pemetaan di lapangan.



What are the performances of the S990A with IMU?



• No problem of electromagnetic disturbances
• Fast initialization
• Up to 60° inclination
• 2 cm accuracy 30°
• 5 cm accuracy 60°
• Fast and precise survey

Stonex S990A with IMU system makes reliable every measurement, both survey and the stake out jobs, and makes extremely faster the acquisition of points: up to 40% of the field work time can be saved!
Specification
Stonex S990A

Signal Tracking
GPS: LI C/A, L1C, LIP, L2C, L2P, L5

GLONASS: LI C/A, LIP, L2 C/A, L2P, L3

BEIDOU: Bl, B2, B3, ACEBOC
Signal Tracking
GALILEO: El, E5a, E5b, ALTBOC, E6

QZSS: LI C/A, L1C, L2C, L5, L6

IRNSS: L5

SBAS: LI, L5
L-Band
Atlas H10 / H30 / Basic (optional)
Bridging of RTK outages
aRTK – Works up to 20 minutes
Channels
800
Position Rate
10 Hz (optional 20-50Hz)
Signal Reacquisition
< Is
RTK Signal Initialization
2 to 4 seconds
Hot Start
Typically < 15 s
Initialization Reliability
> 99.9 %
Internal Memory
32 GB
Tilt sensor
E-Bubble IMU
POSITIONING1

STATIC SURVEYING

High Precision Static Horizontal
2.5 mm + 0.1 ppm RMS
High Precision Static Vertical
3.5 mm + 0.4 ppm RMS
Static and Fast Static Horizontal
3 mm + 0.5 ppm RMS
Static and Fast Static Vertical
5 mm + 0.5 ppm RMS
CODE DIFFERENTIAL POSITIONING

Horizontal
0.25 m + 1 ppm RMS
Vertical
0.50 m + 1 ppm RMS
SBAS POSITIONING

Accuracy
0.60 m RMS
REALTIME KINEMATIC (< 30 Km) – NETWORK RTK

Fixed RTK Horizontal
5 mm + 0.5 ppm RMS
Fixed RTK Vertical
5 mm + 0.5 ppm RMS
INTEGRATED GNSS ANTENNA

High accuracy four constellation antenna, zero phase center, with internal multipath suppressive board

INTERNAL RADIO (optional)

Type
Tx – Rx (1 watt)
Frequency Range
410 – 470 MHz 902.4 – 928 MHz
Channel Spacing
12.5 KHz/25 KHz
Range
3-4 Km in urban environment Up to 10 Km with optimal conditions4
INTERNAL MODEM

Band
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/ B13/B18/B19/B20/B25/B26/B28 LTE TDD: B38/B39/B40/B41 UMTS: B1/B2/B4/B5/B6/B8/B19 GSM:

B2/B3/B5/B8 Nano SIM card

COMMUNICATION

I/O Connectors
5 pins Lemo, connect the external power supply and external radio Type-C, for receiver power supply and data transfer 1PPS port
Bluetooth
2.1 +EDR, V4.1
Wi-Fi
802.11 b/g/n
WebUI
To upgrade the software, manage the status and settings, data download, etc. via Smartphone, tablet or other electronic device

with Wi-Fi capability

Reference outputs
RTCM 2.3, 3.0, 3.2 CMR, CMR+, DGPS
Navigation outputs
NMEA0183
POWER SUPPLY

Battery
Internal rechargeable 7.2 V – 10.200 mAh
Voltage
9 to 28 V DC external power input with over-voltage protection (5 pins Lemo)
Working Time
Up to 10 hours
Charge Time
Typically 4 hours
PHYSICAL SPECIFICATION

Dimensions
cp 151 mm x 94.5 mm
Weight
1.40 Kg
Operating Temperature
-40°C to 65°C (-40°F to 149°F)
Storage Temperature
-40°C to 80°C (-40°F to 176°F)
Waterproof/Dustproof
IP67
MIL-STD
MIL-STD-810H
Shock Resistance
Designed to enduretoa 2 m pole drop on concrete floor with no damage
Vibration
Vibration resistant
