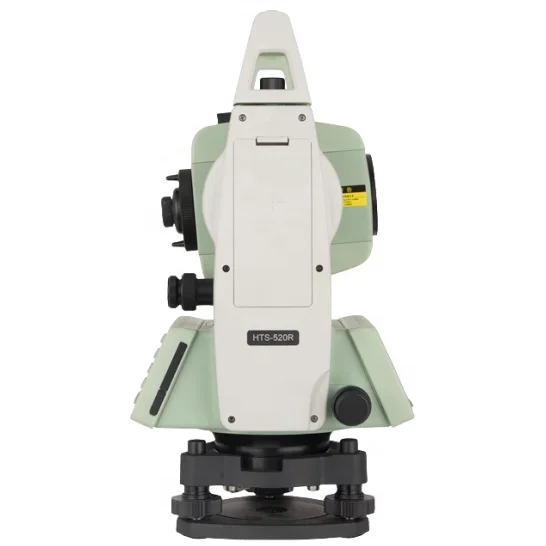

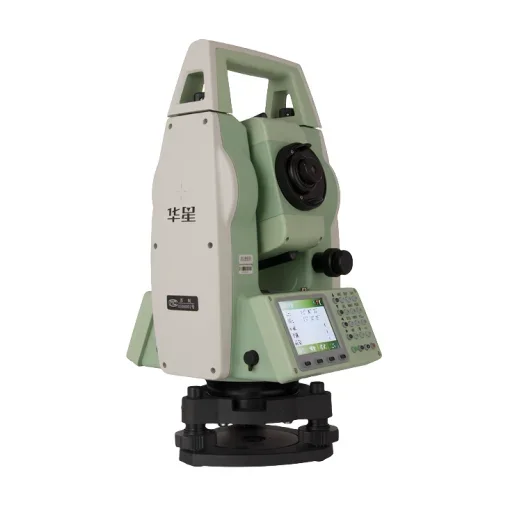

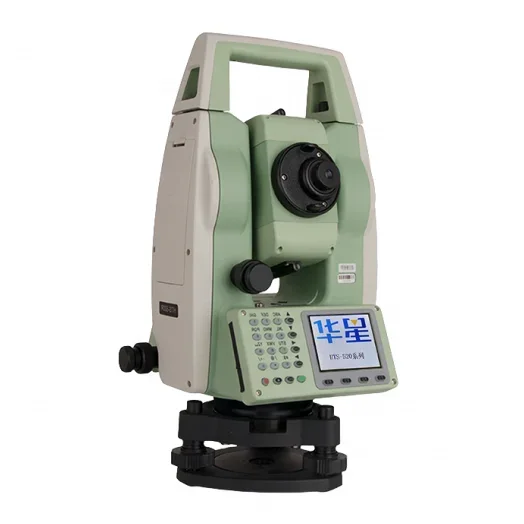

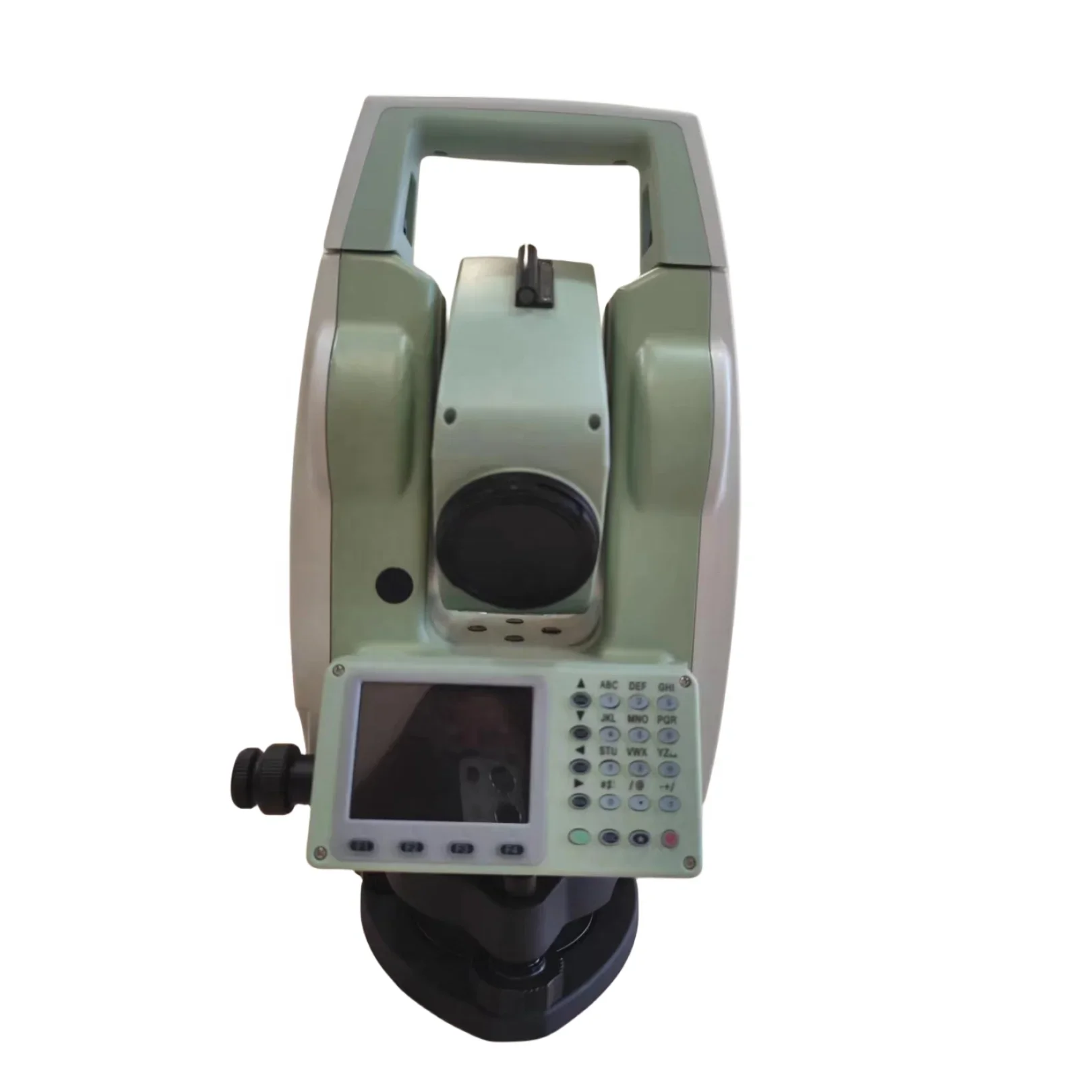

Hi-Target HTS-520L8 Color Screen Total Station Prism-free Measuring Range 800 Meters for Land Surveying 2” Accuracy
This product has been added to 4 people'scarts.
- Pre-Order Available (Estimated ±15 Day Delivery)
- 7 day unit replacement guarantee(Video Unboxing Required)
- Including shipping costs, sent by Supplyinx.com
- Pick up at a supplyinx.com collection point is possible
- 24/7Customer service
Description
Hi-Target HTS-520L8 adalah total station modern dengan layar berwarna (color screen) yang dirancang untuk mempermudah navigasi menu dan meningkatkan efisiensi kerja. Mendukung pengukuran tanpa prisma (prism-free) hingga 800 m, alat ini memberikan akurasi sudut 2 detik, sehingga sangat andal untuk berbagai pekerjaan survei topografi maupun konstruksi.
Spesifikasi Utama
-
Akurasi Sudut: ±2”
-
Jarak Tanpa Prisma: hingga 800 m
-
Jarak dengan Prisma: hingga 5000 m
-
Optik: Pembesaran 30×, fokus minimum 1,5 m
-
Layar: Color LCD ganda dengan antarmuka user-friendly
-
Memori: Internal + USB eksternal
-
Komunikasi: USB, RS-232, Bluetooth (opsional)
-
Fitur Tambahan: E-bubble, kompensator ganda (dual-axis)
-
Daya: Baterai Li-ion isi ulang, durasi kerja ±8–10 jam
-
Ketahanan: IP66 tahan air & debu, tahan jatuh ±2 m
Pengaplikasian
-
Survei topografi & geodesi presisi tinggi
-
Setting-out konstruksi (bangunan, jalan, jembatan)
-
Pengukuran batas lahan & properti
-
Pemetaan infrastruktur & area urban
|
Model
|
HTS-520L8
|
|
|
Angle Measurement
|
|
|
|
Angle measuring principle
|
Absolute Encoding
|
|
|
Minimum Readout
|
1″/5″/10″(0.3mgon/1.5mgon/3mgon) optional
|
|
|
Accuracy¹
|
2″
|
|
|
Distance Measurement (Prism mode)
|
|
|
|
Range³
|
Single Prism: 3000m (9,842ft.) Three Prisms: 6000m (19,685ft.) Reflective Sheet: 800m (2,624 ft.)
|
|
|
Accuracy
|
3mm锛�2ppm
|
|
|
Measuring Time
|
Repeat/Tracking: 1.5s/1s/0.3s
|
|
|
Distance measurement (Reflectorless)
|
|
|
|
Range
|
Range: 400m
|
|
|
Single Prism
|
>7500m (24606ft.)
|
|
|
Accuracy
|
3mm+2ppm
|
|
|
Measurement Time
|
1.5s
|
|
|
Telescope
|
|
|
|
Magnification
|
30x
|
|
|
Field of View
|
1°30′ (2.7m at 100m)
|
|
|
Minimum Focusing Distance
|
1.2m
|
|
|
Reticle
|
Illuminated
|
|
|
Compensator
|
|
|
|
System
|
Dual-axis (optional)
|
|
|
Working Range
|
±3′
|
|
|
Accuracy *1
|
1″
|
|
|
Communication
|
|
|
|
Internal Data Memory
|
Approx. 20,000 Points
|
|
|
Interface
|
Standard RS232, SD card4, USB pen drive
|
|
|
Wireless Communication
|
Bluetooth
|
|
|
Data Format
|
ASCII
|
|
|
Operation
|
|
|
|
Operation system
|
Real-time Operating System
|
|
|
Display
|
High resolution backlight colourful display
|
|
|
Keyboard
|
2 sides Alphanumeric backlit crystal keyboard
|
|
|
Laser Plummet
|
|
|
|
Type
|
Laser point, 4 brightness levels adjustment / Optical plummet (optional)
|
|
|
Centering Accuracy
|
1 mm at 1.5m instrument height
|
|
|
Power Supply
|
|
|
|
Battery Type
|
Rechargeable Li-ion battery
|
|
|
Voltage/ Capacity
|
ZBA-400: 7.4V (DC) / 3000mAh
|
|
|
Operating Time With ZBA-400
|
Optimal 16 hours (Continuous angle measurement every 30 seconds) / 10 hours(typical)
|
|
|
Measuring Times
|
Approx.12000 times
|
|
|
Plummet
|
|
|
|
Type
|
Laser point, 4 brightness levels adjustment / Optical plummet (optional)
|
|
|
Centering Accuracy
|
1 mm at 1.5m instrument height
|
|
|
Environmental
|
|
|
|
Operating Temperature
|
-20鈩� ~+50鈩�( -4鈩� to +122鈩�)
|
|
|
Storage Temperature
|
-40鈩� ~+70鈩�(-40鈩� to + 158鈩�)
|
|
|
Dust&water proof (IEC60529 Standard)
|
IP55
|
|
