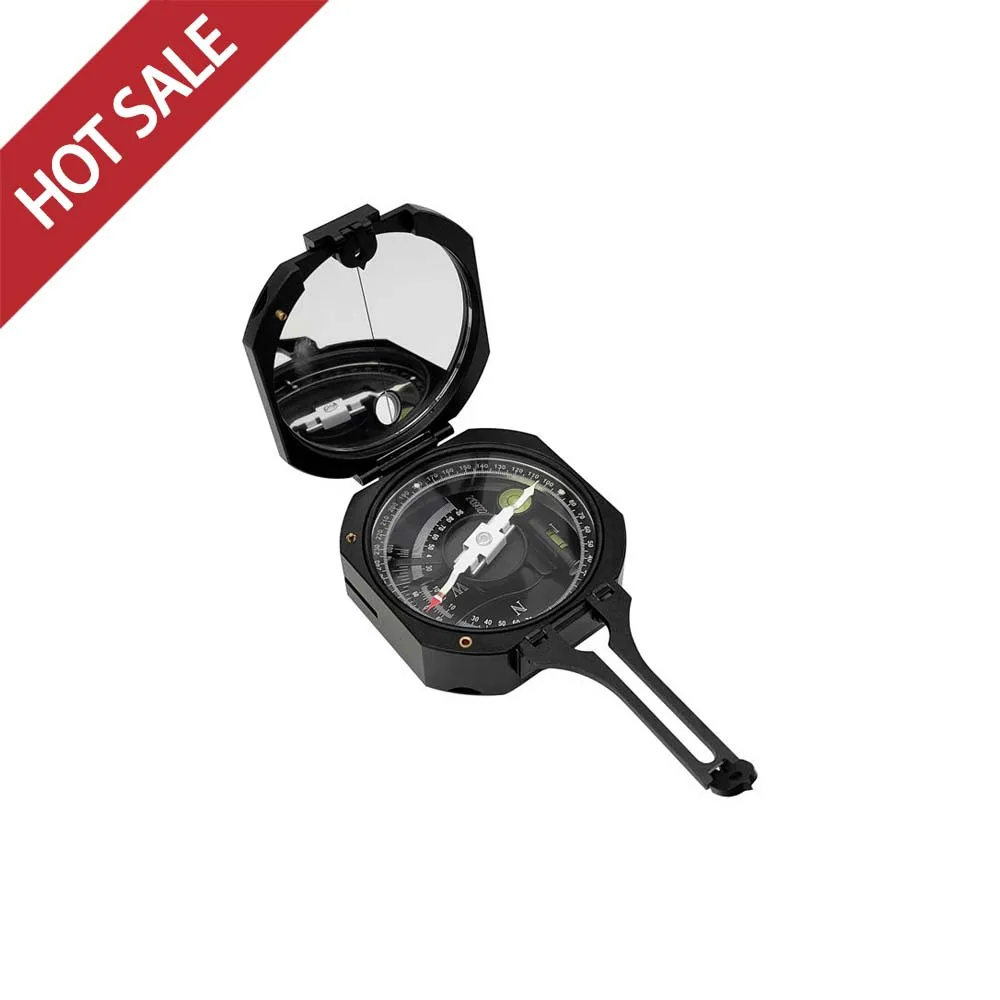

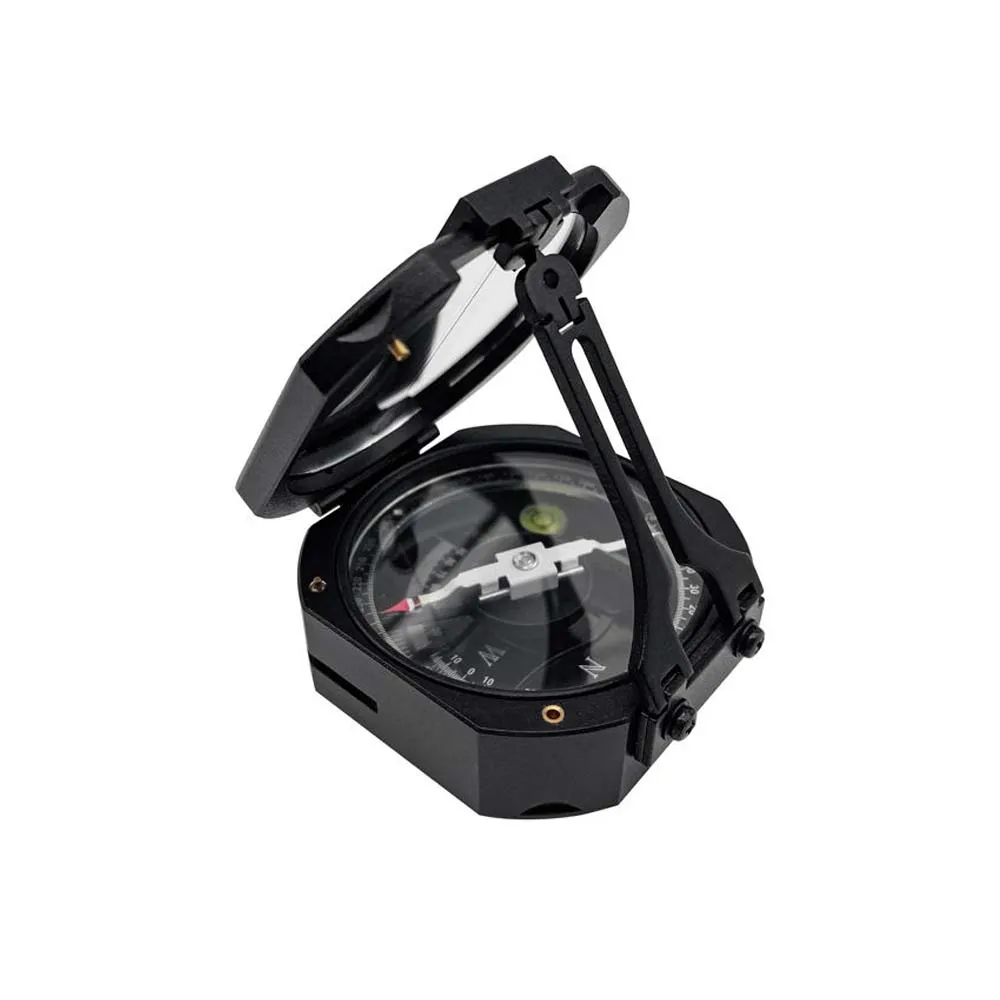

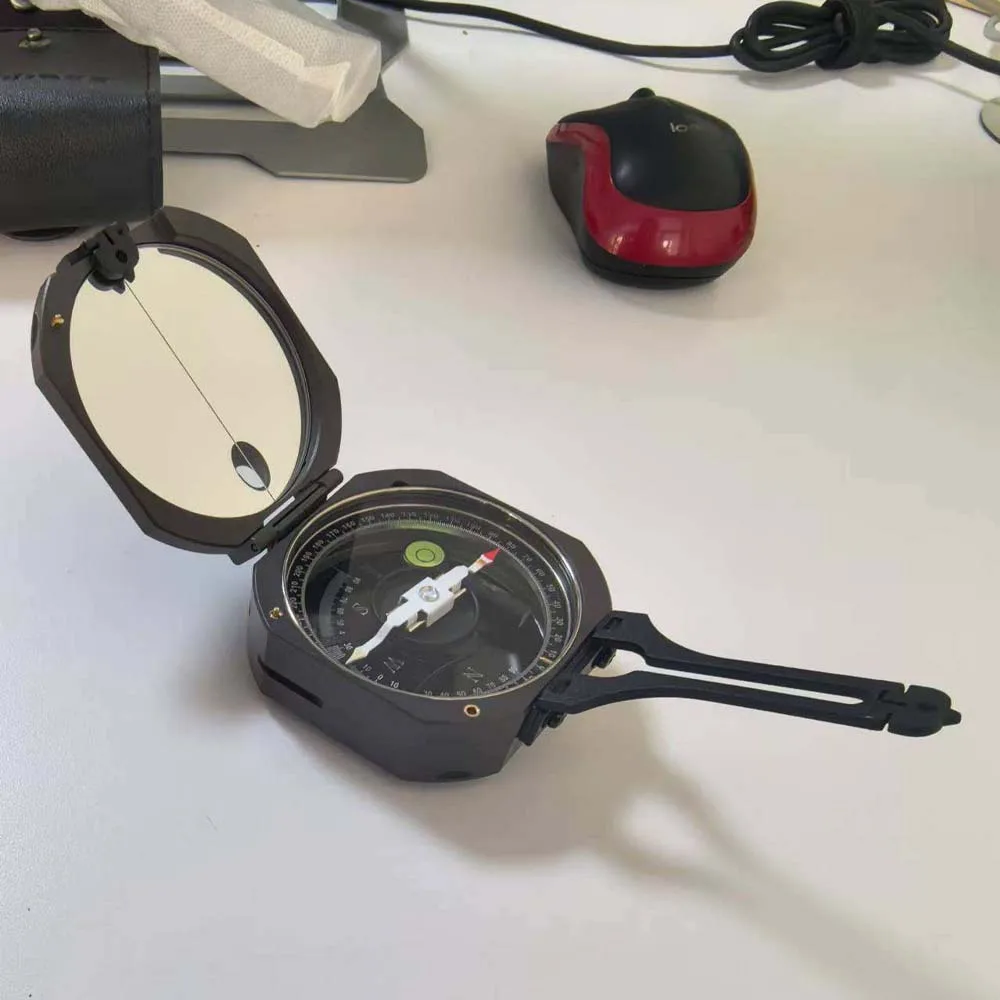

Geological Compass DQL-8 Pocket Theodolite Magnetic Brunton Type Geological Survey Directional Compass for Outdoor Measurement

Geological Compass DQL-8 Pocket Theodolite Magnetic Brunton Type Geological Survey Directional Compass for Outdoor Measurement

Rp2.958.493
In Stock
Order on WhatsApp
In Stock
Add to wishlist
  • Pre-Order Available (Estimated ±15 Day Delivery)
  • 7 day unit replacement guarantee(Video Unboxing Required)
  • Including shipping costs, sent by Supplyinx.com
  • Pick up at a supplyinx.com collection point is possible
  • 24/7Customer service
SKU: 1005009749056881
Category:

Description

  • Battery Included: No
  • Hign-concerned Chemical: None
  • Model Number: DQL-8
  • Brand Name: XMSJ
  • Origin: Mainland China
  • Waterproof Standard: No
  • Material: Aluminum
  • Style: Fashion
  • Application: Camping, Hiking
  • With Noctilucent Display or Not: Yes
  • Dial Display: Pointer
  • Carrying Mode: Handheld Type
  • Outdoor Activity: Hike
  • Shockproof or Not: Yes
  • Use: Pointing Guide
  • Feature: Portable
  • Type: Compasses
  • Model Number: DQL-8
  • Function: Measuring direction, horizontal angle, vertical angle
  • Needle damping time: <15 sec
  • Dial: 0°-360°
  • Scale value: 1°

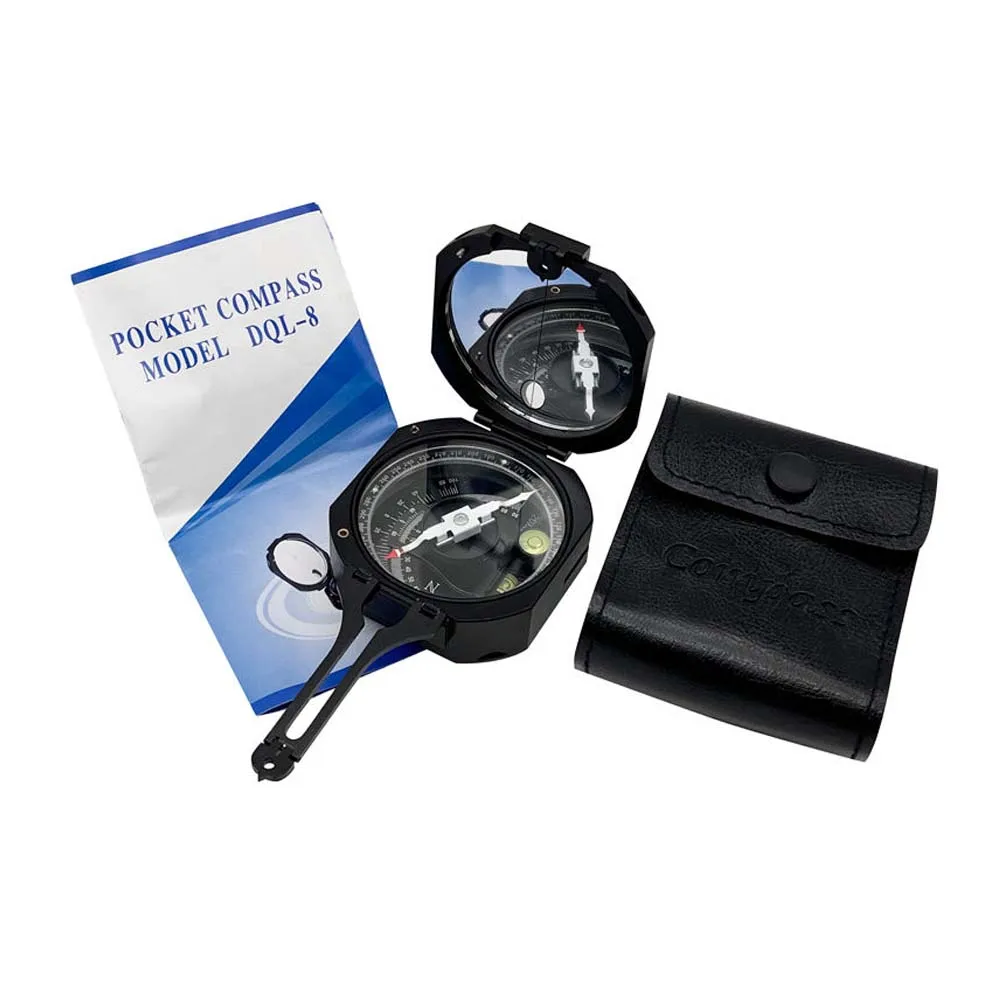

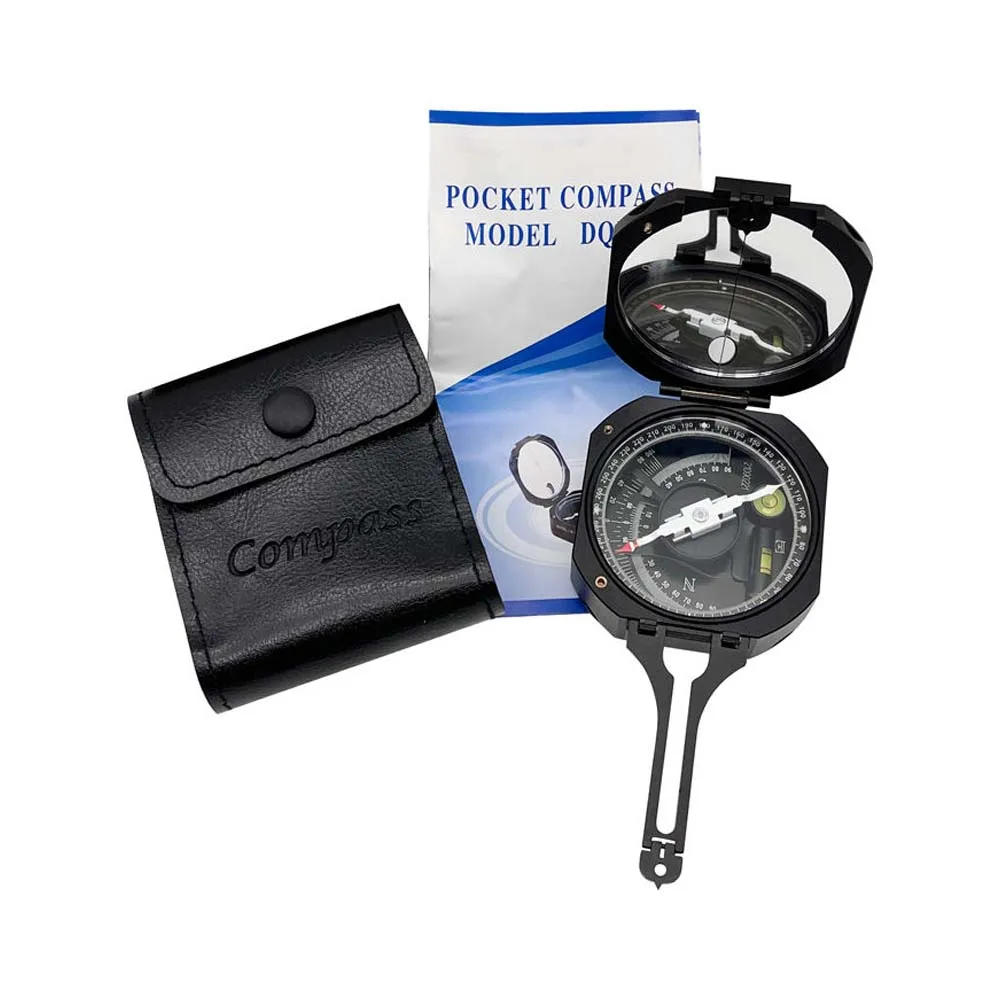

  • Packing: in Leather case and paper box

Geological Compass DQL-8 Pocket Theodolite Magnetic Brunton Type Geological Survey Directional Compass for Outdoor Measurement



Specification
item
value
Place of Origin
China

Heilongjiang
Brand Name
Harbin
Model Number
DQL-8
Case Material
Aluminum
Size
80*70*35MM
Shockproof or Not
Yes
Waterproof
Yes
With Noctilucent Display or Not
Yes
Dial Display
Pointer
Use
Pointing Guide
Carrying Mode
Handheld Type
Outdoor Activity
Camp
Function
Measuring direction, horizontal angle, vertical angle
Needle damping time
<15 sec
Weight
0.24kg
Dial
0°-360°
Scale value
1°
Packing
in Leather case and paper box.

Main Features of this Geological magnetic compass :

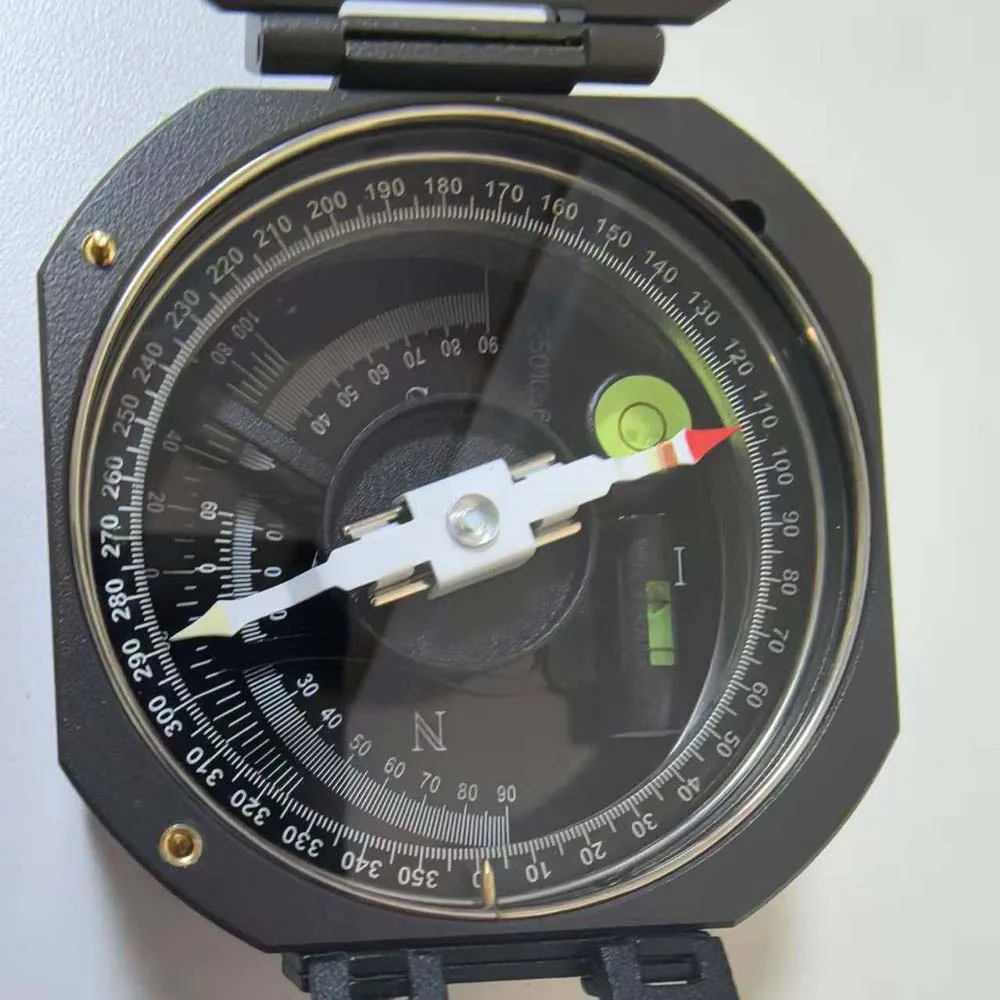

* This lightweight and durable transit was designed for the specific tasks required of geologists, surveyors, mining engineers,civil engineers, environmental engineers and foresters. The direct-read compass capsule of this transit features 1 degree resolution and 1/2 degree accuracy. And the dry compass capsule of this quick dampening needle features both a needle-lock to protect the compass assembly during transit and gear driven adjustable declination to allow for simple compensated bearings.
* Lightweight, only 240g, compact small and easy to carry
* Dimensions : 80mm*75mm*35mm;
* Features include a compass bubble level, clinometer level, sighting mirror with lubber line and sighting hole, induction
dampened needle, and adjustable sighting points.
* The vertical angle clinometer scale featuring 1 degree increments has a range of 90 degrees or 100% grade scale with an accuracy of 1/2 degree. A percent grade scale features increments of 5%.
