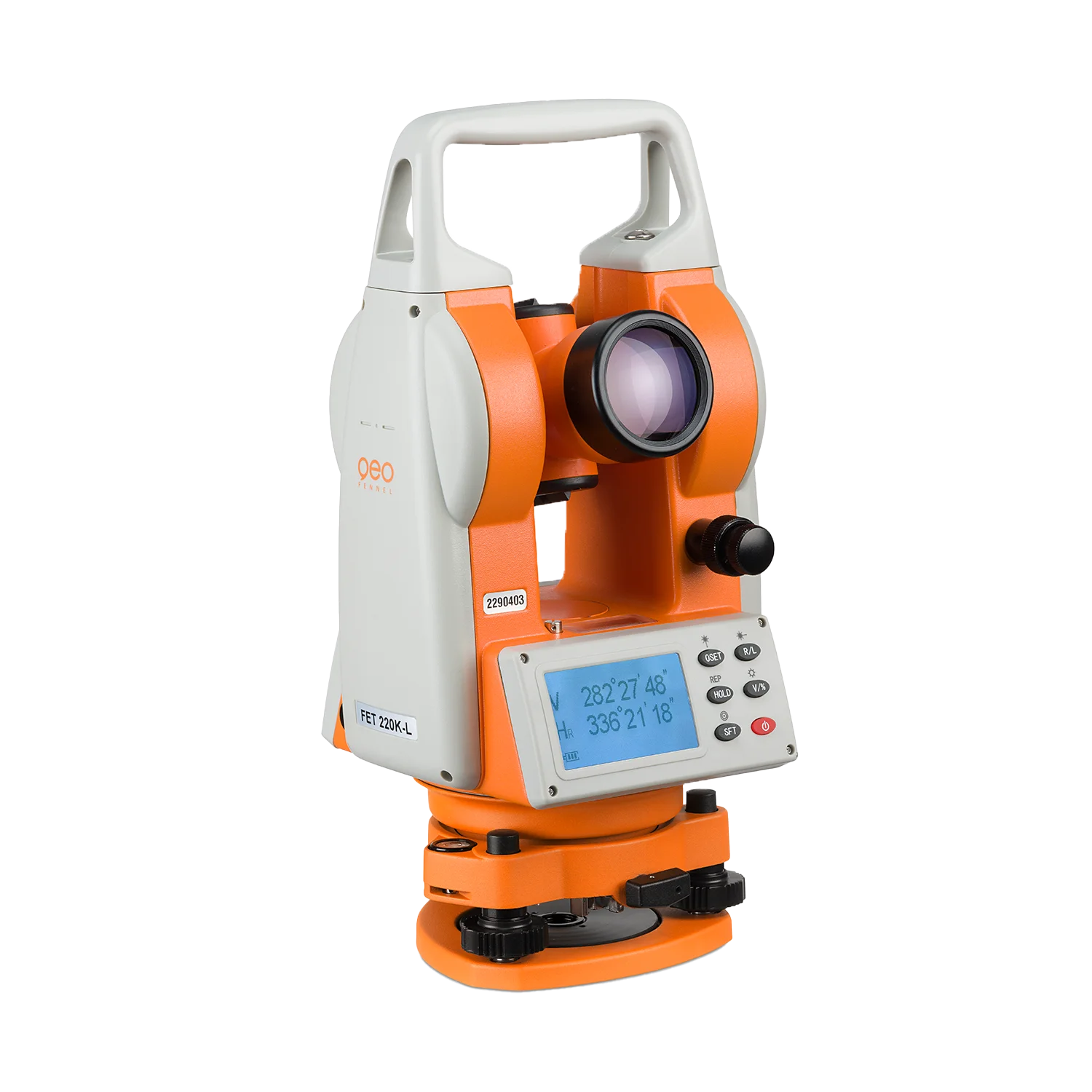

GEO FET220 IP54 Laser plummet Electronic Theodolite With 2 large easy-to-read LCDs
- Pre-Order Available (Estimated ±15 Day Delivery)
- 7 day unit replacement guarantee(Video Unboxing Required)
- Including shipping costs, sent by Supplyinx.com
- Pick up at a supplyinx.com collection point is possible
- 24/7Customer service
Description
- Hign-concerned Chemical: None
- Model Number: FET220
- Brand Name: HeiPoe
- Origin: Mainland China
- Certification: CE
- Dust / water protection: IP 54
- Operating time: 18 h
- Temperature range: -20° to +50°C
- Objective diameter: 45 mm
- Telescope magnification: 30 x
- Shortest focussing distance: 1,5 m
- Angle measurement: absolute encoder
- Weight (instrument only): 4,2 kg

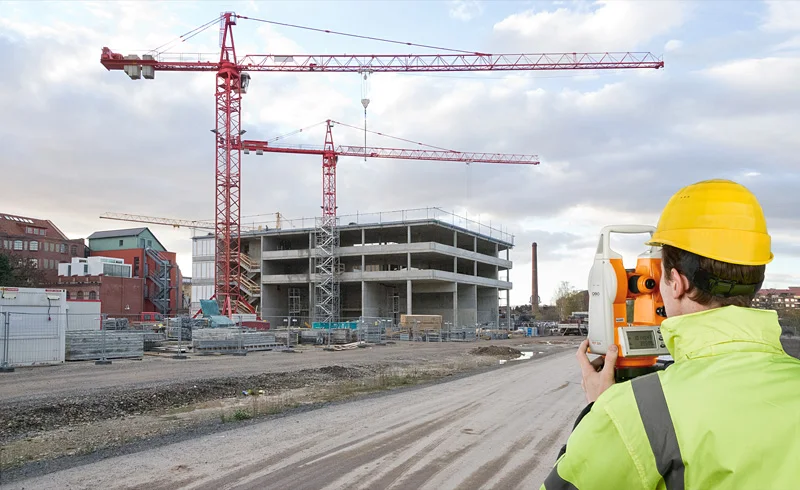

For measuring horizontal, vertical and zenith angles. For use in engineering, civil engineering and general construction
Features
-

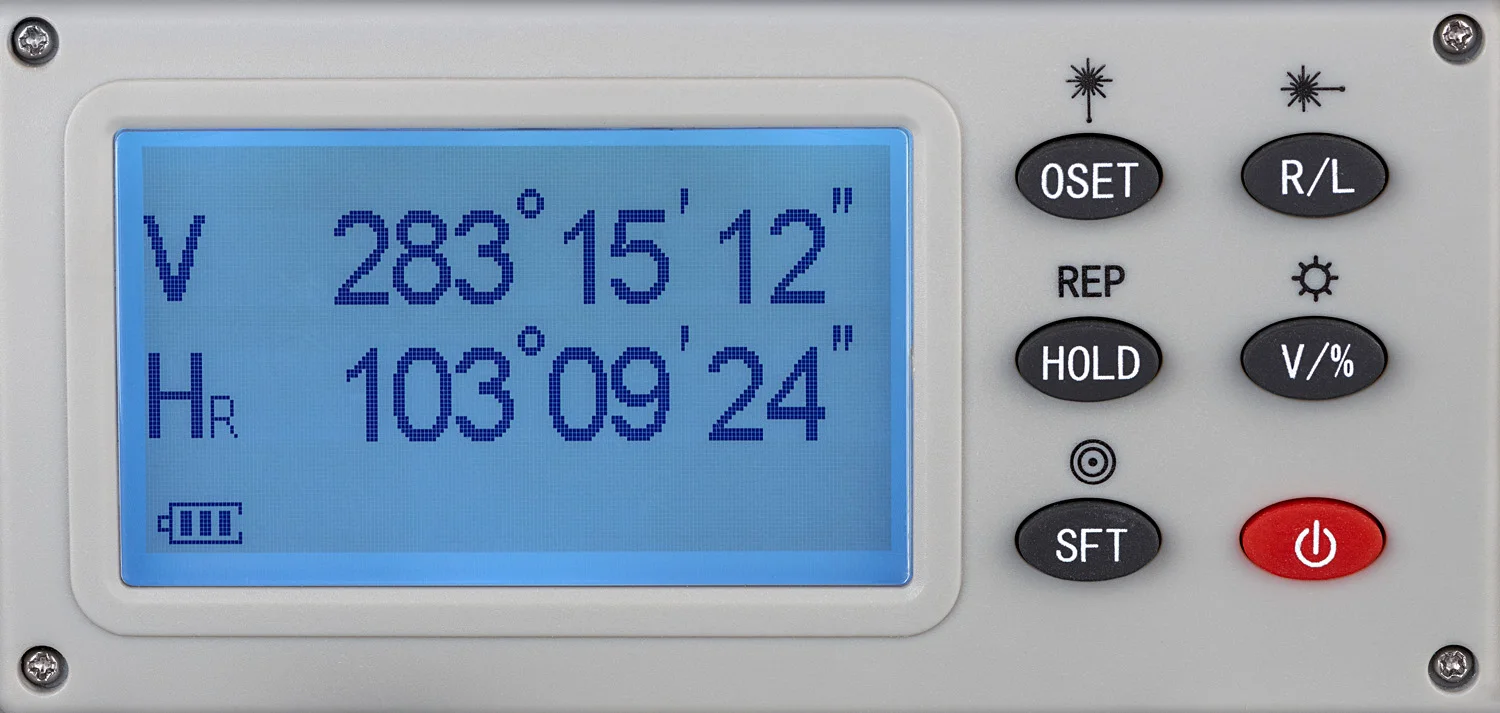

2 large easy-to-read LCDs
-

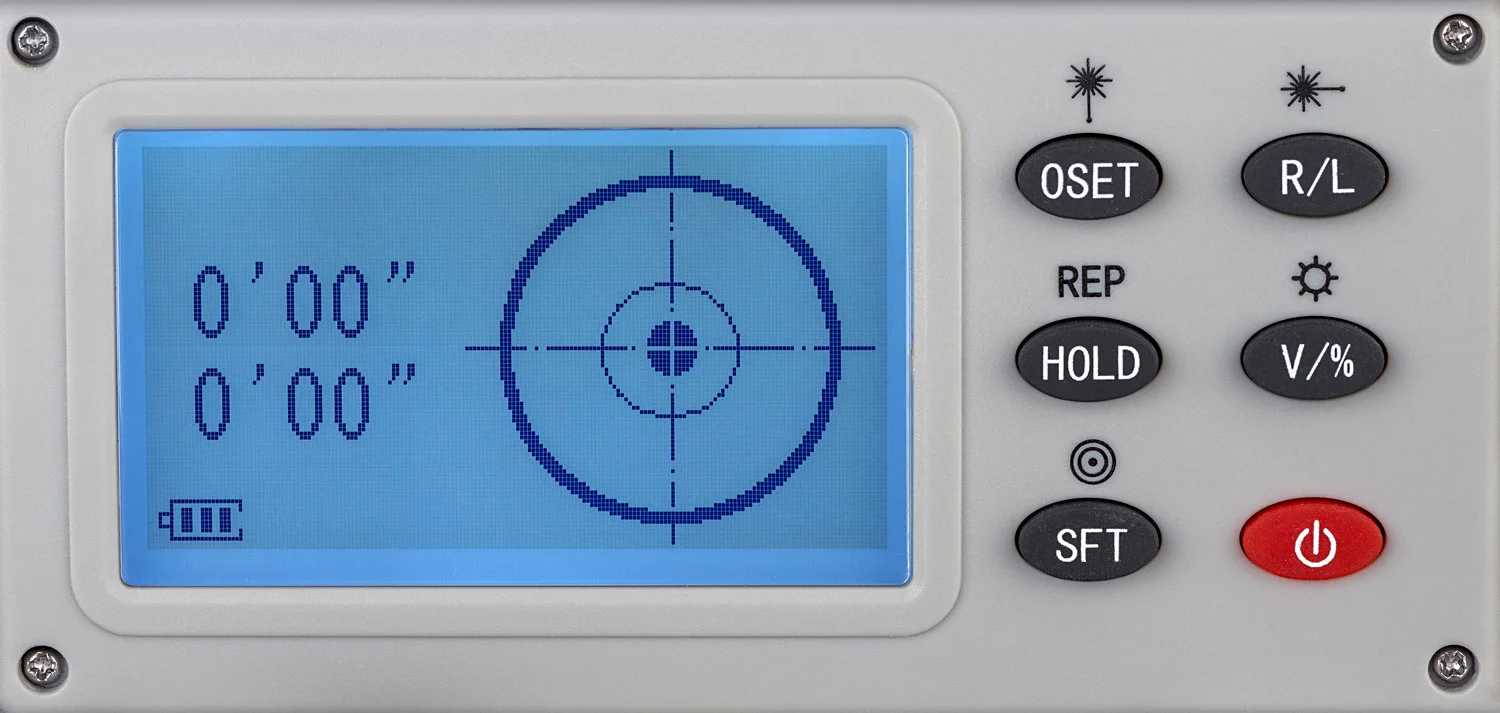

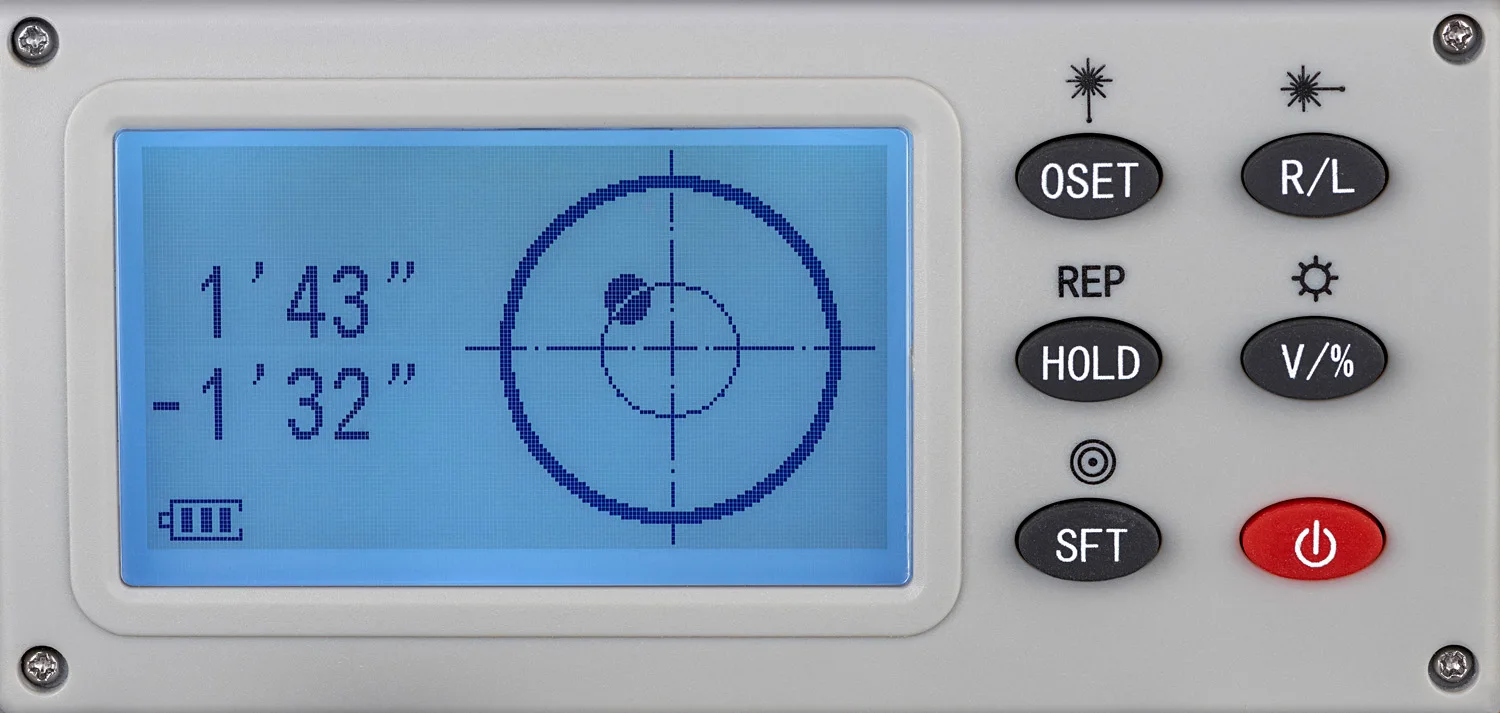

Laser plummet for easy set up over the ground point
-
Illumination of LCD and field of view
-
Horizontal circle: Hold-Function, 0-set at any desired position, clockwise/anti-clockwise reading
-
Vertical circle: reading in gon / degrees / percent
|
Dust / water protection: |
IP 54 |
|
Operating time: |
18 h |
|
Power supply: |
NiMH |
|
Temperature range: |
-20° to +50°C |
|
Objective diameter: |
45 mm |
|
Telescope magnification: |
30 x |
|
Shortest focussing distance: |
1,5 m |
|
Angle measurement: |
absolute encoder |
|
Accuracy: |
20“ (6 mgon) |
|
Minimum reading: |
10“ (3 mgon) |
|
Weight (instrument only): |
4,2 kg |
|
Measuring units: |
400 gon / 360° |
|
Laser plummet: spot size: |
± 1,5 mm auf 1,5 m |
|
|
|
|
|
