Description

Hi-Survey V300 Plus adalah sistem GNSS RTK generasi terbaru dengan 1408 channel, dilengkapi IMU tilt compensation, kamera tunggal untuk dokumentasi/pemetaan visual, serta radio UHF internal. Dirancang sebagai set Base & Rover, perangkat ini memastikan fixed RTK cepat, akurat, dan stabil di berbagai kondisi lapangan.

Spesifikasi Utama

  • Channels: 1408, mendukung GPS, GLONASS, BeiDou, Galileo, QZSS, SBAS

  • Akurasi RTK: H: ±8 mm + 1 ppm, V: ±15 mm + 1 ppm

  • Inisialisasi: Fast fix <10 detik, keandalan >99%

  • Fitur: IMU (kompensasi miring hingga ±60°), kamera 1 lensa, e-bubble

  • Komunikasi: Internal UHF radio, 4G LTE modem, Wi-Fi, Bluetooth

  • Baterai: Lithium-ion isi ulang, operasi ±10–12 jam

  • Desain: Ultra ringan, kompak, mudah dibawa

  • Ketahanan: IP67 tahan air & debu, tahan jatuh ±2 m

Pengaplikasian

  • Survei geodesi & topografi presisi tinggi

  • Pemetaan berbasis GNSS & visual (kamera)

  • Setting-out proyek sipil & konstruksi

  • Survei infrastruktur di medan sulit

Fast Fixed One Camera Imu 1408 Channel Internal UHF Radio Hi-survey Base And Rover Set Gnss Rtk V300 Plus
V300/V500 GNSS RTK System

Equipped with an upgraded high-definition starlight camera, V300/V500 brings out an excellent visual stakeout experience in low-light conditions. The compact and lightweight design,24 Hours Ultra-Long battery life make V300/V500 a feasible and portable choice for surveyors and engineers in collecting data and improving position accuracy.

Data Collector
Specification
1408 Channels IMU Tilt Survey GNSS Receiver Hi-Target V300 Gnss Rtk With Camera



GNSS Configuration
Number of channels
1408

BDS
B1I,B2I,B3I,B1C,B2a,B2b

GPS
L1C/A,L1C,L2P(Y),L2C,L5

GLONASS
L1,L2

GALILEO
E1,E5a,E5b

GALILEO
E1,E5a,E5b,E6*

QZSS
L1,L2,L5,L6*

IRNSS
L5*

SBAS
L1,L2,L5

L-BAND*
YES

Output format
ASCII: NMEA-0183, binary code

Positioning output frequency
1Hz~20Hz

Differential support
CMR,RTCM2.X,RTCM3.0,RTCM3.2

Static format support
GNS, Rinex dual format static data

Differential format
RTCM2.X, RTCM3.X

Network mode
VRS, FKP, MAC; support NTRIP protocol

System Configuration
Operating system
Linux operating system

Data storage
Built-in 16GB ROM, supports automatic cycle storage of static data

Precision and Reliability
RTK positioning accuracy
Plane: ±(8+1×10-6D) mm


Elevation: ±(15+1×10-6D) mm

Static positioning accuracy
Plane: ±(2.5+0.5×10-6D) mm


Elevation: ±(5+0.5×10-6D) mm

DGPS positioning accuracy
Plane accuracy: ±0.25m+1ppm;


Elevation accuracy: ±0.50m+1ppm

SBAS positioning accuracy
0.5m

Tilt measurement accuracy
8mm+0.7mm/°tilt

Visiual stakeout accuracy
1cm

Initialization time
<10 seconds

Initialization reliability
＞99.99%

RTK keep technology
YES

Camera
Function
Professional star-level night vision high-definition camera, super large viewing angle, support live-view stakeout

Communication
Cellular mobile
Built-in 4G network communication: TDD-LTE, FDD-LTE, WCDMA, TD-SCDMA, EDGE,GPRS,GSM

I/O Interface
USB type C interface; SMA interface

WiFi
802.11b/g access point and client mode, can provide WiFi hotspot service

Bluetooth
Bluetooth® 2.4GHz, BT5.2

NFC
Support NFC IGRS

Power
1W/2W/5W adjustable

RK/TK internal UHF radio
0.5W/1W/2W adjustable
410MHz~470MHz


HI-TARGET,TRIMTALK450S,TRIMMARKⅢ, TRANSEOT,SOUTH,CHC,SATEL


116 frequency bands adjustable

Sensor
Electronic Bubbles
Realize Smart Alignment

Tilt measurement
IMU

User Interface
Panel
Single button

Indicator light
Satellite lights, signal lights, power lights

Electrical physical properties
battery
High capacity lithium battery 6800mAh, working time is more than 16 hours

Input voltage
USB 15W charger

size
Φ158mm×98mm

weight
≤1.2kg (including battery)

Environmental characteristics
Dust and water release
IP68

Anti-fall
Resistance to natural drop of 2 meters

Operating temperature
-40℃~75℃

Storage temperature
-55℃~+85℃
Packages

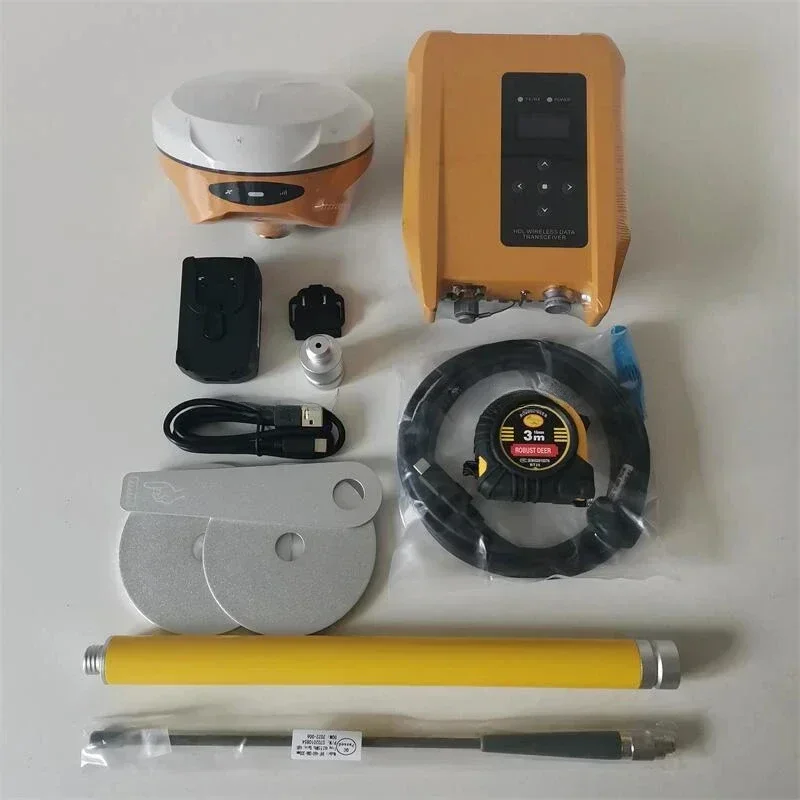

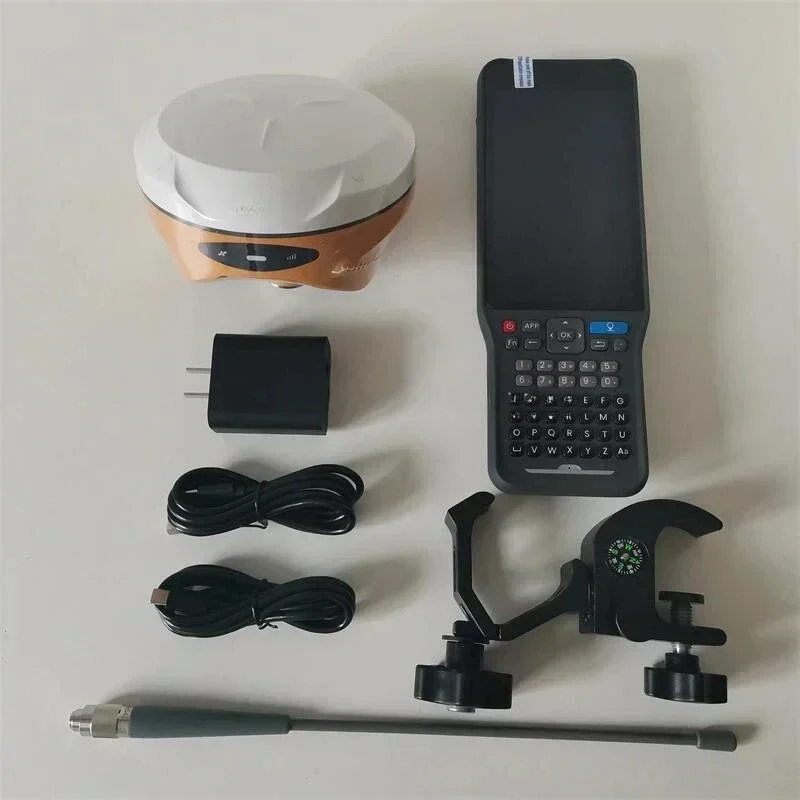

Base and rover full set picture
