English Version SNDWAY Laser Rangefinders 2.4 Inch Color Display Digital 50M 70M 100M 120M Subway Laser Electronic Laser Distanc
- Pre-Order Available (Estimated ±15 Day Delivery)
- 7 day unit replacement guarantee(Video Unboxing Required)
- Including shipping costs, sent by Supplyinx.com
- Pick up at a supplyinx.com collection point is possible
- 24/7Customer service
Description
Deskripsi Produk

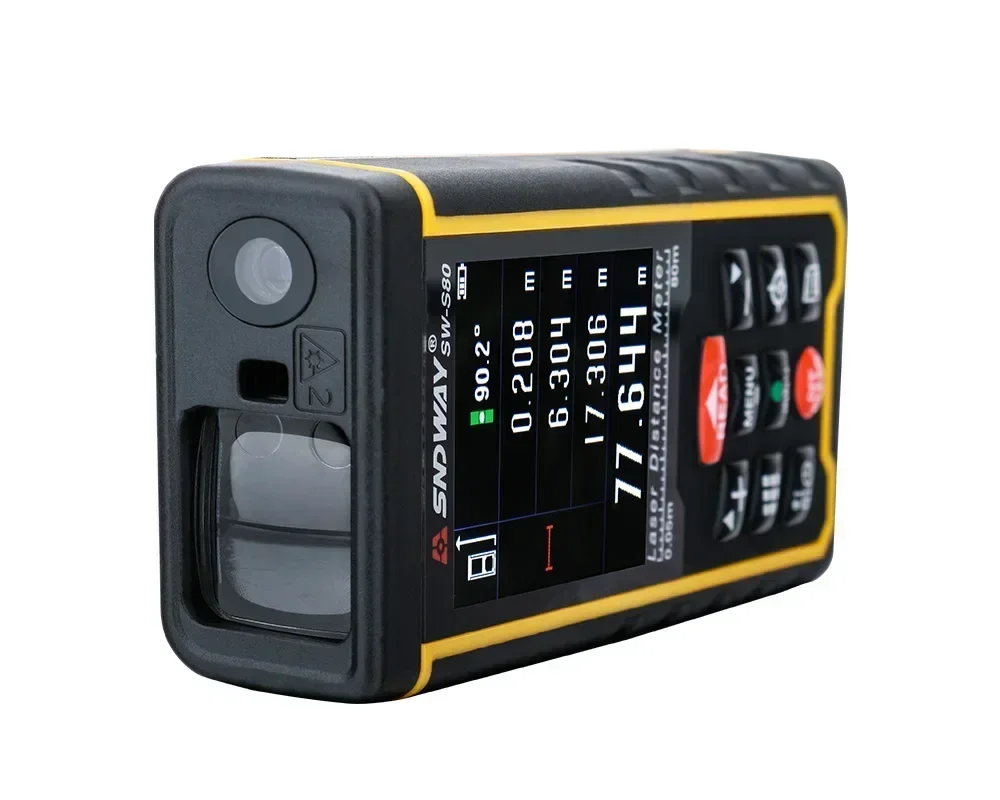

SNDWAY Laser Rangefinder (English Version) adalah alat ukur jarak digital dengan layar warna 2,4 inci yang dirancang untuk memberikan hasil pengukuran cepat, akurat, dan mudah dibaca. Tersedia dalam beberapa varian jangkauan 50m, 70m, 100m, hingga 120m, alat ini ideal digunakan dalam konstruksi, desain interior, arsitektur, maupun pekerjaan lapangan yang membutuhkan presisi tinggi.
Fitur Utama
-
Pilihan Jangkauan Lengkap: 50m, 70m, 100m, 120m.
-
Layar Warna 2.4 Inci: Tampilan jelas, modern, dan mudah dibaca.
-
Bahasa Inggris (English Version): Menu internasional yang mudah dipahami.
-
Multi Fungsi: Mengukur jarak, luas, volume, serta perhitungan tidak langsung (Pythagoras).
-
Akurasi Tinggi: Memberikan hasil pengukuran stabil dan presisi.
-
Desain Portabel: Ringan, ergonomis, dan mudah dibawa.
-
Penyimpanan Data: Memungkinkan pencatatan hasil pengukuran untuk analisis lebih lanjut.
Pengaplikasian
SNDWAY Laser Rangefinder banyak digunakan untuk:
-
Proyek konstruksi untuk pengukuran cepat di lapangan.
-
Desain interior & arsitektur dalam perhitungan ruang, luas, dan volume.
-
Survey lapangan ringan yang membutuhkan alat ukur praktis.
-
Instalasi mekanikal, elektrikal, dan plumbing (MEP) untuk pengukuran jarak presisi.
-
Penggunaan harian profesional bagi kontraktor, teknisi, maupun surveyor.
1. Large color LCD display, with backlight and multi-line display (5 lines).
2. Handheld rechargeable laser distance meter with angle indication for more precise measurement.
3. Quick measurement of distance, area, volume, Pythagoras, area of triangle, indirect measurement by Pythagorean theorem.
4. Staking-out function for better finding the position that match the setting distance.
5. Can connect to computer and directly download measurement data.
6. Adjustable measurement reference points: Set up front, middle, rear and extension benchmark.
7. Settable time of backlight off, laser lasting, power off, safe and power-saving.
8. Ranges: 0.05-50m(0.16-164ft), 0.05-70m(0.16-229ft), 0.05-100m(0.16-328ft) 0.05-80m(0.16-260ft) 0.05-120M(0.16-400ft)
9..Only SW-S120, SW-S80 with Camera Function
This product does not include battery and CD. The CD in the video is a gift of the old version. Now we can send you the software by Email or manual. Regarding the battery, many countries do not allow the transportation of detachable batteries due to logistics reasons. Please do it yourself Prepare AAA 1.5V batteries, three batteries.
|
Product Specification |
||||
|
Model |
SW-S120/S80/S100/S70/S50 |
|
Laser type |
635nm,<1mW II Class |
|
Working Range |
0.05-50/70/100/80m/120m |
Automatically cut off laser |
20S |
|
|
LCD Screen display |
2.4 inch Color LCD |
Automatic shutdown |
150S |
|
|
Data Store/ Recall Function: |
100 Units |
Angle of Tilt Masuring Range: |
±90° |
|
|
Bubble Level |
Electronic Level Bubbule |
Storage temperature |
-20℃ – 60℃ |
|
|
USB port |
Connect to Computer |
Working temperature |
0℃ – 40℃ |
|
|
Precision |
±2mm |
Storage humidity |
20% – 80%RH |
|
|
Unit options |
m/in/ft |
Power supply |
Ni-mh 3×1.2V 750mAh |
|
|
Continuous measurement |
Yes |
Product Weight / Size |
120g/ 125 * 52 * 27mm |
|
|
Area/Volumn measurement |
Yes |
Packing Weight / Size |
350g/ 8 * 13.5 * 6.5cm |
|
|
Pythagorean measurement |
Yes |
Warranty |
2 years |
|
|
Packing Contents |
1* Laser distance meter |
|||
