Colorimeters LS176 D/8° Spectrophotometers High Accuracy Whiteness and Yellowness Spectral Reflectance Curves APP Software

Specifications:

1. Illumination geometry: D/8, specular component include (SCI)

2. Illumination light source: Full spectrum LED light source

3. Spectral Range: 400-700nm

4. Spectral Interval: 10nm

5. Measuring aperture: 8mm

6. Measurement conditions: Light source D65, field of view 10°

7. Measuring time: About 1s

8. Color space: CIE Lab, Luv, LCh, Yxy, CMYK, RGB, Hex, WI-98, WI-Gauz, WI-Hunter, YI-98, Reflectance

9. Color difference formula: ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00

10. Repeatability: Standard deviation ΔE*ab is within 0.03 (Measurement condition: the average value of 30 measurements on the whiteboard at an interval of 3s after calibration)

11. Inter-Instrument agreement: △E*ab<=0.4, based on avg. of 12 BCRA series II tiles

12. Dimension: 179mm * 64.5mm * 93mm

13. Weight: About 325g

14. Power supply: Rechargeable lithium battery 3.7V@4000mAh, can measure 10,000 times continuously under full charge

15. Display: 480 * 320 dot matrix IPS color screen

16. Language: Simplified Chinese, English

17. Charging port: USB (Type-C)

18. Operating temperature range: 0~45℃, 0~85%RH (no condensation)

19. Storage temperature range: -25~55℃, 0~85%RH (no condensation)

Features

1. D/8 international general lighting method is adopted, which is widely used.

2. Provide spectral reflectance curves from which the user can obtain information on the hue, saturation and shade of the sample color.

3. Support more color formats especially for whiteness and yellowness.

4. Multiple electronic color cards are included to quickly match the nearest color card number.

5. Easy to operate, only two steps to measure the color difference.

6. It can be used with mobile APP and PC software, and supports data import and export.

7. With QC function, it is easy for users to quickly evaluate color accuracy against existing standards. The ΔE value can be set, and the instrument can intelligently judge whether the color difference is passed or not according to ΔE value)

8. Good repeatability, standard deviation ΔE*ab≤0.03

9. Passing authoritative testing by the Metrological Institute.

D/8 illumination geometry

Adopting D/8 international common lighting method, for a wide range of applications.

Provide spectral reflectance curves

Provide spectral reflectance curves from which the user can obtain information on the hue, saturation and shade of the sample color.

Support measurement of whiteness and yellowness

Support more color formats especially for whiteness and yellowness.

Quick matching of color cards

Include multiple electronic color cards to quickly match the nearest color card number.

Easy to operate

Quick color difference comparison with two steps.

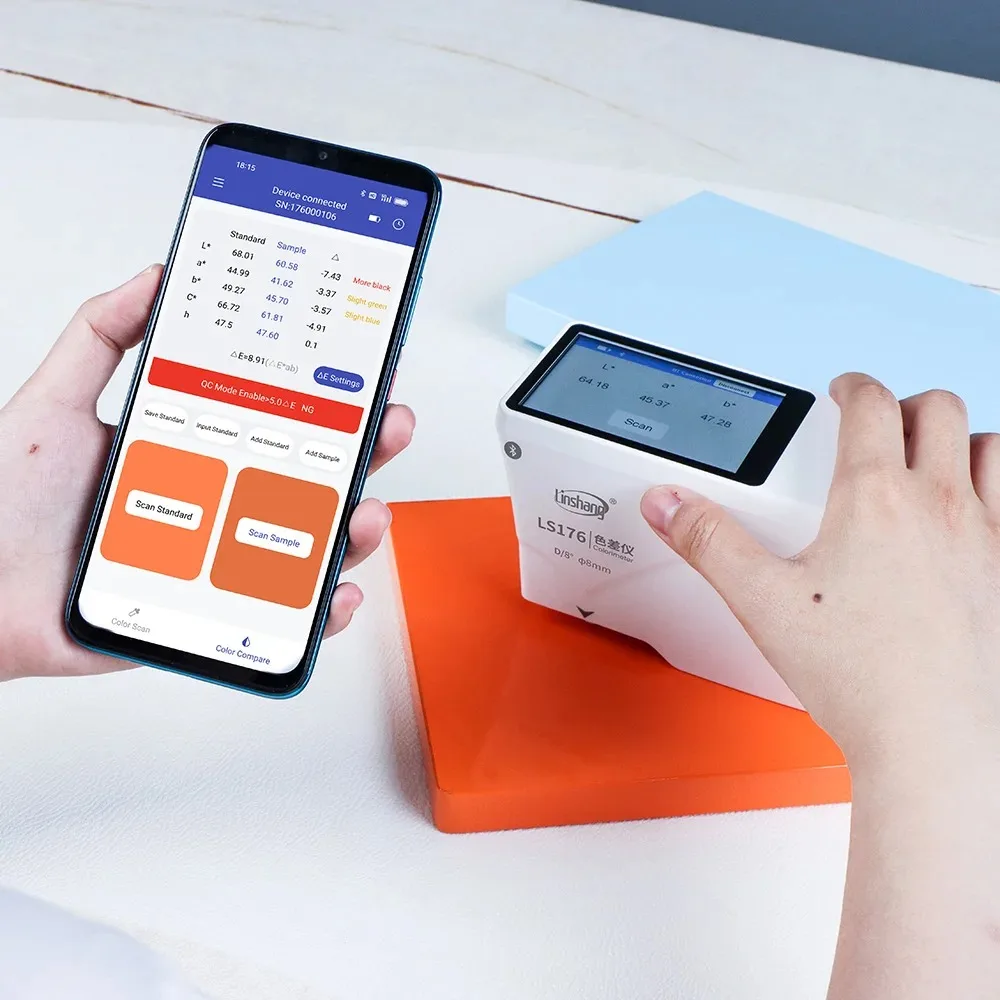

Support mobile APP and PC software

It can be used with mobile APP and PC software, and supports data import and export.

QC function

With QC function, it is easy for users to quickly evaluate color accuracy against existing standards.

3.5-inch touch screen

3.5-inch capacitive touch screen, creating a good HMI interface.

Passing authoritative testing by the Metrological Institute

All indicators meet the requirements of the first-class machine in the Chinese standard JJG 595-2002 “Color Difference Meter Inspection Regulations” measurement and inspection regulations.1. LS176 Colorimeter*1

2. USB data cable*1

3. U disk (software)*1

4. Cleaning cloth*1

5. Locating plate*1

6. User manual*1

7. Certificate / Warranty card*1

Note

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

Please allow 1-2cm measuring deviation due to manual measurement.
