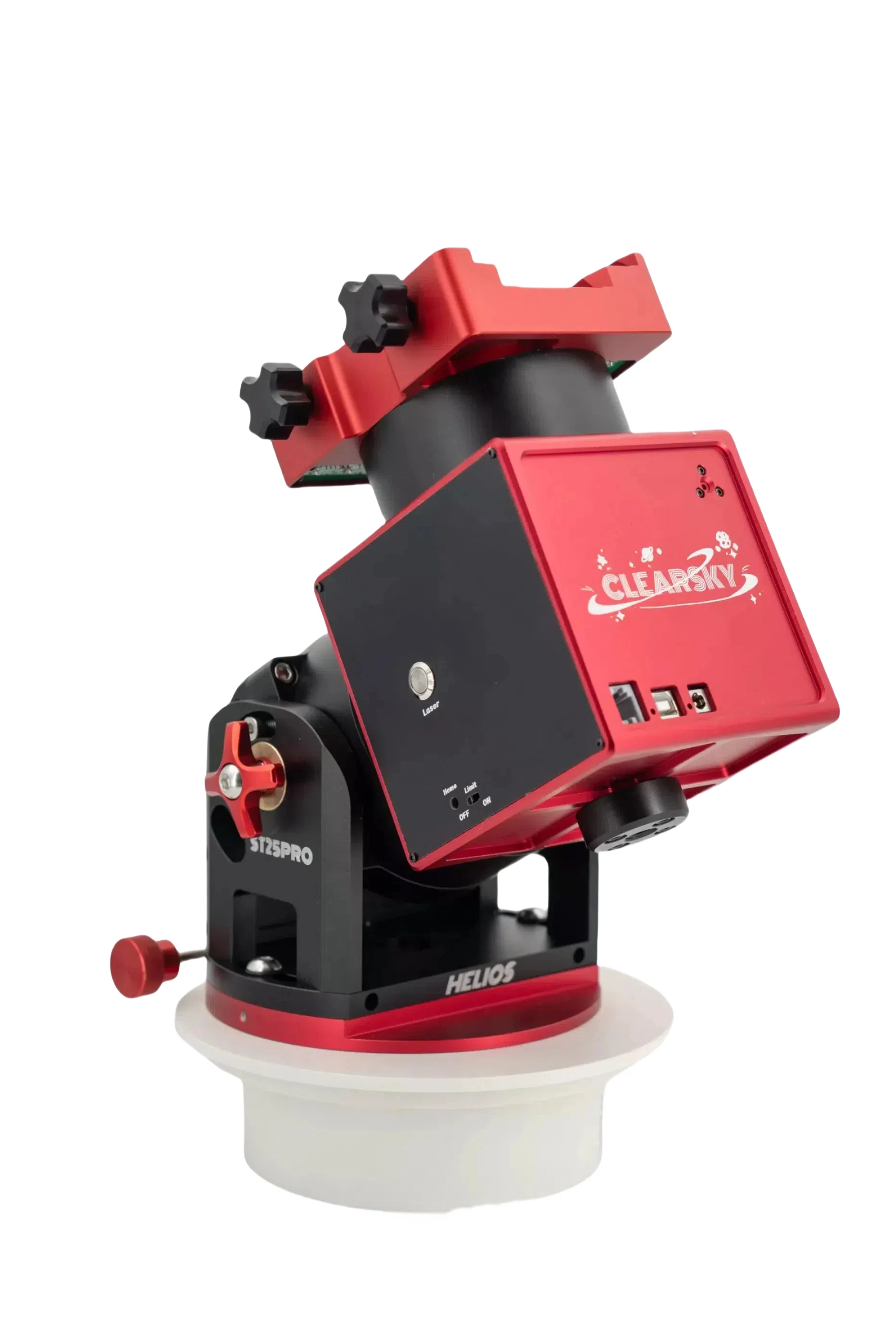

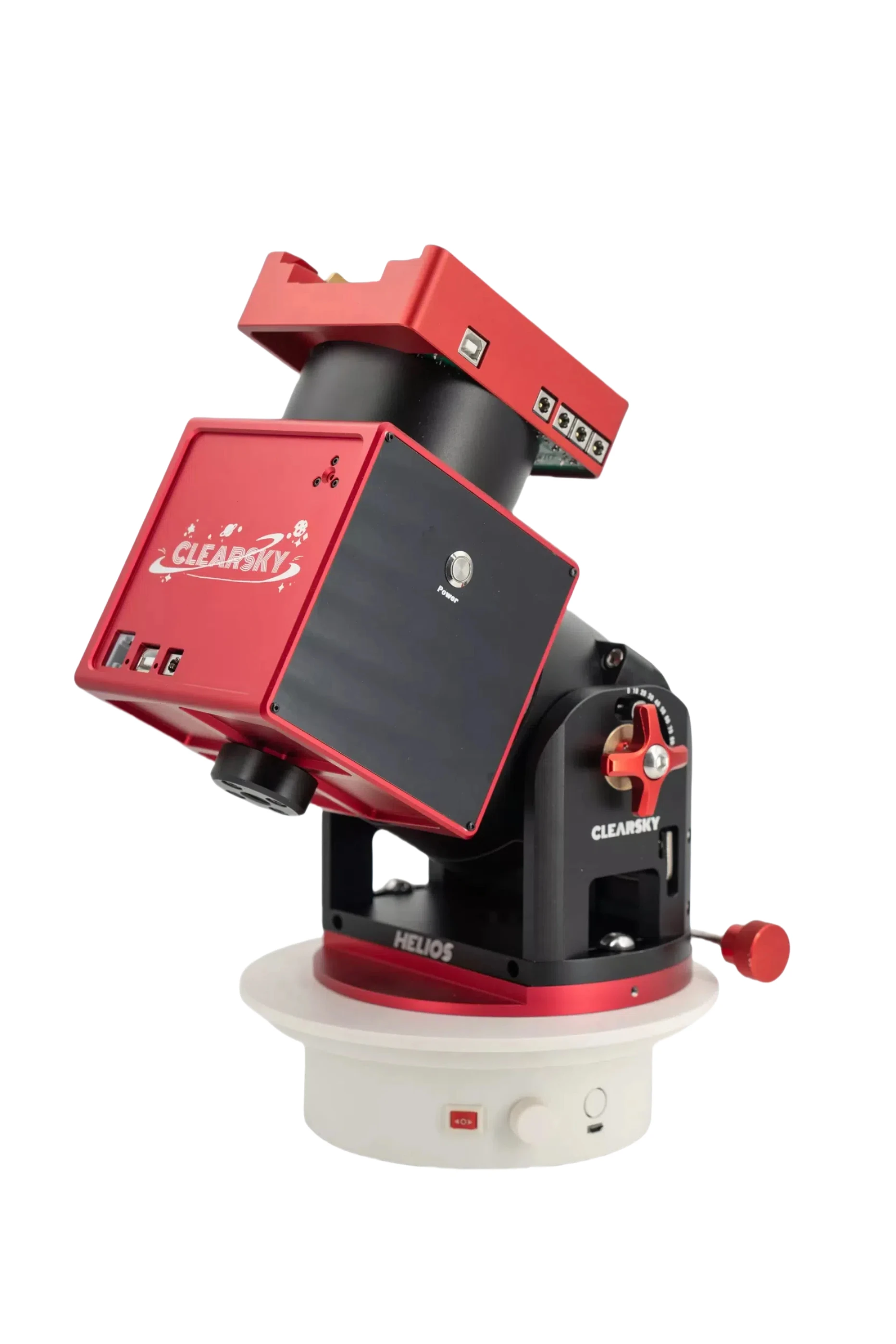

ClearSky ST25 Pro Harmonic Equatorial Mount Theodolite Support Mechanical Home and Patent Mechanical Limit Function

Features:

– All metal body with a total of weight 9kg.

– Laser and power independent switch.

– Patented mechanical limit function.

– Native dual specification dovetail groove, dovetail groove wiring design, integrated power management & data management, eliminates your wiring troubles.

– Mature synchronous belt transmission structure, customized low backlash harmonics, with guaranteed accuracy.

– It can be connected by 3xM6 or 3/8 screws.

Specification:

– Transmission mode: harmonic reducer + timing belt

– Material: anodic oxidation 6061 aluminum

– Right ascension: 42 step motor, 25-type harmonic, 300:1 reduction ratio

– Declination: 42 step motor, 20-type harmonic, 300:1 reduction ratio

– Load: 30 – 35kg

– Main unit weight: 8.5kg

– GOTO speed: 2.5°/s

– Electronic polar lens: iPolar /PoleMaster

– Power input: 12 – 15V/2 – 5A

– Power-off brake: right-ascension declination electronic brake, ≥80N*m

– Zeroing: Mechanical Home

– Limit: mechanical limit

– Communication method: USB, BT, WiFi, ST4

– Control system: for ONSTEP

– Tripod connection: 3/8”, M6, TC40

Package Included:

– 1 x ST25 Pro Equatorial

– 1 x Electronic Polar Lens 3M Sticker

– 1 x 1M Male to Male Power Cable (DC5.5 – 2.1MM)

– 1 x Type-C USB Data Cable

– 1 x Storage Bag

– 1 x User Manual
