Clearsky ST-17R Harmonic Equatorial Mount With Hub-Dovetail Groove for Astronomical Telescope Compatible with Theodolite Mode
- Pre-Order Available (Estimated ±15 Day Delivery)
- 7 day unit replacement guarantee(Video Unboxing Required)
- Including shipping costs, sent by Supplyinx.com
- Pick up at a supplyinx.com collection point is possible
- 24/7Customer service
Description
The Clearsky ST-17R Harmonic Equatorial Mount is a high-precision mount designed primarily for astronomical telescopes, featuring a harmonic drive system that offers ultra-smooth and silent motion for precise tracking of celestial objects. The mount’s hub-dovetail groove allows for quick and secure attachment of various telescope models, while also making it adaptable for surveying instruments when used in theodolite mode.
With its equatorial design, the ST-17R compensates for the Earth’s rotation, enabling accurate tracking and alignment during extended observation periods. The harmonic drive system ensures that the mount is stable and precise, making it perfect for both astronomical observations and surveying tasks that require high precision. The hub-dovetail groove provides compatibility with various mounting accessories and instruments.
Key Features
-
Harmonic Equatorial Mount: Features a harmonic drive for precise tracking and smooth movement during astronomical observations and surveying tasks
-
Hub-Dovetail Groove: Provides secure and stable attachment for telescopes and surveying instruments, offering quick mounting and easy adjustments
-
Compatible with Theodolite Mode: Allows for use with theodolites for high-precision surveying and geodetic applications, providing accurate alignment and stable readings
-
Stable and Accurate: Ensures precise tracking of both celestial objects and surveying targets, ideal for long-duration operations
-
Universal Compatibility: Can be adapted for use with a wide range of telescopes, surveying instruments, and mounting accessories
-
Durable Construction: Built from high-quality materials for long-lasting durability in both astronomical and surveying environments
-
Portable Design: Compact and easy to transport, perfect for both fieldwork and stationary observations
-
Stable Mounting: Provides a secure base for instruments, ensuring precise alignment and consistent results in both surveying and astronomical settings
Applications
-
Astronomical Observation for stargazing, planet tracking, and celestial object studies
-
Surveying for high-precision measurements, alignment, and site layout
-
Geodesy for coordinate system establishment, geospatial data collection, and precise positioning
-
Engineering for construction surveying, site mapping, and boundary marking
-
Land Surveying for topographic mapping, land subdivision, and site development
Summary
The Clearsky ST-17R Harmonic Equatorial Mount with Hub-Dovetail Groove offers precise and stable support for astronomical telescopes and surveying instruments. Its harmonic drive system ensures smooth motion for accurate tracking during observations, while the hub-dovetail groove allows for secure mounting of various instruments, making it compatible with both telescopes and theodolites in surveying mode. This mount is perfect for astronomical observations, surveying applications, and high-precision tasks, providing reliable performance in field conditions and stationary environments.
CLEARSKY ST-17R Harmonic Equatorial Mount with HUB-Narrow/Wide Dovetail Groove for Astronomical Telescope Compatible with Theodolite Mode
Video guide and manual, please contact customer service, I will send them to you
Advantage:
– There are equatorial instrument data ports and DC output ports on the dove tail groove
– Patented mechanical limit function to protect your equipment
– Mechanical Home with sensor, automatically reset to Home when turned on
– Azimuth self-locking base, no need for additional locking

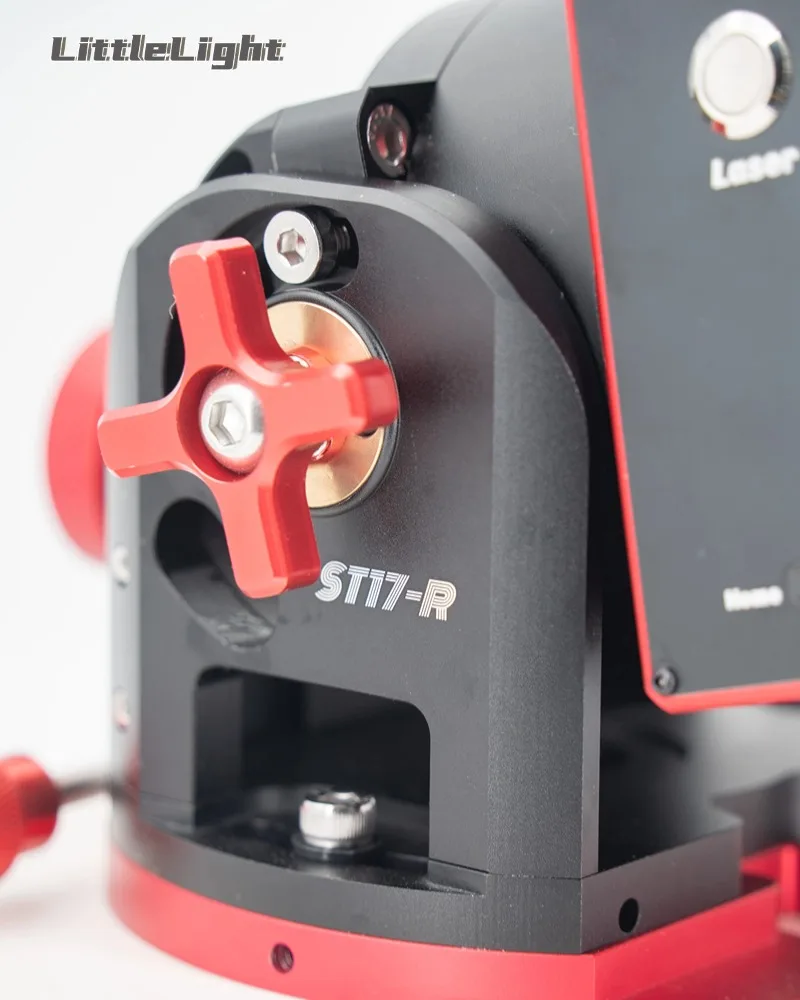

– The latitude angle can be locked with up to four screws, and the polar axis is stable like a mountain
– Comes with a base, no need for additional installation steps
– Compatible with HEQ5/EQ3D/EXOS2 tripod, TC40, 3/8-inch tripod,WA-40,high applicability
– Super load: 13kg without cw /20kg with cw (not included)
– Multi functional: equatorial and theodolite
– Handle + APP control: WiFi control, real-time star map
– Precision control: harmonic reducer + synchronous belt
– Lightweight design: no heavy hammer, body structure
– Equipped with an onstep system, supporting computer /phone /for ZWO box /for nina /WiFi /Bluetooth /Handle control, etc.
Specification:
– Product name: Clearsky ST-17R harmonic equatorial mount
– Mode: equatorial mount/theodolite
– Matched onstep system: support computer /phone /for ZWO box /for nina /WiFi /Bluetooth /Handle control, etc.
– Equatorial mount net weight: 5.1kg
– Without hammer load: 13kg
– Transmission mode: harmonic + reduction wheel
– Reducer: 17&17 harmonic reducer
– Reduction ratio: 300:1
– Motor: 42 stepper motor
– Chassis specifications: EQ3D/EXOS2/HEQ5 TRIPOD;TC40;3/8 INCH Tripods;WA-40
– Latitude adjustment range: 0 – 90 degrees
– Direction adjustment range: 30°
– Heavy hammer rod interface thread: M12 (diameter)
– Power supply voltage: DC12-15V
– Data interface: USB2.0/WiFi
– Guide star interface: handle and ST4
– Automatic zero position: Mechanical zero position with sensor
Package Included:
– 1 x Clearsky Equatorial Mount
– 1 x Data Cable
– 1 x DC power cable
– 1 x 3M Polar Electronic Camera Stickers
– 1 x Clearky Brand Stickers
– 1 x Clearsky Mount User Manual
– 1 x Clearsky Mount Periodic Test Report
– 1 x Clearsky Mount Quality Inspection Checklist
– 1 x Clearsky Shockproof handbag
