CBN Insert WNGA080408 WNMG080408 PCBN CNC Lathe Turning Tools

Rp488.410 – Rp30.084.900Price range: Rp488.410 through Rp30.084.900
In Stock
Order on WhatsApp
Add to wishlist
  • Pre-Order Available (Estimated ±15 Day Delivery)
  • 7 day unit replacement guarantee(Video Unboxing Required)
  • Including shipping costs, sent by Supplyinx.com
  • Pick up at a supplyinx.com collection point is possible
  • 24/7Customer service
SKU: 32820976506
Categories: ,
Tag:

Description

  • Certification: None
  • Hardness: High
  • Origin: Mainland China
  • Model Number: WNMG080408
  • Brand Name: EDGEV
  • Material: Boron Nitride
  • Coating: Other
  • Use: External Turning Tool
  • Place of Origin: China
  • ISO Description_04: WNGA080404 S01020
  • ISO Description_08: WNGA080408 S02020
  • ISO Description_12: WNGA080412 S02020
  • Grade_ESBN230: Hardened Steel HRC45~63
  • Grade_ESBN530: Cast Iron
  • Availabe Machines: CNC Lathe
  • Application Range: For Finishing and Semi-finishing
  • WNGA080404: WNGA431
  • WNGA080408: WNGA432
  • Cutting Tips: 6 Corners
  • Package: Germany Rose Pastic
  • is_customized: Yes


Products Parameters:

01. Brand Name: EDGEV

02. Description:CBN Inserts

03. ISO Specification:

WNGA080404(WNMG080404)WNGA431 S01020

WNGA080408(WNMG080408)WNGA432 S02020

WNGA080412(WNMG080412)WNGA433 S02020

04. Material:Cubic Boron Nitride

05. Grade:

ESBN230 for machining Hardended Steel/H

ESBN530 for machining Cast Iron/k

06. Features: Excellentwear resistanceand excellent impact and shock resistance

07. Application: Suitable for continuous and interrupted turning and milling with high cutting speed of alloy steel,hardened steeland bearing steel and cast iron.

08. Work Piece Hardness:HRC45~65

09. Suitable Work Piece:Break disc, Belt pulley, Gear,Bear,Metallurgical roll, Pump, Mining machinery, Brake drum, Brake disc, Metallurgicalroll, Big gear, Slewing bearing industry, Gearing industry,bearing industry

10. Application Range: FromFinishing to Semi-finishing

11. Mini Order:2 Pieces

12. Net Weight: 12g/Piece

EDGEV CBN Inserts:

EDGEV Solid CBN is polycrystalline cubic boron nitride; Solid CBN is made from HBN sintered under the process of supper high temperature and supper high press, the hardness approach the PCD cutting tools. these are chemistry and hot stability and high wear resistant than others cutting tool.

Advantages

1. Good wear resistance for high speed cutting of Hardened steel and grey cast iron.

2. Achieves superior economic efficiency in the machining of hardened materials.

3.Honing cutting edge by high precision grinding machinesSwitzerlandAGATHON and high quality grinding wheel.

Application

1. Roughing and finishing of Cast Iron, Hardened steel(HRC45~ HRC 65),Used be for Mould, Rolls and Auto Industries

2. Longer Tool Life and High Speed Machining

Our CBN Grades:

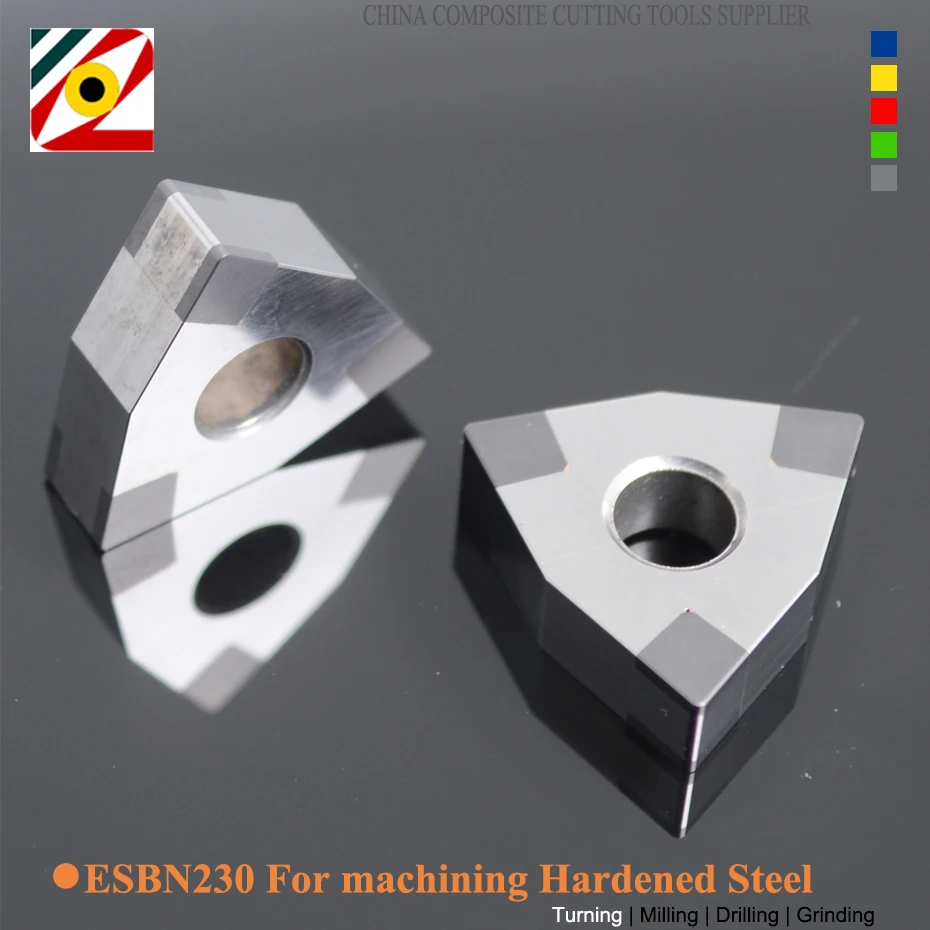

1. ESBN230:60% CBN Content, Excellent wear resistance, suitable for high speed cutting continuous of hardened steel, alloy material. Precision processing of hardened bearings

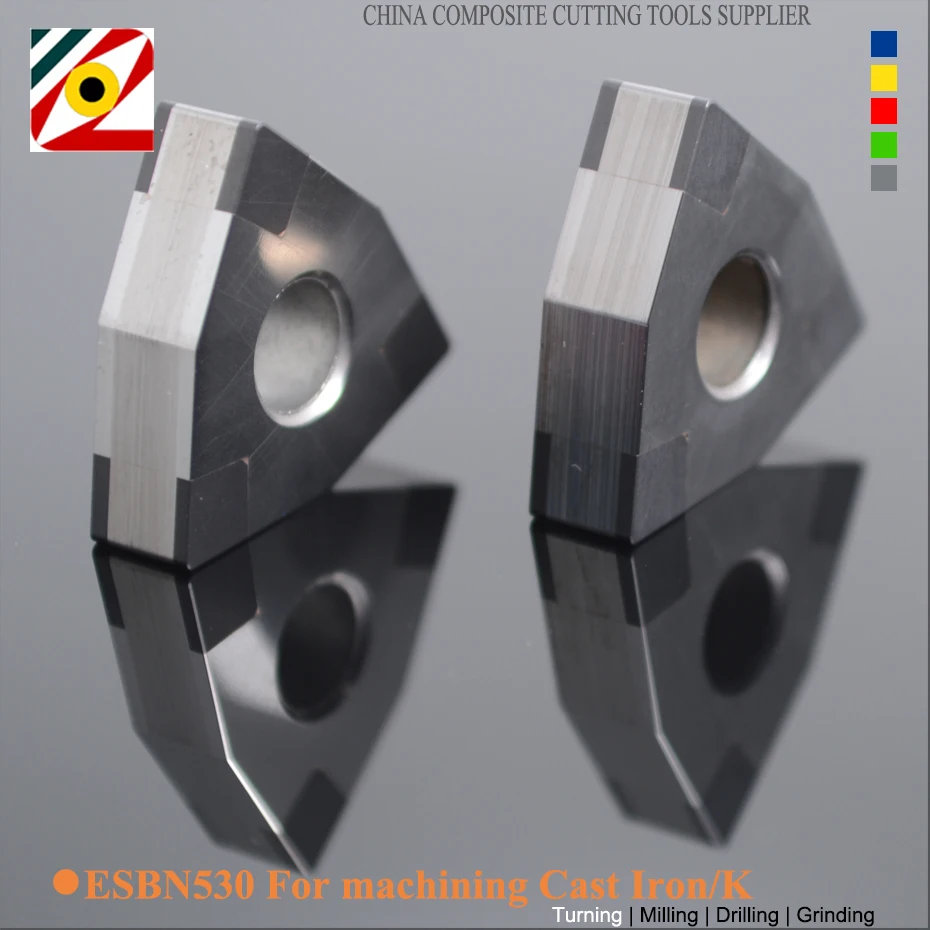

3. ESBN530:90% CBN Content, High Wear resistance, impact resistance. Apply to the high-speed cutting of the gray cast-iron, Nodular cast iron work pieces.

How to Identify Edge Preparation?

1. Symbol: F, That means is Sharper Edge, applied for finishing

2. Symbol: T, That means is Chamfered Edge, applied for finishing to semi-finishing, for example:T00520(0.05mm*20 degree)

3. Symbol: S,That means is Chamfered and honed Edge, applied for roughing to semi-finishing, for example:S01020(0.1mm*20 degree)



Products Showing
