5.5KW 7.5KW BT30 ATC Water Cooling Spindle Motor Automatic Tool change Spindle Pneumatic 220V 380V For Engraving Milling Metal

5.5KW 7.5KW BT30 ATC Water Cooling Spindle Motor Automatic Tool change Spindle Pneumatic 220V 380V For Engraving Milling Metal

Rp49.737.580 – Rp56.427.930
In Stock
Order on WhatsApp
Add to wishlist
  • Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
  • Including shipping costs, sent by Supplyinx.com
  • Pick up at a supplyinx.com collection point is possible
  • 30 days to change your mind and free returns
  • Day and night customer service
SKU: 1005008378753509
Categories: ,
Tag:

Description

  • Hign-concerned Chemical: None
  • Certification: CE
  • Origin: Mainland China
  • Drive: MOTOR
  • Application: Milling

Packing List

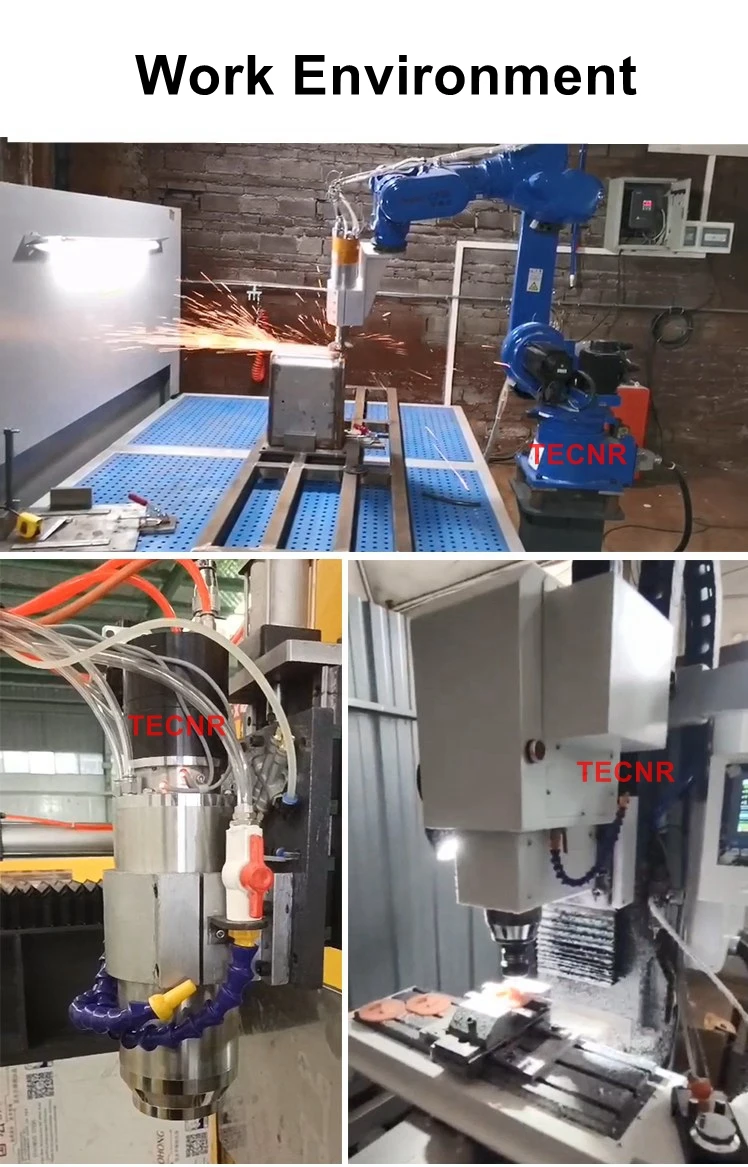

Application area

This series of power heads is mainly suitable for drilling, boring and other work occasions


Advantage

(1) Higher precision, better stability and smoother operation.

(2) Adopting Japanese technology, double waterproof design structure, isolating cutting fluid and dust
in production and processing, ensuring the good condition of the spindle head in actual work.
( Waterproof function is only available on some models)

(3) The main shaft housing is cast in high-tough cast iron. After manual and natural double aging treatment,
it is wear-resistant and not easily deformed.


Specification



This Spindle clamp chuck can use BT30 ,but also can use NBT30.



If you need 8 pole spindle ,1200HZ frequency spindle, the same price.


Spindle Specification


Model

LST-125/5.5R2.4-30

LST-125/7.5R2.4-30

Power(kw)

5.5

7.5

Speed range(r/min)

18000/24000

18000/24000

Rate of voltage(V)

220/380

220/380

Current(A)

18/13

18/13

Rated/max frequency(Hz)

MAX800

MAX800

Pole N

4 or 8

4 or 8

Tool change mode

Pneumatic

Pneumatic

Nose interface

BT30

BT30

Bearings

Front2 back2

Front2 back2


BEST VFD Specification :

FULING VFD Specification :


Power : 5.5KW

Brand name: FULING

Model : DZB612

Input Voltage: 220V

Output Voltage :220V

Input Frequency: 50-60 Hz

Output Frequency: 0-1000 Hz

Input Phase: 3phase

Output Phase: 3 phase

Output currency:23A

Power : 5.5KW

Brand name: FULING

Model : BD613

Input Voltage: 380V

Output Voltage :380V

Input Frequency: 50/60 Hz

Output Frequency: 0-3000 Hz

Input Phase: 3phase

Output Phase: 3 phase

Output currency:13A

Brand : FULING

1) Input Voltage: 380V

2) Output Voltage 380V AC (analogous to Input Voltage)

3) Input Frequency: 50/60 Hz

4) Output Frequency:3000 Hz

5) Input Phase: 3phase

6) Output Phase: 3 phase

7) Warranty: 1 year

8) Output currency: 18A

9) Power : 7.5KW





–

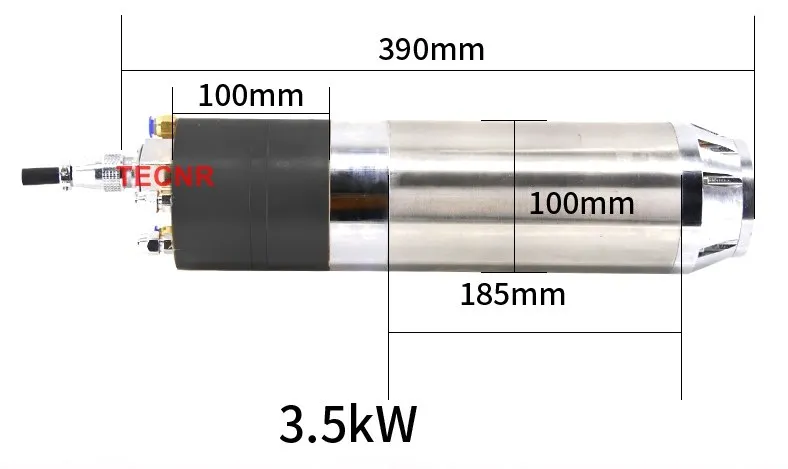

ATC spindle all series Specification

Clamp

Power

Motor Diameter

Motor Speed

Grade/Pole

Cool Type

Link

BT30

3kw

100

3000-18000

4 pole

Water cool

Link

3kw

3000-24000

4 pole

3kw

1500-18000

8 pole

3.5kw

3000-18000

4 pole

Link

3.5kw

3000-24000

4 pole

3.5kw

1500-18000

8 pole

5.5kw

125

3000-18000

4 pole

Link

5.5kw

3000-24000

4 pole

5.5kw

1500-18000

8 pole

7.5kw

3000-18000

4 pole

Link

7.5kw

3000-24000

4 pole

7.5kw

1500-18000

8 pole

3kw with Flange

100

3000-18000

4 pole

Link

3kw with Flange

3000-24000

4 pole

3kw with Flange

1500-18000

8 pole

3.5kw with Flange

3000-18000

4 pole

Link

3.5kw with Flange

3000-24000

4 pole

3.5kw with Flange

1500-18000

8 pole

BT40

7.5kw

150

1500-12000

8 pole

Link

11kw

1500-12000

8 pole

Link
