2500m Best Seller Wholesale 905nm Class I Eye Safe LRF Monocular Rangefinder Module for Hunting Surveying Mapping Golf
Rp12.859.752
In Stock
This product has been added to 1 people'scarts.
In Stock
- Pre-Order Available (Estimated ±15 Day Delivery)
- 7 day unit replacement guarantee(Video Unboxing Required)
- Including shipping costs, sent by Supplyinx.com
- Pick up at a supplyinx.com collection point is possible
- 24/7Customer service
Description
- Hign-concerned Chemical: None
- DIY Supplies: Electrical
- Brand Name: LanYuXuan
- Origin: Mainland China
- Certification: CE
- Series: Pulse long range laser distance sensor
- Mounting Type: Manual Installation, Handheld
- Description: Serial RXTX Laser distance sensor
- Model Number: PTFG-2500-J240827
- Place of Origin: Sichuan, China
- Brand Name: Meskernel
- Use: Measuring distance between objects
- Theory: Pulse laser distance sensor
- Output: Digital output
- Brand: Laser distance sensor
- Amplifier Type: 6X
- Voltage – Supply: DC 3.3V~5V
- Output Type: TTL
- Current – Supply: 330mW
- Operating Temperature: 0~50℃
- Resolution (Bits): 1m
- Features: long range laser sensor, Small Size, High Precision, High Stability
- Current – Supply (Max): 750mw at 3.3V
- Frequency: 1~3HZ, 1-3Hz
- Output Configuration: TTL
- Current: 750mW
- Voltage Rating: 3.3V
- Operating Force: /
- Oxygen Range: /
- Humidity Range: -20-40℃
- Size: pulse laser ranging sensor
- Size / Dimension: 92*54*33.1mm (L*W*H)
- Measuring Range: 5~2500m
- Resolution: 1m
- Interface: TTL, UART, RS232, RS485
- Technology: pulse
- Sensing Range: 5~2500m
- Current – Output (Max): 750mA
- Bandwidth: /
- Function: Measuring object distance
- Acceleration Range: /
- Sensitivity (mV/g): /
- Sensitivity (LSB/(°/s)): /
- Sensitivity (mV/°/s): /
- Sensing Distance: 2500m
- Current – Output: 750mA
- Voltage – Output Difference (Typ) @ Dist: /
- Voltage – Max: 5V
- Power – Max: /
- Sensing Object: 2500m
- Sensing Light: /
- Resistance: /
- Resistance Tolerance: /
- Sensing Temperature – Local: /
- Sensing Temperature – Remote: /
- Current Rating – AC: 330mw
- Current Rating – DC: /
- Tolerance: /
- Voltage – Rated: 3.3V
- Flow Sensor Type: /
- Voltage – Input: 3.3V
- Application: golf laser rangefinder module
- Output Function: TTL
- D/C: 3.3v
- Cross Reference: /
- Range: 5-2500m
- Accuracy: ±1m
- Laser Type: 905nm, Invisible
- Laser Class: Class I (IEC 60825-1:2014), <0.4mw
- Measurement Method: Pulse principle
- Input Voltage: DC 3.3V~5V
- Weight: 66g
- Certification: CE / FCC / RoHS / FDA
welcome to our store! Please confirm the product model, cost and shipping method with me before purchasing the product! If you have any questions, please add my WHATS APP (+86 176 736 22604)
This laser ranging sensor can be used for road measurement detection and indoor humanoid detection, which is more private than the
camera
It can be combined on the UAV for high-altitude long-range accurate ranging, and different frequencies can be customized for
different application scenarios.
Our range sensors can be combined with night vision and thermal imagers to accurately measure the distance of objects at night.
Vehicle Anti-Collision
Compared with ultrasonic sensors, our laser ranging sensors can achieve ultra-long distance measurement and achieve collision
avoidance of vehicles.
Products Description

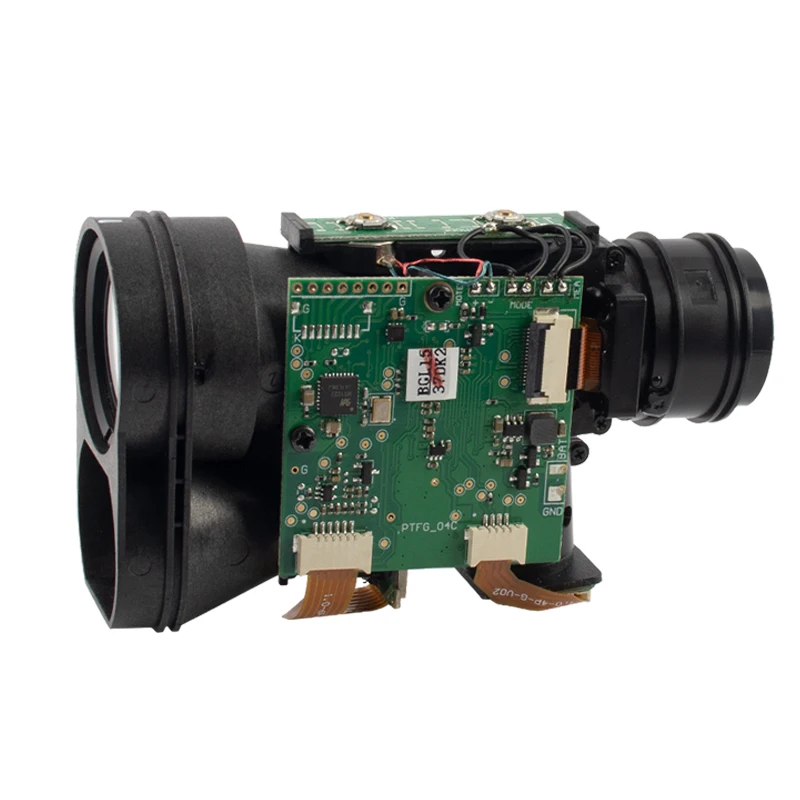

PTFG Laser Rangefinder Module
PTFG telescope pulse laser rangefinder module is a kind of outdoor golf rangefinder module, which is characterized by high accuracy, fast measurement, multi-functional application, high reliability and easy integration. The module uses pulsed laser technology to accurately measure the distance between the target object and the rangefinder.
Product Parameters
|
Measuring Range
|
5~1500/2000/2500/3000m
|
|
Accuracy
|
+/-1m
|
|
Frequency
|
3Hz
|
|
Resolution
|
0.1m
|
|
Power Consumption
|
|
|
Laser Type
|
905nm, Class 1
|
|

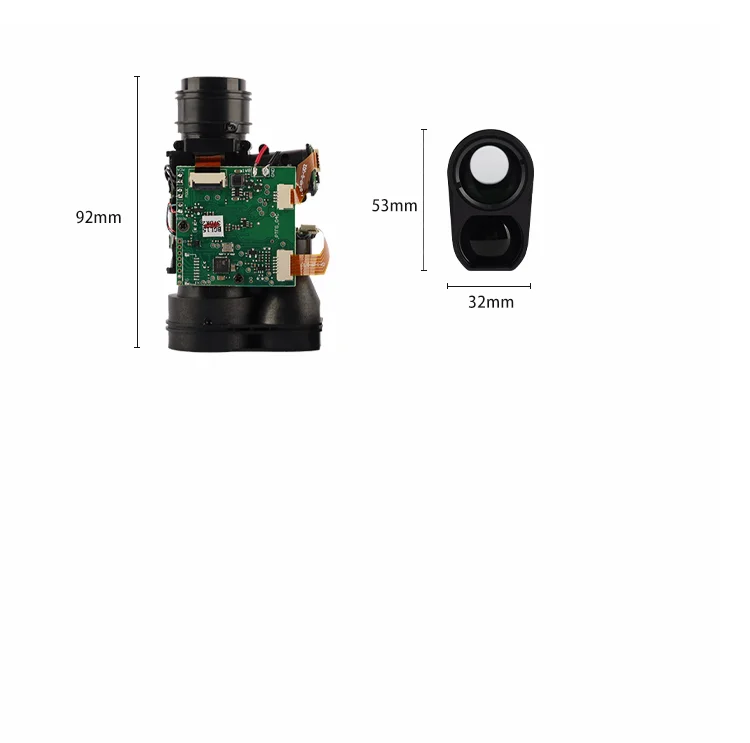

Size
|
92*54*33mm
|
|
Weight
|
66g
|
|
Operating Temperature
|
-10~45鈩�
|
|
Interface
|
TTL/RS485/RS232
|
Features of the Pulsed Laser Ranging Module锛歕r 1. Highly accurate ranging: the furthest one can do 3000 meters. 2. Fast Measurement: adopts pulsed laser technology for fast response speed. 3. Multi-functional application: suitable for golf, shooting, bird watching and other outdoor scenes. 4. High reliability: made of durable materials, adaptable to various complex outdoor environments. 5. Easy to integrate: small size and light weight, can be easily integrated into other devices.

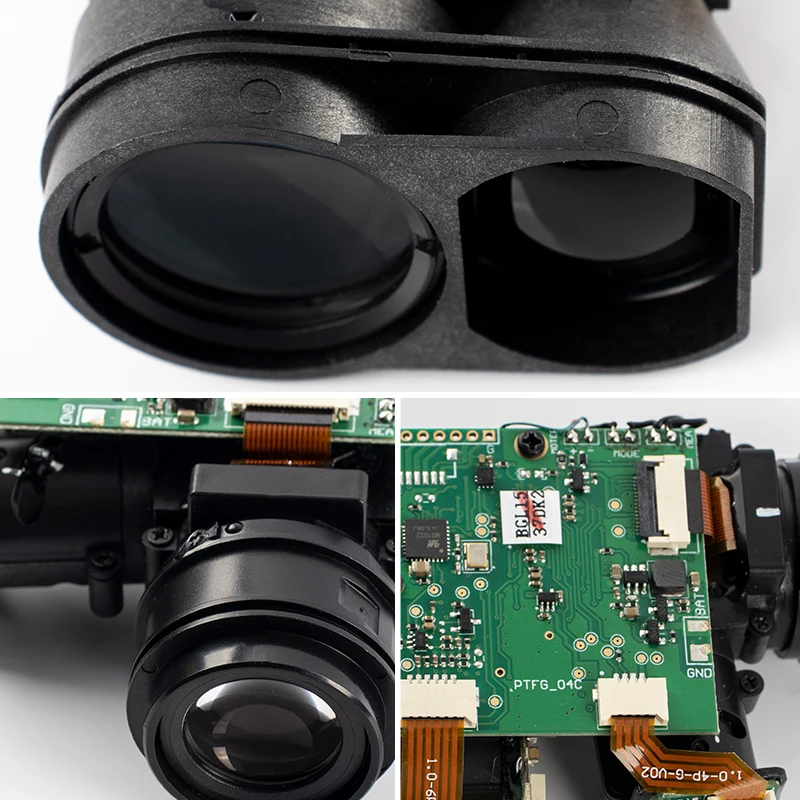

Product Details

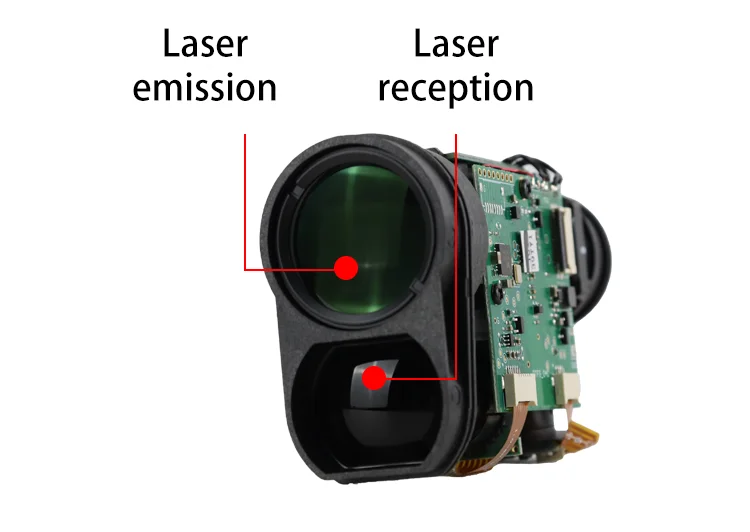

Laser Emisson And Reception
Communication Interface
LDK Laser Distance Measuring Sensor supports USB, TTL, RS232, RS485, Bluetooth and other communication interfaces, supports arduino, raspberry pi and other external devices.
Test Software Platform
We have our own software testing tools, which are transmitted to the computer through distance measurement.
Application
Person and vehicle monitoring
This laser ranging sensor can be used for road measurement detection and indoor humanoid detection, which is more private than the
camera
UAV Distance Measurement
It can be combined on the UAV for high-altitude long-range accurate ranging, and different frequencies can be customized for
different application scenarios.
See-In-Dark Rangefinder
Our range sensors can be combined with night vision and thermal imagers to accurately measure the distance of objects at night.
Vehicle Anti-Collision
Compared with ultrasonic sensors, our laser ranging sensors can achieve ultra-long distance measurement and achieve collision
avoidance of vehicles.
