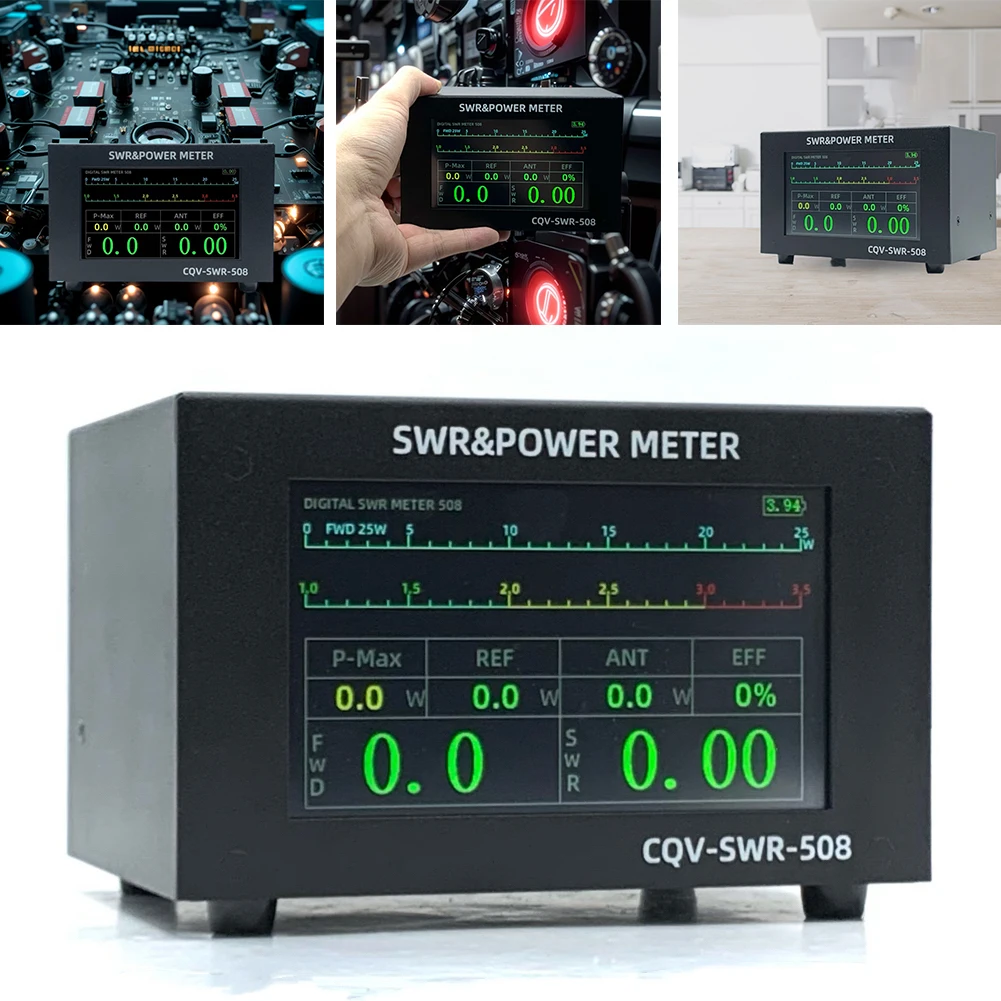

120W Digital Power Standing Wave Meter High Standing Wave Alarm 1.8-54Mhz SWR & Power Meter 4.3in IPS Touchscreen

Deskripsi Produk

120W Digital Power Standing Wave Meter adalah alat ukur modern untuk memantau daya dan rasio gelombang berdiri (SWR) pada perangkat komunikasi RF. Dengan rentang frekuensi 1.8–54 MHz dan daya hingga 120W, perangkat ini sangat cocok digunakan pada sistem radio amatir maupun profesional. Layar IPS touchscreen 4.3 inci memberikan tampilan data yang jernih serta memudahkan pengoperasian. Didukung Type-C DC 5V/1A charging, perangkat ini lebih praktis dan efisien untuk penggunaan sehari-hari.

Spesifikasi Teknis

• Daya maksimum: 120W

• Rentang frekuensi: 1.8 – 54 MHz (HF band)

• Fungsi utama: pengukuran daya dan Standing Wave Ratio (SWR)

• Layar: IPS 4.3 inci, touchscreen full color

• Alarm: High Standing Wave Alarm untuk perlindungan perangkat

• Port pengisian: USB Type-C, DC 5V/1A

• Input/output RF: standar (SO-239/N-type, tergantung model)

• Akurasi: tinggi dengan respon cepat

• Desain: portabel dengan housing kokoh

• Konsumsi daya: rendah, efisien untuk pemakaian berkelanjutan

Aplikasi

Perangkat ini dapat digunakan untuk:

• Radio amatir (HAM Radio) dalam monitoring daya dan SWR.

• Tuning antena untuk efisiensi transmisi.

• Stasiun komunikasi short wave dan HF band.

• Laboratorium elektronik untuk pengujian RF.

• Perlindungan peralatan komunikasi dari mismatch daya.

120W Digital Power Standing Wave Meter High Standing Wave Alarm 1.8-54Mhz Short Wave Standing Wave Meter 4.3in IPS Touchscreen Type C DC5V/1A Charging UHF Interface Feature: 1. Accurate Reflection of Signal Strength: Get precise feedback on your radio equipment’s performance with the 200W digital power standing wave meter. It’s designed for detailed monitoring of forward and reverse power, as well as SWR, ensuring you’re always aware of your equipment’s efficiency. 2. Vivid Readout Experience: The SWR & power meter boasts a 4.3-inch IPS color display, providing a high-resolution view (480×272) of your readings. Its clear, bright screen makes data interpretation effortless and precise. 3. SWR Alert Sophistication: The short wave standing wave meter comes with an advanced alarm system for SWR monitoring. Set personalized alerts to notify you when SWR values breach your pre-set limits, maintaining your equipment at its most effective. 4. Streamlined Power Utilization: This power SWR measuring meter simplifies energy usage with its intelligent power management options. Delayed shutdown, auto power-on during transmission, and battery undervoltage protection are all at your fingertips for efficient operation. 5. SWR & Power Fine-Tuning Mastery: Achieve the pinnacle of performance with the standing wave ratio meter’s precise adjustment features. Refine your equipment’s power and SWR by up to ±20%, allowing you to dial in the exact settings needed for operation. Specification: Certification: CE Origin: Mainland China DIY Supplies: ELECTRICAL Working frequency: 1.8-54Mhz Measuring range: 0.5-200W (in FM, CW, AM, FT8 mode, it is recommended not to exceed 120W for long-term use) Standing wave range: 1-99.9 (the default standing wave will alarm if it is greater than 2.0, and the alarm point can be set through the menu) Charging interface: Type-C DC5V/1A (charging voltage max5.5V) Battery model: 3.7V/4000mAh (when the battery voltage is lower than 3.4v, the alarm will flash and when the battery voltage is lower than 3.35V, it will automatically shut down) Interface type: UHF (SL16) Shell material: ABS Product size: about 132.00×100.00×82.00mm Product size: 5.2×3.94×3.23inch Note: Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! Please allow 1-2cm measuring deviation due to manual measurement.     1 x Digital Power Standing Wave Meter
